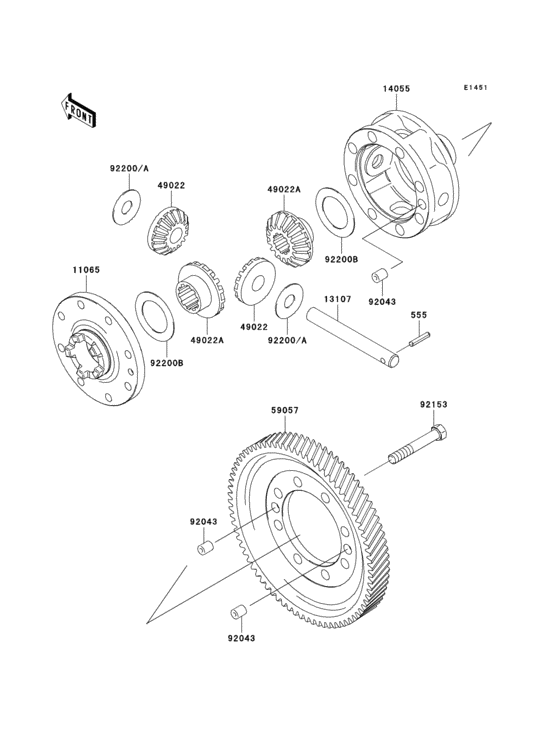

Differential Diagram Kawasaki KAF620 Mule 3010 Trans 4X4
- Model code
- KAF620J7F
- Engine Capacity
- 620
- Year
- 2007
- Sales region
- Canada
- Colour
- Aztec Red (467)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Trans 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
555
|
555
555A0525 PIN-SPRING |
555A0525 |
from US $1.56 |
||
|
11065
|
11065
11065-0033 CAP,GEAR CASE |
11065-0033 |
from US $76.98 |
||
|
13107
|
13107
13107-0009 SHAFT |
13107-0009 |
from US $20.38 |
||
| replacement | |||||
|
13107
|
13107
13107-0922 Shaft |
13107-0922 |
US $40.29 |
||
|
14055
|
14055
14055-0003 CASE-GEAR,DIFFERENTIA |
14055-0003 |
from US $524.10 |
||
|
49022
|
49022
49022-1105 GEAR-BEVEL,10T |
49022-1105 |
from US $61.75 |
||
|
49022A
|
49022A
49022-1117 GEAR-BEVEL,16T |
49022-1117 |
from US $117.42 |
||
|
59057
|
59057
59057-0002 GEAR-HELICAL,DIFFEREN |
59057-0002 |
from US $137.48 |
||
|
92043
|
92043
92043-0029 PIN,10X12 |
92043-0029 |
from US $3.27 |
||
|
92153
|
92153
92153-0331 BOLT,10X63 |
92153-0331 |
from US $2.95 |
||
|
92200
|
92200
92200-0021 WASHER,14.5X38X1.2 |
92200-0021 |
from US $2.95 |
||
|
92200A
|
92200A
92200-1044 WASHER,14.5X38X1.0 |
92200-1044 |
from US $5.13 |
||
|
92200B
|
92200B
92200-1045 WASHER,35.5X54X1.0 |
92200-1045 |
from US $7.46 |
||
