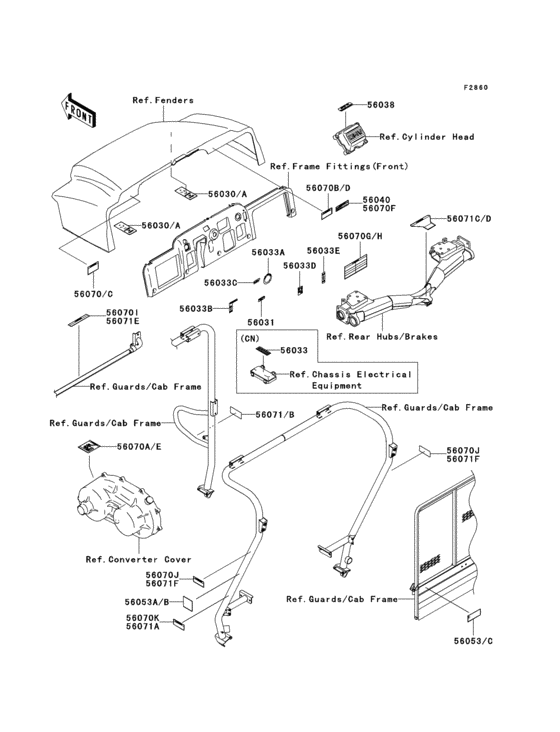

Labels(1/2) Diagram Kawasaki KAF620 Mule 3010 Trans 4X4
- Model code
- KAF620J7F
- Engine Capacity
- 620
- Year
- 2007
- Sales region
- Canada
- Colour
- Aztec Red (467)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Trans 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56030
|
56030
56030-1240 LABEL |
56030-1240 |
from US $4.51 |
||
|
56030A
|
56030A
56030-1246 Label,bonnet operation |
56030-1246 |
US $3.57 |
||
|
56031
|
56031
56031-1818 LABEL-MANUAL,BRAKE FL |
56031-1818 |
from US $4.20 |
||
|
56033
|
56033
56033-0020
Label-manual,fuse
|
56033-0020 |
— | ||
|
56033A
|
56033A
56033-0162 LABEL-MANUAL,IGNITION |
56033-0162 |
US $5.59 |
||
|
56033B
|
56033B
56033-1183 LABEL-MANUAL,DIFF MOD |
56033-1183 |
from US $3.27 |
||
|
56033C
|
56033C
56033-1184 LABEL-MANUAL,IGNITION |
56033-1184 |
from US $3.57 |
||
|
56033D
|
56033D
56033-1186 LABEL-MANUAL,SHIFT |
56033-1186 |
from US $3.27 |
||
|
56033E
|
56033E
56033-1187 LABEL-MANUAL,2WD/4WD |
56033-1187 |
from US $3.27 |
||
|
56038
|
56038
56038-2782 LABEL-BRAND |
56038-2782 |
from US $1.71 |
||
|
56040
|
56040
56040-1342 LABEL-WARNING,SHIFT C |
56040-1342 |
from US $8.09 |
||
|
56053
|
56053
56053-7504 LABEL-SPECIFICATION,C |
56053-7504 |
US $7.27 |
||
| replacement | |||||
|
56053
|
56053
56053-7529 LABEL-SPECIFICATION,C |
56053-7529 |
US $7.27 |
||
|
56053A
|
56053A
56053-7505 LABEL-SPECIFICATION,T |
56053-7505 |
US $5.72 |
||
| replacement | |||||
|
56053A
|
56053A
56053-7530 LABEL-SPECIFICATION,T |
56053-7530 |
US $9.27 |
||
|
56053B
|
56053B
56053-7506 New Genuine Part |
56053-7506 |
US $4.43 |
||
| replacement | |||||
|
56053B
|
56053B
56053-7534 LABEL-SPECIFICATION,T |
56053-7534 |
US $9.27 |
||
|
56053C
|
56053C
56053-7528 LABEL-SPECIFICATION,C |
56053-7528 |
US $7.27 |
||
|
56070
|
56070
56070-0050 LABEL-WARNING,OFF-HIG |
56070-0050 |
US $4.18 |
||
|
56070A
|
56070A
56070-0051 LABEL-WARNING,HOT SUR |
56070-0051 |
US $6.82 |
||
|
56070B
|
56070B
56070-0053 LABEL-WARNING,BONNET |
56070-0053 |
US $4.18 |
||
|
56070C
|
56070C
56070-0055 LABEL,OFF-HIGHWAY(FRE |
56070-0055 |
US $4.18 |
||
|
56070D
|
56070D
56070-0058 LABEL-WARNING,BONNET |
56070-0058 |
US $4.18 |
||
|
56070E
|
56070E
56070-1207 Label-warning,hot surfaces |
56070-1207 |
US $4.20 |
||
|
56070F
|
56070F
56070-1219
Label-warning,shift caution
|
56070-1219 |
— | ||
|
56070G
|
56070G
56070-7507 LABEL-WARNING,GENERAL |
56070-7507 |
US $7.04 |
||
|
56070H
|
56070H
56070-7508 LABEL-WARNING,GENERAL |
56070-7508 |
US $7.04 |
||
|
56070I
|
56070I
56070-7511 LABEL,2 FOR REAR SEAT |
56070-7511 |
US $6.32 |
||
| replacements | |||||
|
56070I
|
56070I
56053-7532 LABEL-SPECIFICATION,T |
56053-7532 |
US $9.64 |
||
|
56070I
|
56070I
56071-7506 LABEL,2 FOR REAR SEAT |
56071-7506 |
US $9.21 |
||
|
56070J
|
56070J
56070-7512 LABEL,FINGERS PINCH(F |
56070-7512 |
US $3.15 |
||
| replacement | |||||
|
56070J
|
56070J
56071-7508 LABEL,FINGERS PINCH(F |
56071-7508 |
US $3.15 |
||
|
56070K
|
56070K
56070-7515 LABEL-WARNING,BED RAI |
56070-7515 |
US $4.18 |
||
|
56071
|
56071
56071-7501 LABEL-WARNING,GASOLIN |
56071-7501 |
US $4.18 |
||
|
56071A
|
56071A
56071-7504 BED RAISED(FRENCH) |
56071-7504 |
US $4.18 |
||
|
56071B
|
56071B
56071-7505 GASOLINE(FRENCH) |
56071-7505 |
US $4.18 |
||
|
56071C
|
56071C
56071-7511 LABEL-WARNING,TRAILER |
56071-7511 |
US $6.46 |
||
|
56071D
|
56071D
56071-7512 LABEL-WARNING,TRAILER |
56071-7512 |
US $3.71 |
||
|
56071E
|
56071E
56071-7513 LABEL-WARNING,REAR SE |
56071-7513 |
US $6.04 |
||
|
56071F
|
56071F
56071-7514 LABEL-WARNING,CAB FRA |
56071-7514 |
US $4.51 |
||
