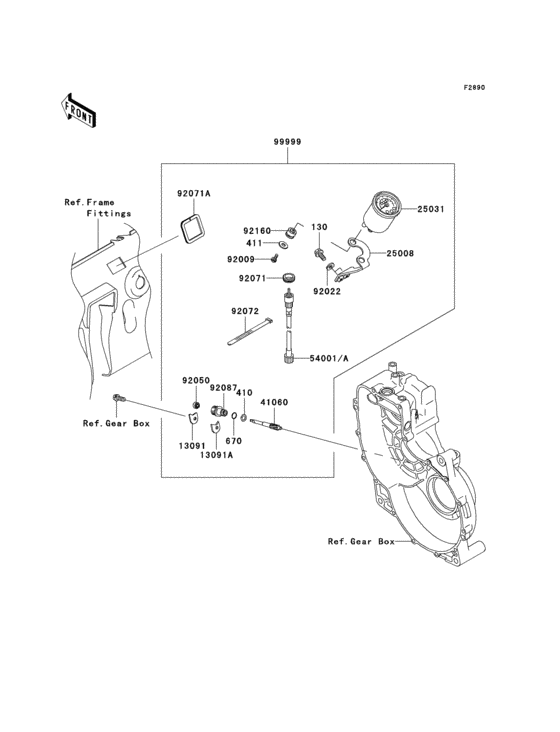

Optional parts Diagram Kawasaki KAF620 Mule 3010 Trans 4X4
- Model code
- KAF620J7F
- Engine Capacity
- 620
- Year
- 2007
- Sales region
- Canada
- Colour
- Aztec Red (467)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Trans 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0614 BOLT-FLANGED,6X14 |
130BB0614 |
from US $1.11 |
||
|
410
|
410
410B0600
WASHER-PLAIN-SMALL
|
410B0600 |
— | ||
| replacement | |||||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
411
|
411
411B0800
WASHER PLAIN 8MM
|
411B0800 |
— | ||
| replacement | |||||
|
411
|
411
411AA0800 WASHER-PLAIN |
411AA0800 |
from US $0.72 |
||
|
670
|
670
670D1510 0 RING,10MM |
670D1510 |
from US $2.85 |
||
|
13091
|
13091
13091-1008 HOLDER,TACHOMETER2.3T |
13091-1008 |
from US $2.88 |
||
|
13091A
|
13091A
13091-1009 HOLDER,TACHOMETR,3.2T |
13091-1009 |
from US $2.88 |
||
|
25008
|
25008
25008-1228 BRACKET-METER |
25008-1228 |
from US $25.82 |
||
|
25031
|
25031
25031-1190 METER-ASSY,MPH |
25031-1190 |
from US $178.85 |
||
|
41060
|
41060
41060-1148 GEAR-METER SCREW |
41060-1148 |
from US $35.77 |
||
|
54001
|
54001
54001-7501 CABLE-SPEEDMETER |
54001-7501 |
US $70.85 |
||
| replacement | |||||
|
54001
|
54001
54001-7502 CABLE-SPEEDMETER |
54001-7502 |
from US $60.65 |
||
|
92009
|
92009
92009-3740 SCREW,5X12 |
92009-3740 |
from US $3.01 |
||
|
92022
|
92022
92022-1093 WASHER,6.5X16X1.0 |
92022-1093 |
from US $1.43 |
||
|
92050
|
92050
92050-075 OIL SEAL |
92050-075 |
from US $7.13 |
||
|
92071
|
92071
92071-1027 GROMMET |
92071-1027 |
from US $3.01 |
||
|
92071A
|
92071A
92071-7504 GROMMET |
92071-7504 |
US $2.68 |
||
|
92072
|
92072
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
|
92087
|
92087
92087-010 GUIDE,TACHOMETER GEAR |
92087-010 |
from US $13.68 |
||
|
92160
|
92160
92160-1461 DAMPER |
92160-1461 |
from US $5.23 |
||
|
99999
|
99999
99999-7505 KIT.,SPEEDOMETER |
99999-7505 |
US $57.22 |
||
