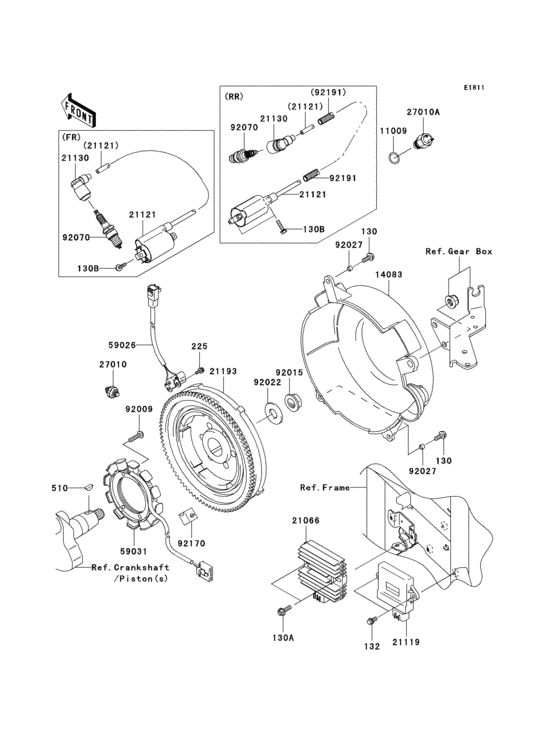

Generator/ignition coil Diagram Kawasaki KAF620 Mule 3010 Trans 4X4
- Model code
- KAF620J8F
- Engine Capacity
- 620
- Year
- 2008
- Sales region
- Canada
- Colour
- Aztec Red (467)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Trans 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130AA0616 BOLT-FLANGED,6X16 |
130AA0616 |
from US $0.88 |
||
|
130A
|
130A
130BB0620 BOLT-FLANGED |
130BB0620 |
from US $0.78 |
||
|
130B
|
130B
130B0520 BOLT-FLANGED |
130B0520 |
US $0.47 |
||
| replacements | |||||
|
130B
|
130B
130CA0520 BOLT-FLANGED,5X20 |
130CA0520 |
from US $0.79 |
||
|
130B
|
130B
130AA0520 BOLT-FLANGED |
130AA0520 |
from US $0.94 |
||
|
132
|
132
132BB0612 BOLT-FLANGED-SMALL,6X |
132BB0612 |
from US $0.95 |
||
|
225
|
225
225AA0414 SCREW-PAN-WSP-CROS |
225AA0414 |
from US $0.94 |
||
|
510
|
510
510A5100 WOODRUFF KEY |
510A5100 |
from US $3.40 |
||
|
11009
|
11009
11009-2766 GASKET-PRSSR SWITCH |
11009-2766 |
from US $1.56 |
||
|
14083
|
14083
14083-2052 COVER-FLYWHEEL |
14083-2052 |
US $30.92 |
||
| replacement | |||||
|
14083
|
14083
14083-0001 Cover-Flywheel |
14083-0001 |
US $33.37 |
||
|
21066
|
21066
21066-1127
REGULATOR-VOLTAGE
|
21066-1127 |
— | ||
| replacement | |||||
|
21066
|
21066
21066-0705 REGULATOR-VOLTAGE |
21066-0705 |
from US $133.89 |
||
|
21119
|
21119
21119-0045 IGNITER |
21119-0045 |
from US $290.82 |
||
|
21121
|
21121
21121-2092 COIL-IGNITION |
21121-2092 |
from US $62.21 |
||
|
21130
|
21130
21130-2060 CAP-PLUG |
21130-2060 |
from US $11.02 |
||
|
21193
|
21193
21193-2184 Flywheel-assy |
21193-2184 |
US $287.95 |
||
| replacement | |||||
|
21193
|
21193
21193-0030 FLYWHEEL-ASSY |
21193-0030 |
from US $310.69 |
||
|
27010
|
27010
27010-1313 SWITCH,OIL PRESSURE |
27010-1313 |
from US $32.42 |
||
|
27010A
|
27010A
27010-2182 SWITCH, TEMPERATURE |
27010-2182 |
from US $25.98 |
||
|
59026
|
59026
59026-2065 COIL-PULSING |
59026-2065 |
US $59.22 |
||
| replacement | |||||
|
59026
|
59026
59026-0559 COIL-PULSING |
59026-0559 |
from US $52.42 |
||
|
59031
|
59031
59031-2126 COIL-CHARGING |
59031-2126 |
from US $186.62 |
||
|
92009
|
92009
92009-2273 SCREW |
92009-2273 |
from US $1.09 |
||
|
92015
|
92015
92015-2167 NUT |
92015-2167 |
from US $4.82 |
||
|
92022
|
92022
92022-2229 WASHER |
92022-2229 |
from US $2.79 |
||
|
92027
|
92027
92027-2096 COLLAR |
92027-2096 |
from US $0.82 |
||
|
92070
|
92070
92070-2110 SPARK PLUG BPR2ES |
92070-2110 |
from US $6.12 |
||
|
92170
|
92170
92170-2056 CLAMP |
92170-2056 |
from US $2.17 |
||
|
92191
|
92191
92191-2124 TUBE |
92191-2124 |
from US $2.33 |
||
