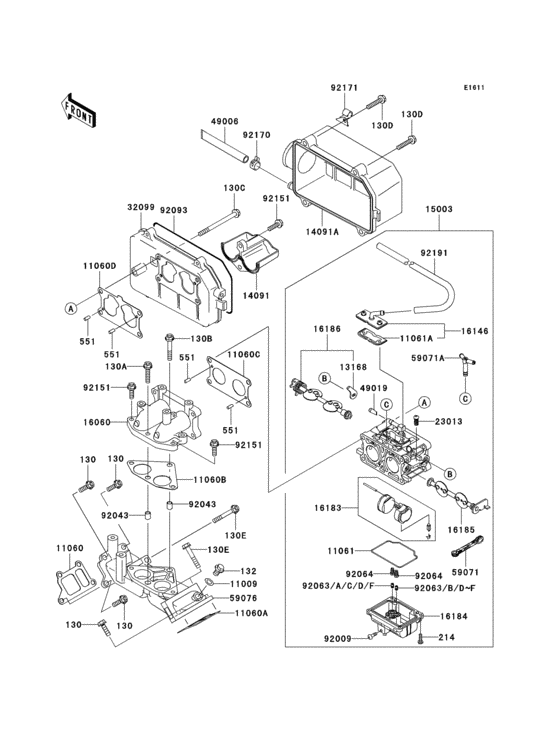

Carburetor(1/2) Diagram Kawasaki KAF620 Mule 3010 Trans 4X4 Hardwoods Green HD
- Model code
- KAF620K6F
- Engine Capacity
- 620
- Year
- 2006
- Sales region
- USA
- Colour
- Camouflage Hardwoods Green Hd (Base 6A) (374)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Trans 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130AA0620 BOLT-FLANGED,6X20 |
130AA0620 |
from US $1.11 |
||
|
130A
|
130A
130BA0630 BOLT-FLANGED,6X30 |
130BA0630 |
from US $0.95 |
||
|
130B
|
130B
130BA0640 BOLT-FLANGED,6X40 |
130BA0640 |
from US $0.79 |
||
|
130C
|
130C
130BA0680 BOLT-FLANGED |
130BA0680 |
from US $1.30 |
||
|
130D
|
130D
130BB0630 BOLT-FLANGED,6X30,BLA |
130BB0630 |
from US $1.27 |
||
|
130E
|
130E
130B0645 BOLT-FLANGED |
130B0645 |
US $1.17 |
||
| replacements | |||||
|
130E
|
130E
130BA0645 BOLT-FLANGED |
130BA0645 |
from US $1.27 |
||
|
130E
|
130E
130AA0645 BOLT-FLANGED |
130AA0645 |
from US $1.15 |
||
|
132
|
132
132BB0812 BOLT-FLANGED-SMALL |
132BB0812 |
from US $1.27 |
||
|
214
|
214
214AA0414 SCREW-PAN+- |
214AA0414 |
from US $0.78 |
||
|
551
|
551
551A0410 PIN,DOWEL |
551A0410 |
from US $0.99 |
||
|
11009
|
11009
11009-3028 GASKET-CHECK VALVE |
11009-3028 |
from US $1.07 |
||
|
11060
|
11060
11060-2087 GASKET-INTAKE MANIF |
11060-2087 |
from US $2.74 |
||
|
11060A
|
11060A
11060-2088 GASKET-INTAKE MANIF |
11060-2088 |
from US $2.59 |
||
|
11060B
|
11060B
11060-2477 GASKET |
11060-2477 |
from US $3.89 |
||
|
11060C
|
11060C
11060-2478 GASKET |
11060-2478 |
from US $3.02 |
||
|
11060D
|
11060D
11060-2479 GASKET |
11060-2479 |
from US $3.17 |
||
|
11061
|
11061
11061-2090 GASKET-CHAMBER |
11061-2090 |
from US $8.09 |
||
|
11061A
|
11061A
11061-2091 GASKET-COVER |
11061-2091 |
from US $6.38 |
||
|
13168
|
13168
13168-2473 LEVER |
13168-2473 |
from US $33.44 |
||
|
14091
|
14091
14091-2067
COVER
|
14091-2067 |
— | ||
|
14091A
|
14091A
14091-2068 COVER |
14091-2068 |
from US $32.26 |
||
|
15003
|
15003
15003-2766 CARBURETOR-ASSY |
15003-2766 |
from US $525.60 |
||
|
16060
|
16060
16060-2195 PIPE-INTAKE |
16060-2195 |
from US $49.61 |
||
|
16146
|
16146
16146-2229 COVER-ASSY |
16146-2229 |
from US $9.65 |
||
|
16183
|
16183
16183-2006 FLOAT-ASSY |
16183-2006 |
from US $33.28 |
||
|
16184
|
16184
16184-2006 CHAMBER-ASSY-FLOAT |
16184-2006 |
from US $57.54 |
||
|
16185
|
16185
16185-2038 VALVE-ASSY-THROTTLE |
16185-2038 |
from US $65.32 |
||
|
16186
|
16186
16186-2037 VALVE-ASSY-CHOKE |
16186-2037 |
from US $54.59 |
||
|
23013
|
23013
23013-2061 SCREW-ASSY |
23013-2061 |
from US $3.89 |
||
|
32099
|
32099
32099-2374 CASE |
32099-2374 |
from US $36.29 |
||
|
49006
|
49006
49006-2053
BOOT
|
49006-2053 |
— | ||
|
49019
|
49019
49019-1093 FILTER-FUEL |
49019-1093 |
from US $11.35 |
||
|
59071
|
59071
59071-2138
JOINT
|
59071-2138 |
— | ||
|
59071A
|
59071A
59071-2139 JOINT |
59071-2139 |
from US $7.46 |
||
|
59076
|
59076
59076-2069 MANIFOLD-INTAKE |
59076-2069 |
from US $48.67 |
||
|
92009
|
92009
92009-2015 SCREW,DRAIN |
92009-2015 |
from US $3.11 |
||
|
92043
|
92043
92043-1302 PIN,DOWEL,8X10 |
92043-1302 |
from US $1.45 |
||
|
92063
|
92063
92063-2363 JET-MAIN,#86.3 |
92063-2363 |
from US $8.40 |
||
|
92063A
|
92063A
92063-2376 JET-MAIN,#85A |
92063-2376 |
from US $8.40 |
||
|
92063B
|
92063B
92063-2402 JET-MAIN,#92.5 |
92063-2402 |
from US $8.40 |
||
|
92063C
|
92063C
92063-2403 JET-MAIN,#90 |
92063-2403 |
from US $9.17 |
||
|
92063D
|
92063D
92063-2405 JET-MAIN,#87.5 |
92063-2405 |
from US $9.17 |
||
|
92063E
|
92063E
92063-2407 JET-MAIN,#91.3 |
92063-2407 |
from US $8.40 |
||
|
92063F
|
92063F
92063-2413 JET-MAIN,#88.8 |
92063-2413 |
from US $9.17 |
||
|
92064
|
92064
92064-2132 JET-PILOT |
92064-2132 |
from US $9.65 |
||
|
92093
|
92093
92093-2115 SEAL |
92093-2115 |
from US $3.02 |
||
|
92151
|
92151
92151-2138 BOLT,6X20 |
92151-2138 |
from US $1.01 |
||
|
92170
|
92170
92170-2082 CLAMP |
92170-2082 |
from US $1.24 |
||
|
92171
|
92171
92171-2066 CLAMP |
92171-2066 |
US $6.80 |
||
|
92191
|
92191
92191-2140 TUBE |
92191-2140 |
from US $15.87 |
||
