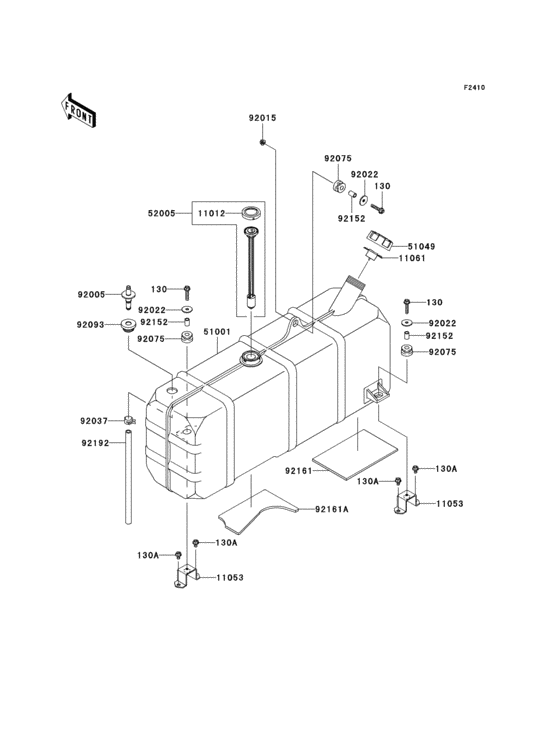

Fuel tank(k6f) Diagram Kawasaki KAF620 Mule 3010 Trans 4X4 Hardwoods Green HD
- Model code
- KAF620K6F
- Engine Capacity
- 620
- Year
- 2006
- Sales region
- USA
- Colour
- Camouflage Hardwoods Green Hd (Base 6A) (374)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Trans 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0630 BOLT-FLANGED,6X30 |
130BA0630 |
from US $0.95 |
||
|
130A
|
130A
130BB0610 BOLT-FLANGED,6X10 |
130BB0610 |
from US $1.11 |
||
|
11012
|
11012
11012-1627 CAP,FUEL GAUGE |
11012-1627 |
from US $8.24 |
||
|
11053
|
11053
11053-7512 BRACKET |
11053-7512 |
US $10.59 |
||
|
11061
|
11061
11061-7504 GASKET,FUEL TANK CAP |
11061-7504 |
from US $6.54 |
||
|
51001
|
51001
51001-7503 TANK-COMP-FUEL |
51001-7503 |
US $444.92 |
||
|
51049
|
51049
51049-7002 CAP-TANK |
51049-7002 |
US $6.73 |
||
| replacement | |||||
|
51049
|
51049
51049-2087 CAP-TANK |
51049-2087 |
from US $7.16 |
||
|
52005
|
52005
52005-7501 GAUGE,FUEL |
52005-7501 |
US $86.85 |
||
| replacement | |||||
|
52005
|
52005
52005-0738 GAUGE,FUEL |
52005-0738 |
from US $66.38 |
||
|
92005
|
92005
92005-7501 FITTING |
92005-7501 |
US $10.08 |
||
|
92015
|
92015
92015-1675 NUT |
92015-1675 |
from US $2.69 |
||
|
92022
|
92022
92022-1690 WASHER |
92022-1690 |
from US $2.53 |
||
|
92037
|
92037
92037-1181 CLAMP |
92037-1181 |
from US $3 |
||
|
92075
|
92075
92075-1787 DAMPER |
92075-1787 |
from US $3.96 |
||
|
92093
|
92093
92093-7502 SEAL |
92093-7502 |
from US $4.05 |
||
|
92152
|
92152
92152-7511 COLLAR,7.02X10.32X15. |
92152-7511 |
US $2.23 |
||
|
92161
|
92161
92161-7508 DAMPER |
92161-7508 |
US $10.20 |
||
|
92161A
|
92161A
92161-7513 DAMPER |
92161-7513 |
US $9.86 |
||
|
92192
|
92192
92192-7503 TUBE,8X13X260 |
92192-7503 |
from US $3.11 |
||
