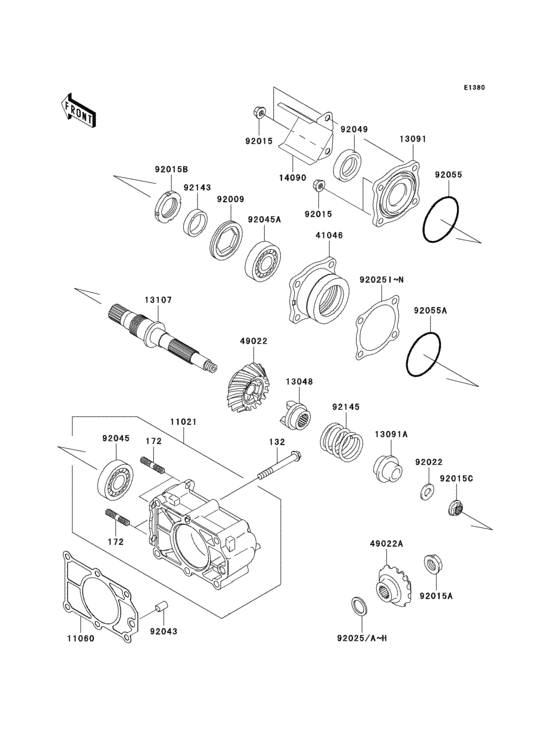

Bevel gear case(1/2) Diagram Kawasaki KAF620 Mule 3010 Trans 4X4 Hardwoods Green HD
- Model code
- KAF620K7F
- Engine Capacity
- 620
- Year
- 2007
- Sales region
- USA
- Colour
- Camouflage Hardwoods Green Hd (Base 6A) (374)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Trans 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BA0870 BOLT-FLANGED-SMALL |
132BA0870 |
from US $1.56 |
||
|
172
|
172
172BA0825 STUD |
172BA0825 |
from US $2.95 |
||
|
11021
|
11021
11021-1095 CASE-ASSY |
11021-1095 |
from US $346.81 |
||
| replacement | |||||
|
11021
|
11021
11021-0026 CASE-ASSY |
11021-0026 |
from US $436.63 |
||
|
11060
|
11060
11060-1311 GASKET,GEAR CASE |
11060-1311 |
from US $6.06 |
||
|
13048
|
13048
13048-1089 CAM-DAMPER |
13048-1089 |
from US $30.48 |
||
|
13091
|
13091
13091-1620 HOLDER,GEAR CASE |
13091-1620 |
from US $27.84 |
||
|
13091A
|
13091A
13091-1810 HOLDER,CAM DAMPER |
13091-1810 |
from US $31.26 |
||
|
13107
|
13107
13107-1523 SHAFT,BEVEL GEAR |
13107-1523 |
from US $142.30 |
||
|
14090
|
14090
14090-1341 COVER |
14090-1341 |
US $14.22 |
||
| replacement | |||||
|
14090
|
14090
14091-1672 COVER |
14091-1672 |
from US $8.87 |
||
|
41046
|
41046
41046-1083 HOUSING-BEARING |
41046-1083 |
from US $96.42 |
||
|
49022
|
49022
49022-1204 GEAR-BEVEL,18T |
49022-1204 |
from US $145.41 |
||
| replacement | |||||
|
49022
|
49022
49022-0614 Gear-Bevel,18T |
49022-0614 |
US $257.06 |
||
|
49022A
|
49022A
49022-1205 GEAR-BEVEL,15T |
49022-1205 |
from US $145.41 |
||
| replacement | |||||
|
49022A
|
49022A
49022-0615 Gear-Bevel,15T |
49022-0615 |
US $257.06 |
||
|
92009
|
92009
92009-1474 SCREW |
92009-1474 |
from US $15.39 |
||
|
92015
|
92015
92015-1402 NUT,8MM |
92015-1402 |
from US $2.85 |
||
|
92015A
|
92015A
92015-1581 NUT |
92015-1581 |
from US $12.20 |
||
|
92015B
|
92015B
92015-1858 NUT,30MM |
92015-1858 |
from US $18.98 |
||
|
92015C
|
92015C
92015-1920 NUT |
92015-1920 |
from US $3.73 |
||
|
92022
|
92022
92022-1890 WASHER,12X24X2.3 |
92022-1890 |
from US $2.79 |
||
|
92025
|
92025
92025-1533 SHIM,20.3X28X1.3 |
92025-1533 |
from US $3.73 |
||
|
92025A
|
92025A
92025-1534 SHIM,20.3X28X0.7 |
92025-1534 |
from US $2.95 |
||
|
92025B
|
92025B
92025-1535 SHIM,20.3X28X0.8 |
92025-1535 |
US $5.17 |
||
| replacement | |||||
|
92025B
|
92025B
92180-0288 SHIM,20.3X28X0.8 |
92180-0288 |
from US $2.95 |
||
|
92025C
|
92025C
92025-1536 SHIM,20.3X28X0.9 |
92025-1536 |
US $7.69 |
||
| replacement | |||||
|
92025C
|
92025C
92180-0289 SHIM,20.3X28X0.9 |
92180-0289 |
from US $4.67 |
||
|
92025D
|
92025D
92025-1537 SHIM,20.3X28X1.0 |
92025-1537 |
US $5.17 |
||
| replacement | |||||
|
92025D
|
92025D
92180-0290 SHIM,20.3X28X1.0 |
92180-0290 |
from US $2.95 |
||
|
92025E
|
92025E
92025-1538 SHIM,20.3X28X1.2 |
92025-1538 |
US $3.98 |
||
| replacement | |||||
|
92025E
|
92025E
92180-0291 SHIM,20.3X28X1.2 |
92180-0291 |
from US $2.95 |
||
|
92025F
|
92025F
92025-1573 SHIM,20.3X28X0.15 |
92025-1573 |
from US $3.33 |
||
|
92025G
|
92025G
92025-1574 SHIM,20.3X28X0.20 |
92025-1574 |
from US $3.33 |
||
|
92025H
|
92025H
92025-1575 SHIM,20.3X28X1.1 |
92025-1575 |
from US $2.95 |
||
|
92025I
|
92025I
92025-1858 SHIM,T=1.00 |
92025-1858 |
from US $3.27 |
||
|
92025J
|
92025J
92025-1859 SHIM,T=0.10 |
92025-1859 |
from US $3.27 |
||
|
92025K
|
92025K
92025-1860 SHIM,T=0.15 |
92025-1860 |
from US $3.27 |
||
|
92025L
|
92025L
92025-1861 SHIM,T=0.50 |
92025-1861 |
from US $3.27 |
||
|
92025M
|
92025M
92025-1862 SHIM,T=0.80 |
92025-1862 |
from US $3.27 |
||
|
92025N
|
92025N
92025-1863 SHIM,T=1.20 |
92025-1863 |
from US $3.27 |
||
|
92043
|
92043
92043-1037 PIN,DOWEL,10X8.2X14 |
92043-1037 |
from US $0.97 |
||
|
92045
|
92045
92045-1200 BEARING-BALL |
92045-1200 |
from US $20.75 |
||
|
92045A
|
92045A
92045-1201 BEARING-BALL,6006CM |
92045-1201 |
from US $18.04 |
||
|
92049
|
92049
92049-1288 SEAL-OIL |
92049-1288 |
from US $6.38 |
||
|
92055
|
92055
92055-1287 RING-O,66.5MM |
92055-1287 |
from US $3.57 |
||
|
92055A
|
92055A
92055-1294 RING-O,63MM |
92055-1294 |
from US $5.60 |
||
|
92143
|
92143
92143-1600 COLLAR |
92143-1600 |
from US $10.57 |
||
|
92145
|
92145
92145-1542 SPRING |
92145-1542 |
from US $9.79 |
||
