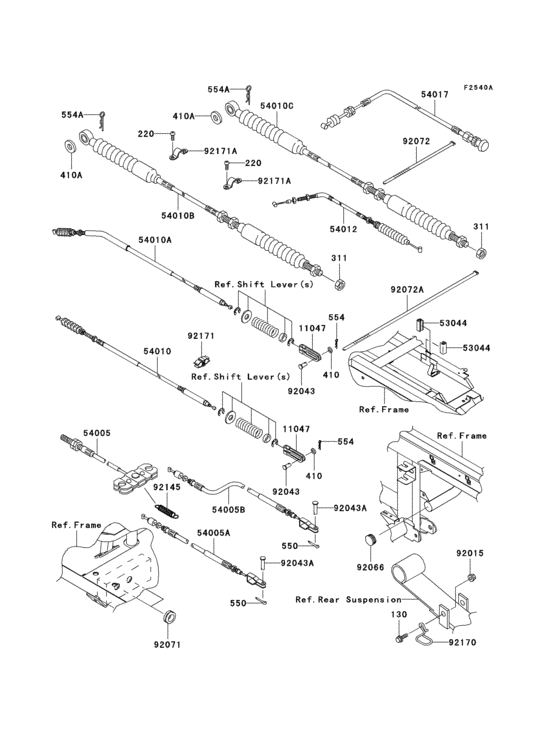

Cables(k7f/k8f) Diagram Kawasaki KAF620 Mule 3010 Trans 4X4 Hardwoods Green HD
- Model code
- KAF620K7F
- Engine Capacity
- 620
- Year
- 2007
- Sales region
- USA
- Colour
- Camouflage Hardwoods Green Hd (Base 6A) (374)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Trans 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130AA0620 BOLT-FLANGED,6X20 |
130AA0620 |
from US $1.11 |
||
|
220
|
220
220AA0514 SCREW-PAN HEAD,5X14 |
220AA0514 |
from US $0.79 |
||
|
311
|
311
311B0600
NUT-HEX,6MM
|
311B0600 |
— | ||
| replacement | |||||
|
311
|
311
311AA0600 NUT-HEX,6MM |
311AA0600 |
from US $0.63 |
||
|
410
|
410
410B0600
WASHER-PLAIN-SMALL
|
410B0600 |
— | ||
| replacement | |||||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
410A
|
410A
410E0800 WASHER-PLAIN-SMALL,8M |
410E0800 |
US $0.61 |
||
| replacement | |||||
|
410A
|
410A
410AA0800 WASHER-PLAIN-SMALL,8M |
410AA0800 |
from US $0.63 |
||
|
550
|
550
550D2022 PIN-COTTER,2.0X22 |
550D2022 |
US $1.67 |
||
| replacement | |||||
|
550
|
550
550AA2022 PIN-COTTER,2.0X22 |
550AA2022 |
from US $0.94 |
||
|
554
|
554
554A0600
PIN-SNAP
|
554A0600 |
— | ||
| replacement | |||||
|
554
|
554
554DA0600 PIN-SNAP |
554DA0600 |
from US $1.36 |
||
|
554A
|
554A
554A0800 PIN-SNAP |
554A0800 |
from US $2.09 |
||
| replacement | |||||
|
554A
|
554A
554DA0800 PIN-SNAP |
554DA0800 |
from US $0.63 |
||
|
11047
|
11047
11047-1043 BRACKET,DIFF LOCK |
11047-1043 |
US $7.85 |
||
| replacement | |||||
|
11047
|
11047
11055-7505 BRACKET,DIFF LOCK |
11055-7505 |
from US $4.98 |
||
|
53044
|
53044
53044-7503 TRIM,L=22 |
53044-7503 |
from US $4.91 |
||
|
54005
|
54005
54005-1198 CABLE-BRAKE,PARKING,F |
54005-1198 |
from US $10.54 |
||
|
54005A
|
54005A
54005-7501 CABLE-BRAKE,PARKING,R |
54005-7501 |
from US $29.23 |
||
|
54005B
|
54005B
54005-7502 CABLE-BRAKE,PARKING,R |
54005-7502 |
from US $29.23 |
||
|
54010
|
54010
54010-0045 CABLE,2-4WD |
54010-0045 |
from US $33.44 |
||
|
54010A
|
54010A
54010-7504 CABLE,DIFF LOCK |
54010-7504 |
from US $58 |
||
|
54010B
|
54010B
54010-7505 CABLE,SHIFT CONTROL |
54010-7505 |
from US $121.92 |
||
|
54010C
|
54010C
54010-7506 CABLE,HI-LOW |
54010-7506 |
from US $87.09 |
||
|
54012
|
54012
54012-7505 CABLE-THROTTLE |
54012-7505 |
from US $39.50 |
||
|
54017
|
54017
54017-7502 CABLE-STARTER |
54017-7502 |
from US $27.06 |
||
|
92015
|
92015
92015-1675 NUT |
92015-1675 |
from US $2.69 |
||
|
92043
|
92043
92043-092 PIN-BRAKE CABLE FIT |
92043-092 |
from US $2.74 |
||
|
92043A
|
92043A
92043-1039 PIN |
92043-1039 |
from US $6.65 |
||
|
92066
|
92066
92066-7503 PLUG |
92066-7503 |
US $2.28 |
||
|
92071
|
92071
92071-1027 GROMMET |
92071-1027 |
from US $3.01 |
||
|
92072
|
92072
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
|
92072A
|
92072A
92072-3872 BAND,L=368.3 |
92072-3872 |
from US $1.90 |
||
|
92145
|
92145
92145-7506 SPRING |
92145-7506 |
from US $5.13 |
||
|
92170
|
92170
92170-1372 CLAMP,CABLE |
92170-1372 |
from US $5.90 |
||
|
92171
|
92171
92171-0129 CLAMP,HIGHTENSION COR |
92171-0129 |
from US $2.17 |
||
|
92171A
|
92171A
92171-1203 CLAMP |
92171-1203 |
from US $1.40 |
||
