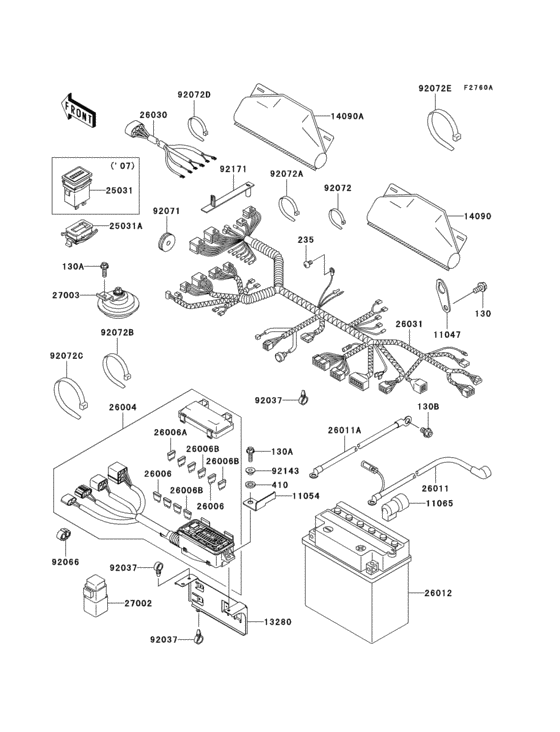

Chassis electrical equipment(k7f/k8f) Diagram Kawasaki KAF620 Mule 3010 Trans 4X4 Hardwoods Green HD
- Model code
- KAF620K7F
- Engine Capacity
- 620
- Year
- 2007
- Sales region
- USA
- Colour
- Camouflage Hardwoods Green Hd (Base 6A) (374)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Trans 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0816 BOLT-FLANGED |
130BA0816 |
from US $1.11 |
||
|
130A
|
130A
130BB0620 BOLT-FLANGED |
130BB0620 |
from US $0.78 |
||
|
130B
|
130B
130BB0812 BOLT-FLANGED |
130BB0812 |
from US $1.05 |
||
|
235
|
235
235AA0610 SCREW-PAN-WP-CROS |
235AA0610 |
from US $1.11 |
||
|
410
|
410
410F1000
WASHER,10MM
|
410F1000 |
— | ||
| replacement | |||||
|
410
|
410
410AB1000 WASHER,10MM |
410AB1000 |
from US $0.95 |
||
|
11047
|
11047
11047-2056-9H BRACKET |
11047-2056-9H |
from US $1.71 |
||
|
11054
|
11054
11054-7511 BRACKET,BREAKER |
11054-7511 |
US $4.77 |
||
|
11065
|
11065
11065-7502 CAP,BATTERY(+) |
11065-7502 |
US $5.95 |
||
|
13280
|
13280
13280-1220 HOLDER |
13280-1220 |
from US $22.71 |
||
|
14090
|
14090
14090-1331 COVER,COUPLER |
14090-1331 |
from US $6.18 |
||
|
14090A
|
14090A
14090-1611 COVER,COUPLER |
14090-1611 |
from US $6.18 |
||
|
25031
|
25031
25031-7505 METER-ASSY,HOUR |
25031-7505 |
US $133.40 |
||
|
26004
|
26004
26004-0004 FUSE-ASSY |
26004-0004 |
from US $231.72 |
||
|
26006
|
26006
26006-1077 FUSE,MINI BLADE,5A,TA |
26006-1077 |
from US $3.33 |
||
|
26006A
|
26006A
26006-1079 FUSE,MINI BLADE,20A,Y |
26006-1079 |
from US $3.33 |
||
|
26006B
|
26006B
26006-1080 FUSE,MINI BLADE,30A,G |
26006-1080 |
from US $3.33 |
||
|
26011
|
26011
26011-7515 WIRE-LEAD,BATTERY(+) |
26011-7515 |
US $66.08 |
||
|
26011A
|
26011A
26011-7516 WIRE-LEAD,BATTERY(-) |
26011-7516 |
US $56.24 |
||
|
26012
|
26012
26012-3728
YTX20L-BS 0.92 L
|
26012-3728 |
— | ||
| replacement | |||||
|
26012
|
26012
K2601-237-21
YTX20L-BS 0.92 L
|
K2601-237-21 |
— | ||
|
26030
|
26030
26030-2322 HARNESS |
26030-2322 |
from US $142.10 |
||
|
26031
|
26031
26031-7506 HARNESS,MAIN |
26031-7506 |
US $361.22 |
||
| replacement | |||||
|
26031
|
26031
26031-7510
HARNESS,MAIN
|
26031-7510 |
— | ||
|
27002
|
27002
27002-1068 RELAY-ASSY |
27002-1068 |
from US $51.55 |
||
|
27003
|
27003
27003-1276 HORN |
27003-1276 |
from US $27.84 |
||
|
92037
|
92037
92037-1827 CLAMP,HOSE |
92037-1827 |
from US $6.21 |
||
|
92066
|
92066
92066-1539 PLUG |
92066-1539 |
from US $5.60 |
||
|
92071
|
92071
92071-1136 GROMMET |
92071-1136 |
from US $4.51 |
||
|
92072
|
92072
92072-030 BAND,SHORT |
92072-030 |
from US $3.01 |
||
|
92072A
|
92072A
92072-031 BAND,MIDDLE |
92072-031 |
from US $3.01 |
||
|
92072B
|
92072B
92072-1195 BAND,L=185 |
92072-1195 |
from US $2.07 |
||
|
92072C
|
92072C
92072-1237 BAND,L=250 |
92072-1237 |
from US $2.74 |
||
|
92072D
|
92072D
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
|
92072E
|
92072E
92072-3872 BAND,L=368.3 |
92072-3872 |
from US $1.90 |
||
|
92143
|
92143
92143-1057 COLLAR |
92143-1057 |
from US $3.17 |
||
|
92171
|
92171
92171-1365 CLAMP |
92171-1365 |
from US $2.49 |
||
