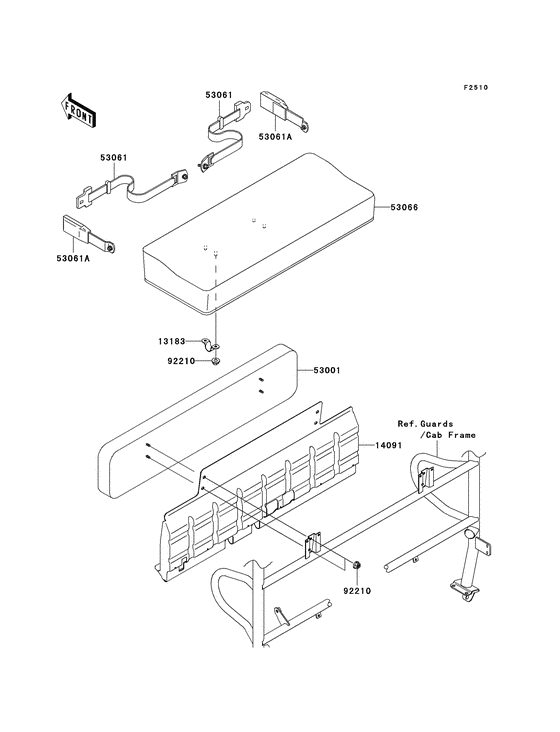

Seat Diagram Kawasaki KAF620 Mule 4010 4X4
- Model code
- KAF620MAF
- Engine Capacity
- 620
- Year
- 2010
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 4X4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13183
|
13183
13183-1400 PLATE,SEATPlate,seat; |
13183-1400 |
from US $8.40 |
||
|
14091
|
14091
14091-0529 COVER,SEAT BACKCover,seat back; |
14091-0529 |
US $179.28 |
||
|
53001
|
53001
53001-1584-MA SEAT-ASSY,BACK,BLACKSeat-assy,back,black; |
53001-1584-MA |
US $503.60 |
||
|
53061
|
53061
53061-1013 BELT-SEAT,CATCH PLATEBelt-seat,catch plate; |
53061-1013 |
from US $68.89 |
||
|
53061A
|
53061A
53061-1014 BELT-SEAT,BUCKLEBelt-seat,buckle; |
53061-1014 |
from US $58.48 |
||
|
53066
|
53066
53066-7502-MA SEAT-ASSY,FR,LWR,BLACSeat-assy,fr,lwr,black; |
53066-7502-MA |
US $496.91 |
||
|
92210
|
92210
92210-0005 NUT,FLANGED,LOCK,8MMNut,flanged,lock,8mm; |
92210-0005 |
from US $2.30 |
