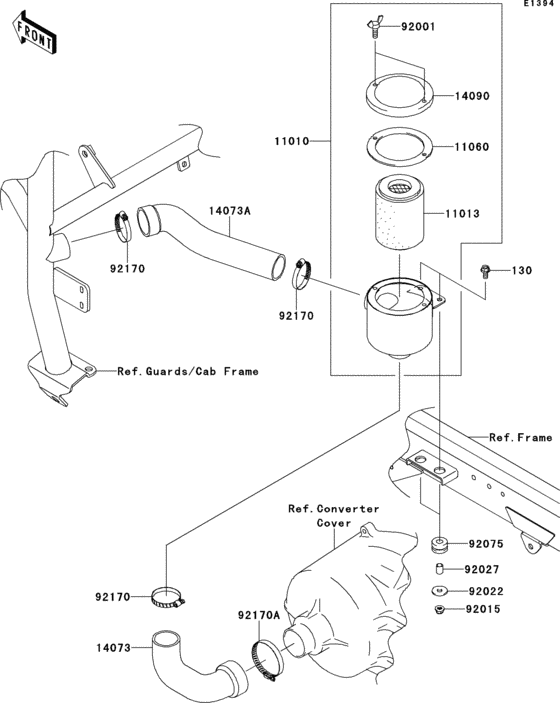

Air cleaner-belt converter(m9f/maf) Diagram Kawasaki KAF620 Mule 4010 4X4
- Model code
- KAF620MAF
- Engine Capacity
- 620
- Year
- 2010
- Sales region
- Canada
- Frame
- JK1AFCM1 AB504001 - AB505600
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130AB0830 BOLT-FLANGE,8X30 |
130AB0830 |
from US $1.40 |
||
|
11010
|
11010
11010-0055 FILTER-ASSY-AIR |
11010-0055 |
from US $130.02 |
||
|
11013
|
11013
11013-1263 Element-air filter |
11013-1263 |
from US $19.20 |
||
|
11060
|
11060
11060-1975 GASKET,AIR FILTER CAS |
11060-1975 |
from US $7.93 |
||
|
14073A
|
14073A
14073-0238 DUCT,BAR-AIR FILTER |
14073-0238 |
US $20.33 |
||
|
14090
|
14090
14090-1766 COVER,AIR FILTER |
14090-1766 |
from US $9.49 |
||
|
92001
|
92001
92001-1703 BOLT,6X16 |
92001-1703 |
from US $2.33 |
||
|
92015
|
92015
92015-1432 NUT,8MM |
92015-1432 |
from US $3.80 |
||
|
92022
|
92022
92022-1632 WASHER,9X28X2.3 |
92022-1632 |
from US $2.65 |
||
|
92027
|
92027
92027-1081 COLLAR |
92027-1081 |
from US $5.60 |
||
|
92075
|
92075
92075-1736 DAMPER |
92075-1736 |
from US $3.96 |
||
|
92170
|
92170
92037-1523 CLAMP |
92037-1523 |
from US $8.08 |
||
|
92170A
|
92170A
92170-1764 CLAMP |
92170-1764 |
from US $12.05 |
