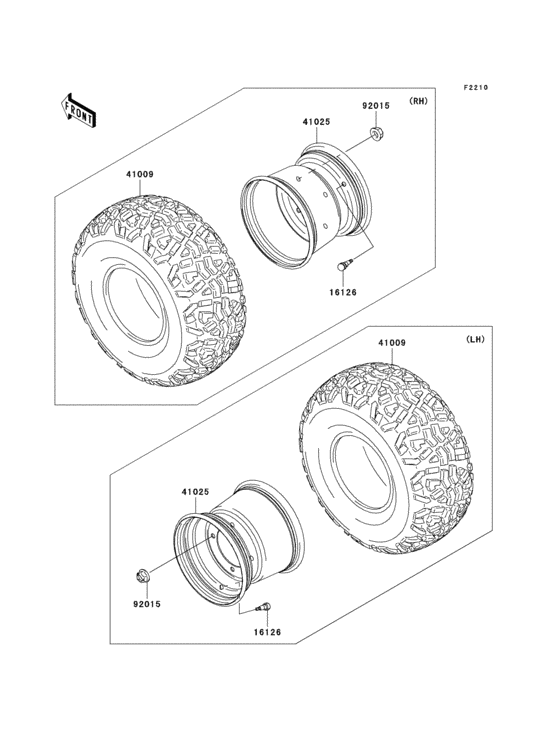

Wheels/tires Diagram Kawasaki KAF620 Mule 4010 4X4 Hardwoods Green HD
- Model code
- KAF620N9F
- Engine Capacity
- 620
- Year
- 2009
- Colour
- Camouflage Hardwoods Green Hd(Base Black) (826)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 4X4 Camo
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16126
|
16126
16126-4001 VALVE,TIRE |
16126-4001 |
from US $12.48 |
||
|
41009
|
41009
41009-0166 New Genuine Part |
41009-0166 |
US $151.22 |
||
| replacement | |||||
|
41009
|
41009
41009-0294 TIRE,23X11.00-10 4PR |
41009-0294 |
US $219.49 |
||
|
41025
|
41025
41025-7504-397 RIM,10X8.5AT,F.S.BLAC |
41025-7504-397 |
US $132.69 |
||
|
92015
|
92015
92015-1706 NUT |
92015-1706 |
from US $4.75 |
||
