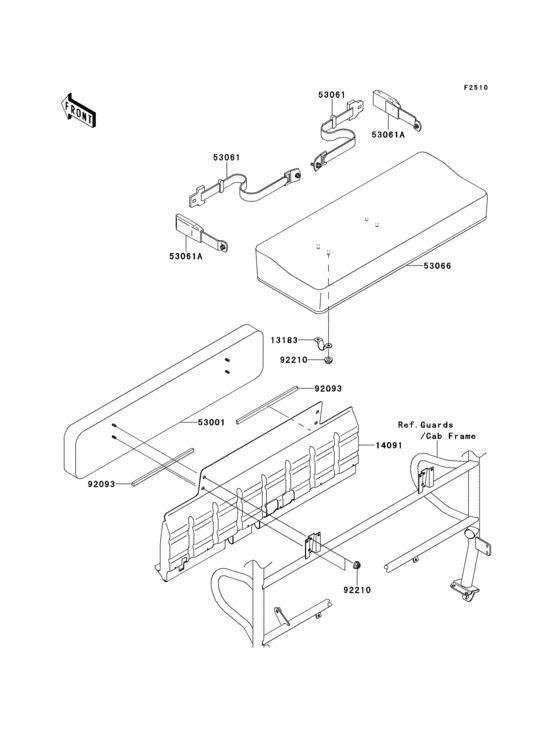

Seat(p9f/paf) Diagram Kawasaki KAF620 Mule 4000
- Model code
- KAF620PAF
- Engine Capacity
- 620
- Year
- 2010
- Colour
- Woodman Green (398)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 4000
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13183
|
13183
13183-1400 PLATE,SEAT |
13183-1400 |
from US $8.40 |
||
|
14091
|
14091
14091-0529 COVER,SEAT BACK |
14091-0529 |
US $179.28 |
||
|
53001
|
53001
53001-1584-MA SEAT-ASSY,BACK,BLACK |
53001-1584-MA |
US $503.60 |
||
|
53061
|
53061
53061-1013 BELT-SEAT,CATCH PLATE |
53061-1013 |
from US $68.89 |
||
|
53061A
|
53061A
53061-1014 BELT-SEAT,BUCKLE |
53061-1014 |
from US $58.48 |
||
|
53066
|
53066
53066-7502-MA SEAT-ASSY,FR,LWR,BLAC |
53066-7502-MA |
US $496.91 |
||
|
92093
|
92093
92093-0024 SEAL,L=408 |
92093-0024 |
US $7.31 |
||
|
92210
|
92210
92210-0005 NUT,FLANGED,LOCK,8MM |
92210-0005 |
from US $2.30 |
