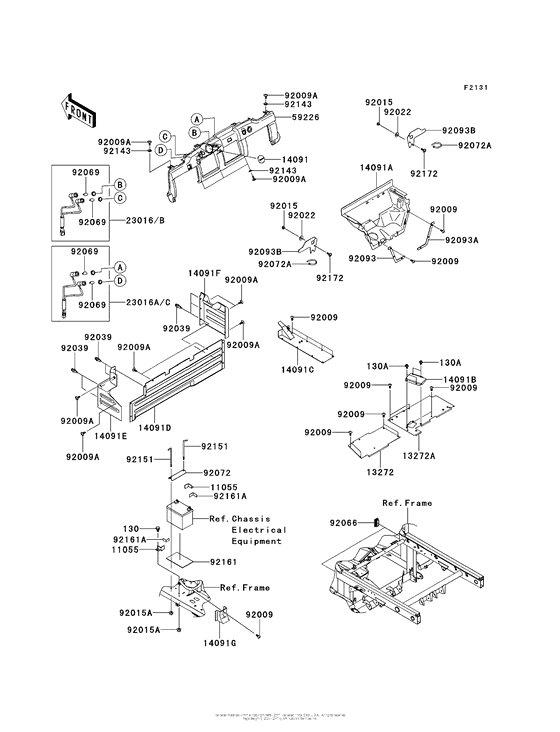

Frame Fittings (P9F-Pbf) Diagram Kawasaki KAF620 Mule 4000
- Model code
- KAF620PAF
- Engine Capacity
- 620
- Year
- 2010
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 4000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0814 BOLT-FLANGED,8X14 |
130BA0814 |
from US $0.95 |
||
|
130A
|
130A
130BB0610 BOLT-FLANGED,6X10 |
130BB0610 |
from US $1.11 |
||
|
11055
|
11055
11055-0433 BRACKET |
11055-0433 |
US $4.74 |
||
|
13272
|
13272
13272-0284 PLATE |
13272-0284 |
US $116.54 |
||
|
13272A
|
13272A
13272-0285 PLATE |
13272-0285 |
US $150.14 |
||
|
14091
|
14091
14091-0929-6Z COVER,SPEEDOMETER,F.B |
14091-0929-6Z |
US $10.03 |
||
|
14091A
|
14091A
14091-1378 COVER,FLOOR |
14091-1378 |
US $110.74 |
||
|
14091B
|
14091B
14091-1666 COVER |
14091-1666 |
US $20.55 |
||
|
14091C
|
14091C
14091-1692 COVER,FLOOR,CNT,FR |
14091-1692 |
US $97.50 |
||
|
14091D
|
14091D
14091-7531 COVER,FRONT SEAT,CNT |
14091-7531 |
US $135.35 |
||
|
14091E
|
14091E
14091-7541 COVER,FRONT SEAT,LH |
14091-7541 |
US $40.22 |
||
|
14091F
|
14091F
14091-7542 COVER,FRONT SEAT,RH |
14091-7542 |
US $55.64 |
||
|
14091G
|
14091G
14091-7551 COVER,PARKING CABLE |
14091-7551 |
US $13.70 |
||
|
23016B
|
23016B
23016-0035 LAMP-ASSY,PARKING&WAT |
23016-0035 |
from US $52.56 |
||
|
23016C
|
23016C
23016-0036 LAMP-ASSY,LED |
23016-0036 |
from US $52.56 |
||
|
59226
|
59226
59226-0012-6Z PANEL-CONTROL,F.BLACK |
59226-0012-6Z |
US $120.71 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.88 |
||
|
92009A
|
92009A
92009-1694 SCREW |
92009-1694 |
from US $5.13 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MM |
92015-1233 |
from US $3.90 |
||
|
92015A
|
92015A
92015-1406 NUT,8MM |
92015-1406 |
from US $2.85 |
||
|
92022
|
92022
92022-1346 WASHER,6.5X20X1.6.BLA |
92022-1346 |
from US $0.82 |
||
|
92039
|
92039
92039-0776 RIVET |
92039-0776 |
from US $1.40 |
||
|
92066
|
92066
92066-7505 PLUG |
92066-7505 |
US $5.85 |
||
|
92069
|
92069
92069-1059 BULB,12V 1.7W |
92069-1059 |
from US $3.33 |
||
|
92072
|
92072
92072-0112 BAND |
92072-0112 |
US $12.17 |
||
|
92072A
|
92072A
92072-3872 BAND,L=368.3 |
92072-3872 |
from US $1.90 |
||
|
92093
|
92093
92093-1293 SEAL,FRONT FENDER,LH |
92093-1293 |
from US $5.90 |
||
|
92093A
|
92093A
92093-1294 SEAL,FRONT FENDER,RH |
92093-1294 |
from US $6.22 |
||
|
92093B
|
92093B
92093-1295 SEAL,LOWER COVER |
92093-1295 |
US $22.88 |
||
| replacement | |||||
|
92093B
|
92093B
92093-0181 SEAL,LOWER COVER |
92093-0181 |
from US $12.76 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92151
|
92151
92151-1897 BOLT,BATTERY |
92151-1897 |
from US $3.73 |
||
|
92161
|
92161
92161-0578 DAMPER |
92161-0578 |
US $5.54 |
||
|
92161A
|
92161A
92161-0580 DAMPER |
92161-0580 |
US $3.04 |
||
|
92172
|
92172
92172-0002 SCREW,6X18 |
92172-0002 |
from US $1.27 |
||
