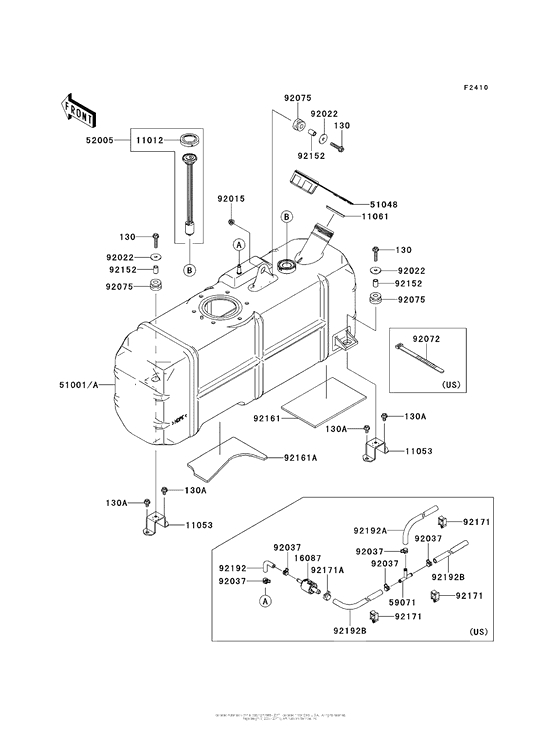

Fuel Tank (P9F/paf) Diagram Kawasaki KAF620 Mule 4000
- Model code
- KAF620PAF
- Engine Capacity
- 620
- Year
- 2010
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 4000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0630 BOLT-FLANGED,6X30 |
130BA0630 |
from US $0.95 |
||
|
130A
|
130A
130BB0610 BOLT-FLANGED,6X10 |
130BB0610 |
from US $1.11 |
||
|
11012
|
11012
11012-1627 CAP,FUEL GAUGE |
11012-1627 |
from US $8.24 |
||
|
11053
|
11053
11053-7512 BRACKET |
11053-7512 |
US $10.59 |
||
|
11061
|
11061
11061-0395 GASKET,FUEL TANK CAP |
11061-0395 |
from US $2.79 |
||
|
16087
|
16087
16087-0002 VALVE-CHECK |
16087-0002 |
from US $31.10 |
||
|
51001
|
51001
51001-0292 TANK-COMP-FUEL |
51001-0292 |
US $444.92 |
||
|
51001A
|
51001A
51001-0293 TANK-COMP-FUEL |
51001-0293 |
US $444.92 |
||
|
51048
|
51048
51048-0026 CAP-ASSY-TANK,FUEL |
51048-0026 |
US $13.01 |
||
|
52005
|
52005
52005-0738 GAUGE,FUEL |
52005-0738 |
from US $66.38 |
||
|
59071
|
59071
59071-3705 JOINT |
59071-3705 |
from US $5.13 |
||
|
92015
|
92015
92015-1675 NUT |
92015-1675 |
from US $2.69 |
||
|
92022
|
92022
92022-1690 WASHER |
92022-1690 |
from US $2.53 |
||
|
92037
|
92037
92037-1461 TUBE CLAMP |
92037-1461 |
from US $3.17 |
||
|
92072
|
92072
92072-030 BAND,SHORT |
92072-030 |
from US $3.01 |
||
|
92075
|
92075
92075-1787 DAMPER |
92075-1787 |
from US $3.96 |
||
|
92152
|
92152
92152-7511 COLLAR,7.02X10.32X15. |
92152-7511 |
US $2.23 |
||
|
92161
|
92161
92161-7508 DAMPER |
92161-7508 |
US $10.20 |
||
|
92161A
|
92161A
92161-7513 DAMPER |
92161-7513 |
US $9.86 |
||
|
92171
|
92171
92171-0290 CLAMP |
92171-0290 |
from US $1.90 |
||
|
92171A
|
92171A
92171-0515 CLAMP |
92171-0515 |
from US $3.17 |
||
|
92192
|
92192
92192-0067 TUBE,FUEL TANK-CHECK |
92192-0067 |
from US $1.71 |
||
|
92192A
|
92192A
92192-7512 TUBE,7X11X370 |
92192-7512 |
US $2.30 |
||
|
92192B
|
92192B
92192-7513 TUBE,7X11X225 |
92192-7513 |
US $3.32 |
