	Description	OEM Part #	Price
130	130 130BA0820 BOLT-FLANGED,8X20	130BA0820	from US $1.43
130B	130B 130BB1030 BOLT-FLANGED,10X30,BL	130BB1030	from US $1.43
132	132 132BA0825 BOLT-FLANGED-SMALL	132BA0825	from US $1.27
224	224 224AA0508 SCREW-PAN-WP-CROS	224AA0508	from US $0.94
11048	11048 11048-1245 BRACKET,REAR FRAME	11048-1245	from US $16.65
11055	11055 11055-1240 BRACKET,STEERING GEAR	11055-1240	US $10.86
32160	32160 32160-0004 FRAME-COMP,RR	32160-0004	from US $261.72
39112	39112 39112-1068 RODEND-TIE,STEERING GEAR,LH	39112-1068	from US $72.90
39112A	39112A 39112-1069 RODEND-TIE,STEERING GEAR,RH	39112-1069	from US $72.90
39114	39114 39114-0009 SHAFT-COMP-STRG	39114-0009	from US $216.17
39190	39190 39190-0005 SHAFT-ASSY-STEERING	39190-0005	from US $163.30
39191	39191 39191-0021 GEAR-ASSY-STEERING	39191-0021	from US $833.59
46079	46079 46079-1063 CONTACT,HORN SWITCH	46079-1063	from US $60.34
49006	49006 49006-1255 BOOT,STEERING SHAFT,L	49006-1255	from US $22.71
92015	92015 92015-1189 NUT,LOCK,10MM,BLACK	92015-1189	from US $3.96
92015B	92015B 92015-1864 NUT	92015-1864	from US $8.55
92022	92022 92022-1396 WASHER,10.5X26X2.3,BL	92022-1396	from US $1.90
92072	92072 92072-1239 BAND,L=188	92072-1239	from US $1.90
92150	92150 92150-1731 BOLT,FLANGED,10X100	92150-1731	from US $11.25
92153	92153 92153-1269 BOLT,SOCKET,10X23	92153-1269	from US $1.24
92160	92160 92160-1084 DAMPER,STEERING GEAR	92160-1084	from US $18.82
92161	92161 92161-0800 DAMPER	92161-0800	US $9.95
92172	92172 92172-0004 SCREW,6X14	92172-0004	from US $1.27
92210	92210 92210-1139 NUT	92210-1139	from US $2.53
92210A	92210A 92210-1397 NUT,POP,6MM,L=15	92210-1397	from US $2.85

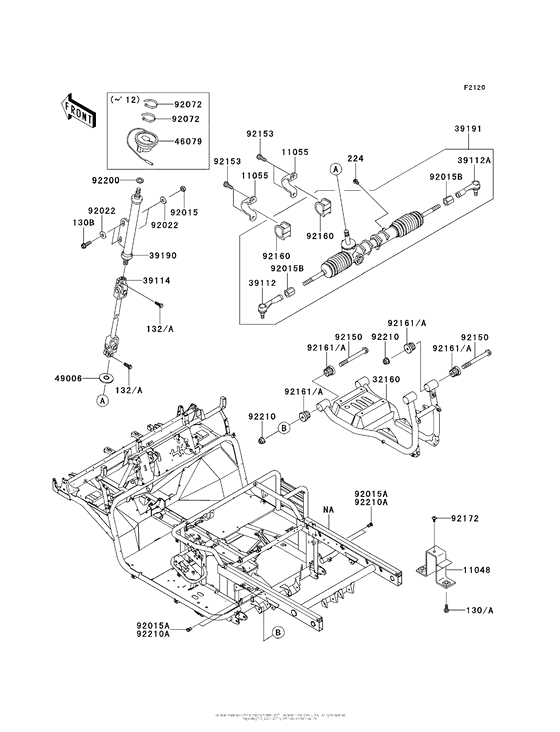

Frame Diagram Kawasaki KAF620 Mule 4000 USA 16149277-848456

Frame Diagram Kawasaki KAF620 Mule 4000 USA 16149277-848456
