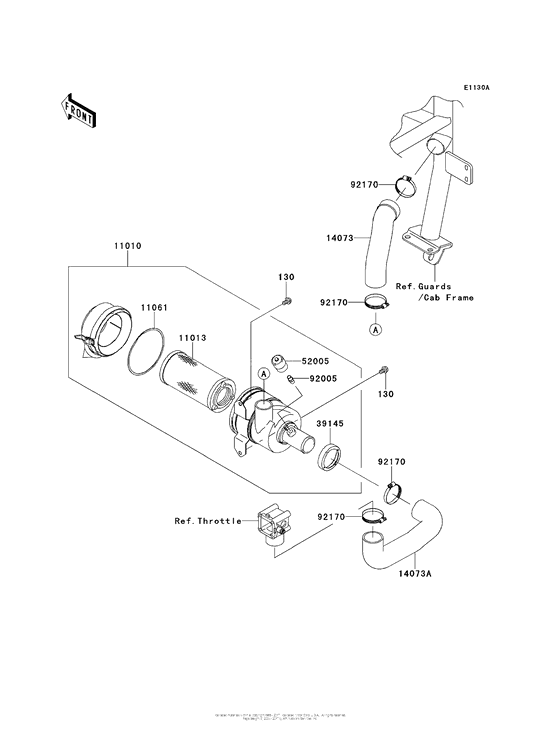

Air Cleaner (Pbf-Pdf) Diagram Kawasaki KAF620 Mule 4000
- Model code
- KAF620PDF
- Engine Capacity
- 620
- Year
- 2013
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 4000
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0814 BOLT-FLANGED |
130BB0814 |
from US $1.20 |
||
|
11010
|
11010
11010-0177 FILTER-ASSY-AIR |
11010-0177 |
US $134 |
||
|
11013
|
11013
11013-1290 ELEMENT-AIR FILTER |
11013-1290 |
US $369.84 |
||
|
11061
|
11061
11061-1078 GASKET |
11061-1078 |
from US $11.34 |
||
|
14073
|
14073
14073-0236 DUCT,BAR,RR-A/C |
14073-0236 |
US $15.75 |
||
|
14073A
|
14073A
14073-0277 DUCT |
14073-0277 |
US $41.34 |
||
|
39145
|
39145
39145-1133 TRIM-SEAL |
39145-1133 |
from US $4.76 |
||
|
52005
|
52005
52005-7502 GAUGE,AIR |
52005-7502 |
US $41.41 |
||
|
92005
|
92005
92005-1386 FITTING |
92005-1386 |
US $1.14 |
||
|
92170
|
92170
92170-1674 CLAMP |
92170-1674 |
from US $6.05 |
||
| replacement | |||||
|
92170
|
92170
92037-1523 CLAMP |
92037-1523 |
from US $11.80 |
||
