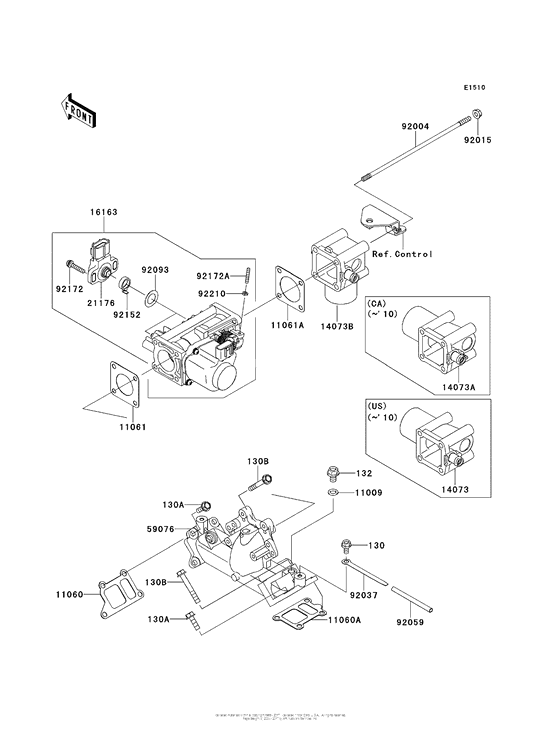

Throttle Diagram Kawasaki KAF620 Mule 4000
- Model code
- KAF620PDF
- Engine Capacity
- 620
- Year
- 2013
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 4000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130AA0612 BOLT,FLANGE,6X12 |
130AA0612 |
from US $1.05 |
||
|
130A
|
130A
130AA0620 BOLT-FLANGED,6X20 |
130AA0620 |
from US $1.11 |
||
|
130B
|
130B
130AA0645 BOLT-FLANGED |
130AA0645 |
from US $1.15 |
||
|
132
|
132
132BB0812 BOLT-FLANGED-SMALL |
132BB0812 |
from US $1.27 |
||
|
11009
|
11009
11009-1344 GASKET,OIL PIPE,8.2X1 |
11009-1344 |
from US $3.33 |
||
|
11060
|
11060
11060-2087 GASKET-INTAKE MANIF |
11060-2087 |
from US $2.74 |
||
|
11060A
|
11060A
11060-2088 GASKET-INTAKE MANIF |
11060-2088 |
from US $2.59 |
||
|
11061
|
11061
11061-2179 GASKET |
11061-2179 |
from US $1.87 |
||
|
11061A
|
11061A
11061-2180 GASKET |
11061-2180 |
from US $1.87 |
||
|
14073B
|
14073B
14073-2100 DUCT |
14073-2100 |
from US $71.08 |
||
|
16163
|
16163
16163-6002 THROTTLE-ASSY |
16163-6002 |
from US $1,013.99 |
||
|
21176
|
21176
21176-2112 SENSOR |
21176-2112 |
from US $150.08 |
||
|
59076
|
59076
59076-0718 MANIFOLD-INTAKE |
59076-0718 |
from US $188.18 |
||
|
92004
|
92004
92004-2161 STUD,6X200 |
92004-2161 |
from US $3.57 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92037
|
92037
92037-2006 CLAMP |
92037-2006 |
from US $0.62 |
||
|
92059
|
92059
92059-2011 TUBE |
92059-2011 |
from US $0.46 |
||
|
92093
|
92093
92093-2133 SEAL |
92093-2133 |
from US $4.67 |
||
|
92152
|
92152
92152-2093 COLLAR |
92152-2093 |
from US $3.27 |
||
|
92172
|
92172
92172-0254 SCREW |
92172-0254 |
from US $1.90 |
||
|
92172A
|
92172A
92172-2106 SCREW |
92172-2106 |
from US $2.17 |
||
|
92210
|
92210
92210-2120 NUT |
92210-2120 |
from US $0.78 |
