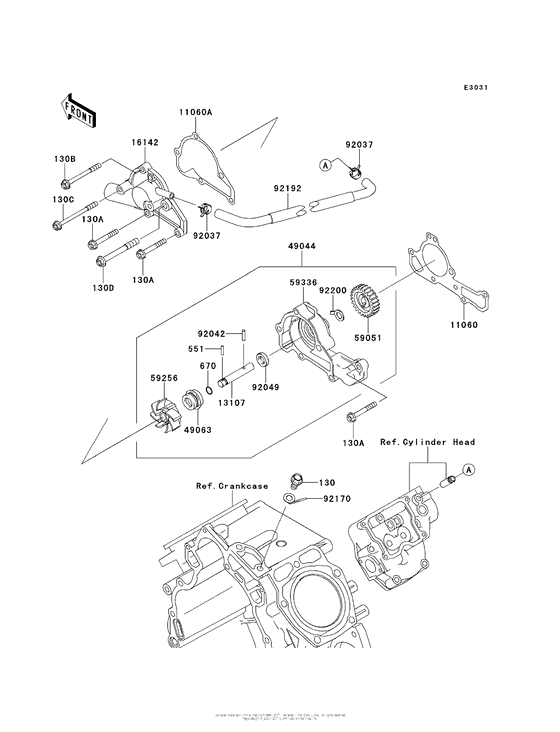

Water Pump Diagram Kawasaki KAF620 Mule 4000
- Model code
- KAF620PDF
- Engine Capacity
- 620
- Year
- 2013
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 4000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0816 BOLT-FLANGED |
130BA0816 |
from US $1.11 |
||
|
130A
|
130A
130CA0645 BOLT-FLANGED,6X45 |
130CA0645 |
from US $1.27 |
||
|
130B
|
130B
130CA0665 BOLT-FLANGED,6X65 |
130CA0665 |
from US $1.20 |
||
|
130C
|
130C
130CA0675 BOLT-FLANGED,6X75 |
130CA0675 |
from US $1.20 |
||
|
130D
|
130D
130CA0870 BOLT-FLANGED,8X70 |
130CA0870 |
from US $1.20 |
||
|
551
|
551
551A0314 PIN,DOWEL,3X14 |
551A0314 |
from US $1.11 |
||
|
670
|
670
670B1507 O RING,7MM |
670B1507 |
from US $1.62 |
||
|
11060
|
11060
11060-2450 GASKET,PUMP CASE |
11060-2450 |
from US $9.28 |
||
|
11060A
|
11060A
11060-2451 GASKET,PUMP COVER |
11060-2451 |
from US $6.36 |
||
|
13107
|
13107
13107-2097 SHAFT |
13107-2097 |
from US $7.32 |
||
|
16142
|
16142
16142-0729 COVER-PUMP |
16142-0729 |
from US $19.82 |
||
|
49044
|
49044
49044-2066 Water Pump |
49044-2066 |
from US $55.83 |
||
|
49063
|
49063
49063-1056
SEAL-MECHANICAL
|
49063-1056 |
— | ||
| replacement | |||||
|
49063
|
49063
49063-0002 SEAL-MECHANICAL |
49063-0002 |
from US $16.66 |
||
|
59051
|
59051
59051-2113 GEAR-SPUR |
59051-2113 |
from US $3.57 |
||
|
59256
|
59256
59256-2057 IMPELLER |
59256-2057 |
from US $2.65 |
||
|
59336
|
59336
59336-2052 CASE-PUMP |
59336-2052 |
from US $24.72 |
||
|
92037
|
92037
92037-1181 CLAMP |
92037-1181 |
from US $3 |
||
|
92042
|
92042
92042-014 PIN GEAR CHANGE DRUM |
92042-014 |
from US $0.75 |
||
|
92049
|
92049
92049-2111 SEAL-OIL |
92049-2111 |
from US $2.49 |
||
|
92170
|
92170
92170-2060 CLAMP |
92170-2060 |
from US $1.40 |
||
|
92192
|
92192
92192-2169 TUBE |
92192-2169 |
from US $6.68 |
||
|
92200
|
92200
92200-2044 WASHER |
92200-2044 |
from US $2.17 |
||
