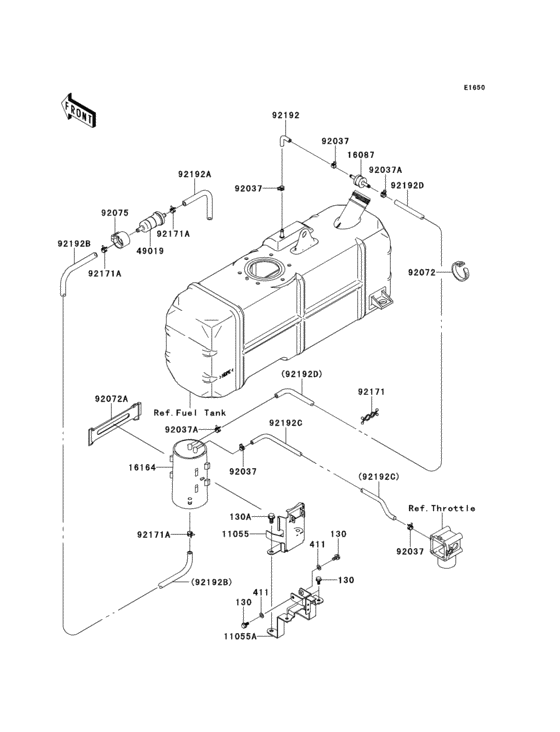

Fuel evaporative system Diagram Kawasaki KAF620 Mule 4000
- Model code
- KAF620PEF
- Engine Capacity
- 620
- Year
- 2014
- Sales region
- USA
- Colour
- Kmm.dark Royal Red (16M)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 4000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0612 BOLT-FLANGED,6X12 |
130BB0612 |
from US $1.43 |
||
|
130A
|
130A
130BB0816 BOLT-FLANGED |
130BB0816 |
from US $1.43 |
||
|
411
|
411
411AB0600 WASHER-PLAIN,(6.5x13x1) |
411AB0600 |
from US $0.63 |
||
|
11055
|
11055
11055-0263 BRACKET,UPP |
11055-0263 |
US $25.33 |
||
|
11055A
|
11055A
11055-0407 BRACKET,LWR |
11055-0407 |
US $18.99 |
||
|
16087
|
16087
16087-0703 VALVE-CHECK |
16087-0703 |
US $36.38 |
||
| replacement | |||||
|
16087
|
16087
16087-0008 VALVE-CHECK |
16087-0008 |
from US $28.93 |
||
|
16164
|
16164
16164-0007 CANISTER |
16164-0007 |
US $217.12 |
||
| replacements | |||||
|
16164
|
16164
16164-0013 CANISTER |
16164-0013 |
from US $217.12 |
||
|
16164
|
16164
16164-0018 Canister |
16164-0018 |
US $249.58 |
||
|
49019
|
49019
49019-1055
FILTER-FUEL
|
49019-1055 |
— | ||
| replacement | |||||
|
49019
|
49019
49019-0032 Filter-fuel |
49019-0032 |
from US $20.17 |
||
|
92037
|
92037
92037-1461 TUBE CLAMP |
92037-1461 |
from US $3.17 |
||
|
92037A
|
92037A
92037-1505 CLAMP,TUBE |
92037-1505 |
from US $3.17 |
||
|
92072
|
92072
92072-056 BAND,WIRING HARNESS |
92072-056 |
from US $3.01 |
||
|
92072A
|
92072A
92072-1306 BAND,BATTERY |
92072-1306 |
from US $8.55 |
||
|
92075
|
92075
92075-1853 DAMPER |
92075-1853 |
from US $8.08 |
||
|
92171
|
92171
92171-0476 CLAMP |
92171-0476 |
from US $1.90 |
||
|
92171A
|
92171A
92171-0515 CLAMP |
92171-0515 |
from US $3.17 |
||
|
92192
|
92192
92192-0067 TUBE,FUEL TANK-CHECK |
92192-0067 |
from US $1.71 |
||
|
92192C
|
92192C
92192-0909 TUBE,4.5X9.5X460 |
92192-0909 |
US $13.01 |
||
|
92192D
|
92192D
92192-1161 TUBE |
92192-1161 |
from US $4.98 |
||
