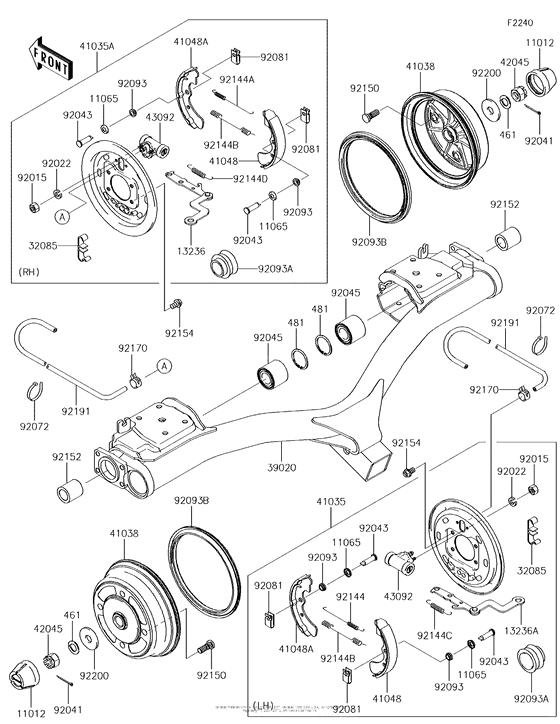

Rear Hubs/brakes Diagram Kawasaki KAF620 Mule 4000
- Model code
- KAF620PJF
- Engine Capacity
- 620
- Year
- 2018
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 4000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
461
|
461
461DA1800 WASHER-SPRING,18MM |
461DA1800 |
from US $1.09 |
||
|
481
|
481
481J5200 CIRCLIP |
481J5200 |
from US $6.24 |
||
|
11012
|
11012
11012-1969 CAP,WHEEL |
11012-1969 |
from US $5.33 |
||
|
11065
|
11065
11065-1175 CAP |
11065-1175 |
from US $3.11 |
||
|
13236
|
13236
13236-1355 LEVER-COMP,RR BRAKE P |
13236-1355 |
from US $26.78 |
||
|
13236A
|
13236A
13236-1356 LEVER-COMP,RR BRAKE P |
13236-1356 |
from US $27.53 |
||
|
32085
|
32085
32085-1298 STOPPER,REAR BRAKE LE |
32085-1298 |
from US $7.62 |
||
|
39020
|
39020
39020-0004 BRACKET-COMP-REAR SUS |
39020-0004 |
from US $952.05 |
||
|
41035
|
41035
41035-7506 PANEL-ASSY-BRAKE,RR,L |
41035-7506 |
from US $346.81 |
||
|
41035A
|
41035A
41035-7508 PANEL-ASSY-BRAKE,RR,R |
41035-7508 |
from US $321.12 |
||
|
41038
|
41038
41038-0035 DRUM,REAR BRAKE |
41038-0035 |
from US $219.28 |
||
|
41048
|
41048
41048-7502 SHOE-BRAKE |
41048-7502 |
from US $24.75 |
||
|
41048A
|
41048A
41048-7503 SHOE-BRAKE |
41048-7503 |
from US $24.75 |
||
|
42045
|
42045
42045018 NUT CASTLE,18MM |
42045018 |
from US $7.76 |
||
|
43092
|
43092
43092-1053 CYLINDER,REAR WHEEL |
43092-1053 |
from US $73.30 |
||
|
92015
|
92015
92015-1729 NUT,6MM |
92015-1729 |
from US $2.65 |
||
|
92022
|
92022
92022-1951 WASHER,SPRING,6MM |
92022-1951 |
from US $2.17 |
||
|
92041
|
92041
92041-1053 COTTER,4.0X35 |
92041-1053 |
from US $2.33 |
||
|
92043
|
92043
92043-1636 PIN |
92043-1636 |
from US $2.49 |
||
|
92045
|
92045
92045-0107 BEARING-BALL,25BWD02C |
92045-0107 |
US $91.05 |
||
| replacement | |||||
|
92045
|
92045
92045-1411 BEARING-BALL,25BWD02C |
92045-1411 |
US $83.91 |
||
|
92072
|
92072
92072-030 BAND,SHORT |
92072-030 |
from US $3.01 |
||
|
92081
|
92081
92081-1904 SPRING,SHOE CLAMP |
92081-1904 |
from US $4.90 |
||
|
92093
|
92093
92093-1532 SEAL |
92093-1532 |
from US $5.28 |
||
|
92093A
|
92093A
92093-1533 SEAL |
92093-1533 |
from US $14.03 |
||
|
92093B
|
92093B
92093-1543 SEAL,BS184.8X13.5ZS |
92093-1543 |
from US $68.40 |
||
|
92144
|
92144
92144-1299 SPRING,BRAKE,LH |
92144-1299 |
from US $5.13 |
||
|
92144A
|
92144A
92144-1300 SPRING,BRAKE,RH |
92144-1300 |
from US $5.18 |
||
|
92144B
|
92144B
92144-1301 SPRING,BRAKE |
92144-1301 |
from US $5.18 |
||
|
92144C
|
92144C
92144-1302 SPRING,ROD,LH |
92144-1302 |
from US $5.13 |
||
|
92144D
|
92144D
92144-1303 SPRING,ROD,RH |
92144-1303 |
from US $4.82 |
||
|
92150
|
92150
92150-1366 BOLT |
92150-1366 |
from US $4.90 |
||
|
92152
|
92152
92152-1276 COLLAR,25.1X38X40.8 |
92152-1276 |
from US $24.19 |
||
|
92154
|
92154
92154-0803 BOLT,FLANGED,10X16 |
92154-0803 |
from US $1.56 |
||
| replacement | |||||
|
92154
|
92154
92154-7268 Bolt,Flanged,10X16 |
92154-7268 |
US $4.39 |
||
|
92170
|
92170
92170-2042 CLAMP |
92170-2042 |
from US $1.77 |
||
|
92191
|
92191
92191-1525 TUBE,4.7X9.5X1100 |
92191-1525 |
US $9.64 |
||
|
92200
|
92200
92200-1474 WASHER,18.5X52X4.5 |
92200-1474 |
from US $4.67 |
||
