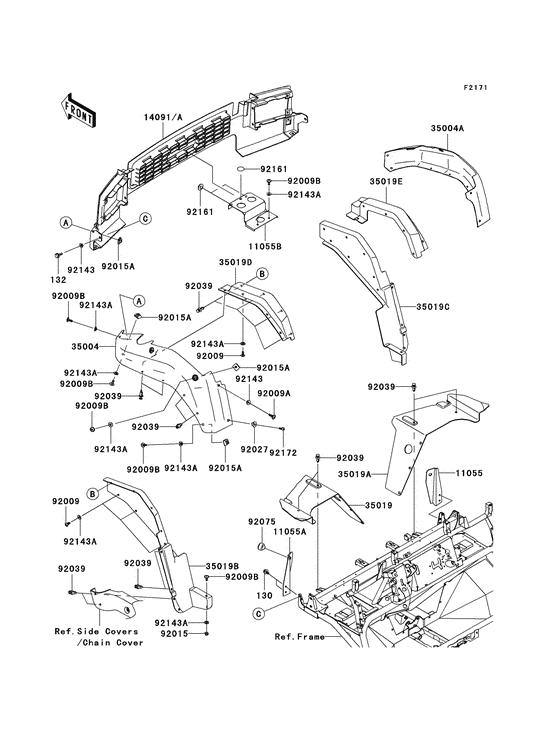

Front fender Diagram Kawasaki KAF620 Mule 4010 Trans 4X4
- Model code
- KAF620R9F
- Engine Capacity
- 620
- Year
- 2009
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 Trans 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0614 BOLT-FLANGED,6X14Bolt-flanged,6x14; |
130BB0614 |
from US $1.11 |
||
|
132
|
132
132BB0620 BOLT,6X20Bolt-flanged-small,6x20; |
132BB0620 |
from US $2.38 |
||
|
11055
|
11055
11055-0917 BRACKET |
11055-0917 |
US $34.05 |
||
|
11055A
|
11055A
11055-0918 BRACKET |
11055-0918 |
US $34.05 |
||
|
11055B
|
11055B
11055-0954 BRACKET |
11055-0954 |
US $46.90 |
||
|
14091
|
14091
14091-0818-16L COVER,FRONT GRILL,D.RCover,front grill,d.r.red; |
14091-0818-16L |
from US $110.40 |
||
|
14091A
|
14091A
14091-0818-286 COVER,FRONT GRILL,W.GCover,front grill,w.green; |
14091-0818-286 |
US $115.16 |
||
|
35004
|
35004
35004-0123-6Z FENDER-FRONT,SIDE,LH,Fender-front,side,lh,f.black; |
35004-0123-6Z |
US $93.02 |
||
|
35004A
|
35004A
35004-0124-6Z FENDER-FRONT,SIDE,RH,Fender-front,side,rh,f.black; |
35004-0124-6Z |
US $93.02 |
||
|
35019
|
35019
35019-0062 FLAP,FR,LHFlap,fr,lh; |
35019-0062 |
US $44.01 |
||
|
35019A
|
35019A
35019-0063 FLAP,FR,RHFlap,fr,rh; |
35019-0063 |
US $44.01 |
||
|
35019B
|
35019B
35019-0064 FLAP,SIDE,RR,LHFlap,side,rr,lh; |
35019-0064 |
US $79.82 |
||
|
35019C
|
35019C
35019-0065 FLAP,SIDE,RR,RHFlap,side,rr,rh; |
35019-0065 |
US $79.82 |
||
|
35019D
|
35019D
35019-0068 FLAP,SIDE,MIDDLE,LHFlap,side,middle,lh; |
35019-0068 |
US $56 |
||
|
35019E
|
35019E
35019-0069 FLAP,SIDE,MIDDLE,RHFlap,side,middle,rh; |
35019-0069 |
US $56 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPINGScrew,tapping,6x16; |
92009-1166 |
from US $2.88 |
||
|
92009A
|
92009A
92009-1256 SCREW,6X22,BLACKScrew,6x22,black; |
92009-1256 |
from US $1.74 |
||
|
92009B
|
92009B
92009-1621
SCREW
Screw,6x16; |
92009-1621 |
— | ||
| replacement | |||||
|
92009B
|
92009B
92009-1694 SCREWScrew,6x16; |
92009-1694 |
from US $5.13 |
||
|
92015
|
92015
92015-1675 NUTNut,lock,flanged,6mm; |
92015-1675 |
from US $2.69 |
||
|
92015A
|
92015A
92015-1678 NUTNut,clamp,6mm; |
92015-1678 |
from US $3.17 |
||
|
92027
|
92027
92027-1767 COLLAR |
92027-1767 |
from US $3.33 |
||
|
92039
|
92039
92039-1229
RIVET
|
92039-1229 |
— | ||
| replacement | |||||
|
92039
|
92039
92039-0776 RIVET |
92039-0776 |
from US $1.40 |
||
|
92075
|
92075
92075-015 DAMPER RUBB MAIN STAD |
92075-015 |
from US $3.17 |
||
|
92143
|
92143
92143-1057 COLLAR |
92143-1057 |
from US $3.17 |
||
|
92143A
|
92143A
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92161
|
92161
92161-1200 DAMPER,RUBBERDamper,rubber; |
92161-1200 |
from US $3.54 |
||
|
92172
|
92172
92172-1072 SCREW |
92172-1072 |
from US $1.11 |
||
