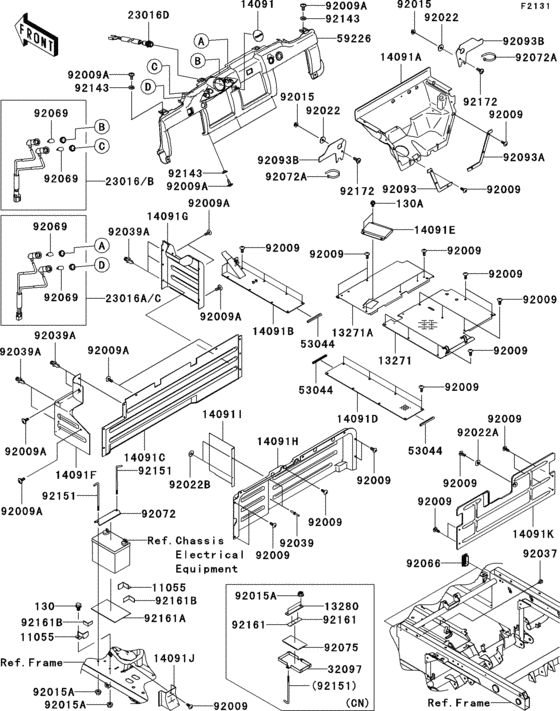

Frame fittings(1/2) Diagram Kawasaki KAF620 Mule 4010 Trans 4X4
- Model code
- KAF620R9F
- Engine Capacity
- 620
- Year
- 2009
- Sales region
- Canada
- Frame
- JK1AFCR1 9B500001 - 9B505000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 Trans 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130A
|
130A
130BB0610 BOLT-FLANGED,6X10 |
130BB0610 |
from US $1.11 |
||
|
13271
|
13271
13271-7602 PLATE,FLOOR,RH |
13271-7602 |
US $173.66 |
||
|
13271A
|
13271A
13271-7606 PLATE,FLOOR,RH |
13271-7606 |
US $91.95 |
||
|
14091A
|
14091A
14091-1378 COVER,FLOOR |
14091-1378 |
US $110.74 |
||
|
14091B
|
14091B
14091-1692 COVER,FLOOR,CNT,FR |
14091-1692 |
US $97.50 |
||
|
14091C
|
14091C
14091-7531 COVER,FRONT SEAT,CNT |
14091-7531 |
US $135.35 |
||
|
14091D
|
14091D
14091-7535 COVER,FLOOR,CNT,RR |
14091-7535 |
US $92.65 |
||
|
14091E
|
14091E
14091-7536 COVER |
14091-7536 |
US $20.55 |
||
|
14091F
|
14091F
14091-7541 COVER,FRONT SEAT,LH |
14091-7541 |
US $40.22 |
||
|
14091G
|
14091G
14091-7542 COVER,FRONT SEAT,RH |
14091-7542 |
US $55.64 |
||
|
14091H
|
14091H
14091-7549 COVER,FRONT SEAT,RR,L |
14091-7549 |
US $168.96 |
||
|
14091I
|
14091I
14091-7550 COVER,FUEL TANK |
14091-7550 |
US $23.55 |
||
|
14091J
|
14091J
14091-7551 COVER,PARKING CABLE |
14091-7551 |
US $13.70 |
||
|
23016
|
23016
23016-0018 LAMP-ASSY,PARKING&WAT |
23016-0018 |
from US $56.61 |
||
|
23016D
|
23016D
23016-0050 LAMP-ASSY,LED |
23016-0050 |
US $14.48 |
||
|
53044
|
53044
53044-7502 TRIM,L=111 |
53044-7502 |
from US $4.82 |
||
|
59226
|
59226
59226-0012-6Z PANEL-CONTROL,F.BLACK |
59226-0012-6Z |
US $120.71 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.88 |
||
|
92009A
|
92009A
92009-1621
SCREW
|
92009-1621 |
— | ||
| replacement | |||||
|
92009A
|
92009A
92009-1694 SCREW |
92009-1694 |
from US $5.13 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MM |
92015-1233 |
from US $3.90 |
||
|
92015A
|
92015A
92015-1406 NUT,8MM |
92015-1406 |
from US $2.85 |
||
|
92022
|
92022
92022-1346 WASHER,6.5X20X1.6.BLA |
92022-1346 |
from US $0.82 |
||
|
92022A
|
92022A
92022-1545 WASHER,7X18X1.2 |
92022-1545 |
from US $1.45 |
||
|
92022B
|
92022B
92022-1949 WASHER,4.3X12.5X1 |
92022-1949 |
from US $2.38 |
||
|
92037
|
92037
92037-1827 CLAMP,HOSE |
92037-1827 |
from US $6.21 |
||
|
92039
|
92039
92039-1150 RIVET |
92039-1150 |
from US $2.33 |
||
|
92039A
|
92039A
92039-1229
RIVET
|
92039-1229 |
— | ||
| replacement | |||||
|
92039A
|
92039A
92039-0776 RIVET |
92039-0776 |
from US $1.40 |
||
|
92066
|
92066
92066-7505 PLUG |
92066-7505 |
US $5.85 |
||
|
92069
|
92069
92069-1059 BULB,12V 1.7W |
92069-1059 |
from US $3.33 |
||
|
92072A
|
92072A
92072-3872 BAND,L=368.3 |
92072-3872 |
from US $1.90 |
||
|
92075
|
92075
92075-1076 DAMPER,BATTERY BASE |
92075-1076 |
from US $5.70 |
||
|
92093
|
92093
92093-1293 SEAL,FRONT FENDER,LH |
92093-1293 |
from US $5.90 |
||
|
92093A
|
92093A
92093-1294 SEAL,FRONT FENDER,RH |
92093-1294 |
from US $6.22 |
||
|
92093B
|
92093B
92093-1295 SEAL,LOWER COVER |
92093-1295 |
US $22.88 |
||
| replacement | |||||
|
92093B
|
92093B
92093-0181 SEAL,LOWER COVER |
92093-0181 |
from US $12.76 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92151
|
92151
92151-1897 BOLT,BATTERY |
92151-1897 |
from US $3.73 |
||
|
92161
|
92161
92161-0032 DAMPER |
92161-0032 |
US $4.90 |
||
|
92172
|
92172
92172-0002 SCREW,6X18 |
92172-0002 |
from US $1.27 |
||
