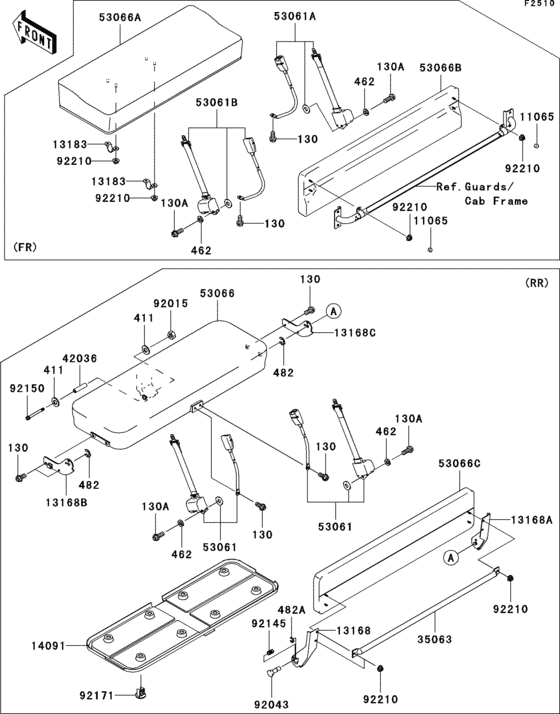

Seat(r9f-rafa) Diagram Kawasaki KAF620 Mule 4010 Trans 4X4
- Model code
- KAF620R9F
- Engine Capacity
- 620
- Year
- 2009
- Sales region
- Canada
- Frame
- JK1AFCR1 9B500001 - 9B505000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 Trans 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB1020 BOLT-FLANGED |
130BB1020 |
from US $1.40 |
||
|
130A
|
130A
130BB1025 BOLT-FLANGED,10X25 |
130BB1025 |
from US $1.43 |
||
|
411
|
411
411AB1200 WASHER-PLAIN |
411AB1200 |
from US $2.38 |
||
|
462
|
462
462DB1000 WASHER-SPRING,10MM |
462DB1000 |
from US $0.94 |
||
|
482
|
482
482EA0200 CIRCLIP-TYPE-E |
482EA0200 |
from US $2.96 |
||
|
482A
|
482A
482EA8000 CIRCLIP-TYPE-E |
482EA8000 |
from US $1.05 |
||
|
11065
|
11065
11065-7504 CAP |
11065-7504 |
US $1.99 |
||
|
13168
|
13168
13168-7502 LEVER,SEAT,TOP,LH |
13168-7502 |
US $64.72 |
||
|
13168A
|
13168A
13168-7503 LEVER,SEAT,TOP,RH |
13168-7503 |
US $64.72 |
||
|
13168B
|
13168B
13168-7504 LEVER,SEAT,LWR,LH |
13168-7504 |
US $53.96 |
||
|
13168C
|
13168C
13168-7505 LEVER,SEAT,LWR,RH |
13168-7505 |
US $53.96 |
||
|
13183
|
13183
13183-1400 PLATE,SEAT |
13183-1400 |
from US $8.40 |
||
|
14091
|
14091
14091-1740 COVER |
14091-1740 |
US $127.26 |
||
|
35063
|
35063
35063-7510 STAY,REAR BACK |
35063-7510 |
US $176.51 |
||
|
42036
|
42036
42036-7501 SLEEVE,12.1X20X85 |
42036-7501 |
US $10.42 |
||
|
53061
|
53061
53061-7506 BELT-SEAT,RR |
53061-7506 |
US $154.31 |
||
|
53061A
|
53061A
53061-7507 BELT-SEAT,FR,RH |
53061-7507 |
US $154.31 |
||
|
53061B
|
53061B
53061-7508 BELT-SEAT,FR,LH |
53061-7508 |
US $154.31 |
||
|
53066
|
53066
53066-0226-MA SEAT-ASSY,RR,LWR,BLAC |
53066-0226-MA |
US $772.34 |
||
|
53066A
|
53066A
53066-7502-MA SEAT-ASSY,FR,LWR,BLAC |
53066-7502-MA |
US $496.91 |
||
|
53066B
|
53066B
53066-7503-MA SEAT-ASSY,BLACK |
53066-7503-MA |
US $241.58 |
||
|
53066C
|
53066C
53066-7507-MA SEAT-ASSY,RR,BACK,BLA |
53066-7507-MA |
US $241.58 |
||
|
92015
|
92015
92015-1190 NUT,LOCK,12MM,BLACK |
92015-1190 |
from US $3.96 |
||
|
92043
|
92043
92043-7503 PIN |
92043-7503 |
US $5.44 |
||
|
92145
|
92145
92145-7507 SPRING |
92145-7507 |
US $1.99 |
||
|
92150
|
92150
92150-1895 BOLT,FLANGED,12X117 |
92150-1895 |
from US $7.76 |
||
|
92171
|
92171
92171-7509 CLAMP |
92171-7509 |
US $0.65 |
||
|
92210
|
92210
92210-0005 NUT,FLANGED,LOCK,8MM |
92210-0005 |
from US $2.30 |
