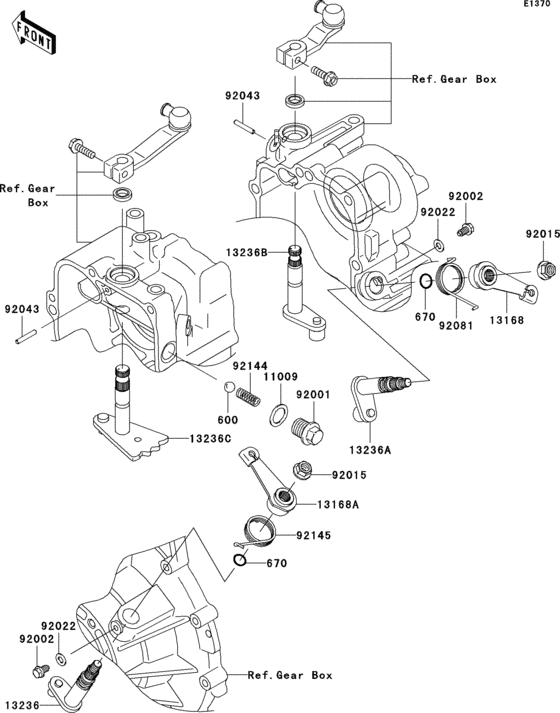

Gear change mechanism Diagram Kawasaki KAF620 Mule 4010 Trans 4X4
- Model code
- KAF620RBF
- Engine Capacity
- 620
- Year
- 2011
- Sales region
- USA
- Frame
- JK1AFCR1 BB507601 - 999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 Trans 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
600
|
600
600A1300 BALL, STEEL, 13/32IN |
600A1300 |
from US $0.95 |
||
|
670
|
670
670B2010 0 RING, 10MM |
670B2010 |
from US $1.87 |
||
|
11009
|
11009
11009-1008 GASKET,15.5X22X1 |
11009-1008 |
from US $3.01 |
||
|
13168
|
13168
13168-1268 LEVER |
13168-1268 |
from US $18.50 |
||
|
13168A
|
13168A
13168-1523 LEVER,DIFF LOCK |
13168-1523 |
from US $16.95 |
||
|
13236
|
13236
13236-1219 LEVER-COMP,DIFF LOCK |
13236-1219 |
from US $18.04 |
||
|
13236A
|
13236A
13236-1247 LEVER-COMP,CHANGE,2WD |
13236-1247 |
from US $34.99 |
||
|
13236B
|
13236B
13236-1360 LEVER-COMP,HI/LOW |
13236-1360 |
from US $32.66 |
||
|
13236C
|
13236C
13236-1366 LEVER-COMP,FR/RR |
13236-1366 |
from US $41.18 |
||
|
92001
|
92001
92001-1037 BOLT,NEUTRAL POSITION |
92001-1037 |
from US $9.19 |
||
|
92002
|
92002
92002-1962 BOLT,FLANGED-SMALL,6X |
92002-1962 |
from US $3.57 |
||
|
92015
|
92015
92015-1406 NUT,8MM |
92015-1406 |
from US $2.85 |
||
|
92022
|
92022
92022-077 WASHER,6.1X12X1 |
92022-077 |
from US $2.53 |
||
|
92043
|
92043
92043-1415 PIN |
92043-1415 |
from US $2.17 |
||
|
92081
|
92081
92081-1853 SPRING |
92081-1853 |
from US $5.13 |
||
|
92144
|
92144
92144-1702 SPRING,CHANGE LEVER,F |
92144-1702 |
from US $4.82 |
||
|
92145
|
92145
92145-0253 SPRING |
92145-0253 |
from US $3.27 |
