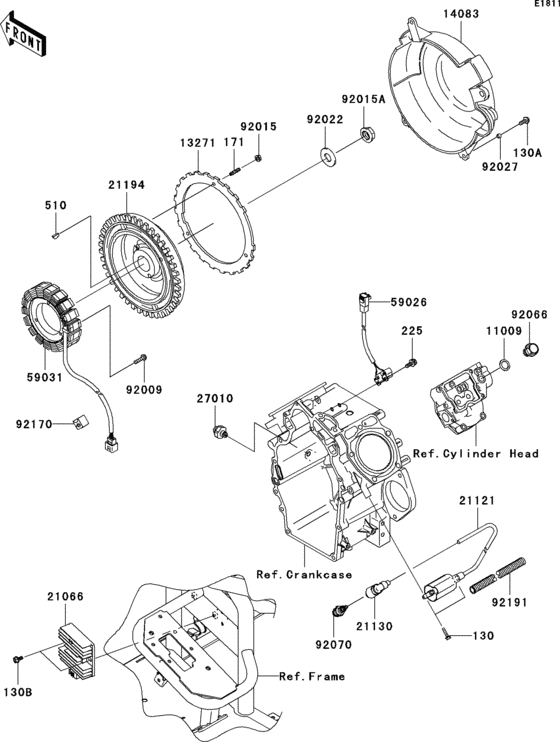

Generator/ignition coil Diagram Kawasaki KAF620 Mule 4010 Trans 4X4
- Model code
- KAF620RBF
- Engine Capacity
- 620
- Year
- 2011
- Sales region
- USA
- Frame
- JK1AFCR1 BB507601 - 999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 Trans 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130AA0520 BOLT-FLANGED |
130AA0520 |
from US $0.94 |
||
|
130A
|
130A
130AA0616 BOLT-FLANGED,6X16 |
130AA0616 |
from US $0.88 |
||
|
130B
|
130B
130BB0614 BOLT-FLANGED,6X14 |
130BB0614 |
from US $1.11 |
||
|
171
|
171
171BA0618 BOLT-STUD,6X18 |
171BA0618 |
from US $1.09 |
||
|
225
|
225
225AA0414 SCREW-PAN-WSP-CROS |
225AA0414 |
from US $0.94 |
||
|
510
|
510
510A5100 WOODRUFF KEY |
510A5100 |
from US $3.40 |
||
|
11009
|
11009
11009-2566 GASKET |
11009-2566 |
from US $0.97 |
||
|
13271
|
13271
13271-2269 PLATE |
13271-2269 |
from US $43.08 |
||
|
14083
|
14083
14083-2052 COVER-FLYWHEEL |
14083-2052 |
US $30.92 |
||
| replacement | |||||
|
14083
|
14083
14083-0001 Cover-Flywheel |
14083-0001 |
US $33.37 |
||
|
21121
|
21121
21121-2092 COIL-IGNITION |
21121-2092 |
from US $62.21 |
||
|
21130
|
21130
21130-2060 CAP-PLUG |
21130-2060 |
from US $11.02 |
||
|
27010
|
27010
27010-1313 SWITCH,OIL PRESSURE |
27010-1313 |
from US $32.42 |
||
|
59026
|
59026
59026-2065 COIL-PULSING |
59026-2065 |
US $59.22 |
||
| replacement | |||||
|
59026
|
59026
59026-0559 COIL-PULSING |
59026-0559 |
from US $52.42 |
||
|
92009
|
92009
92009-2273 SCREW |
92009-2273 |
from US $1.09 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92015A
|
92015A
92015-2167 NUT |
92015-2167 |
from US $4.82 |
||
|
92022
|
92022
92022-2229 WASHER |
92022-2229 |
from US $2.79 |
||
|
92027
|
92027
92027-2096 COLLAR |
92027-2096 |
from US $0.82 |
||
|
92066
|
92066
92066-2099 PLUG-DRAIN |
92066-2099 |
from US $2.79 |
||
|
92070
|
92070
92022-2229 WASHER |
92022-2229 |
from US $2.79 |
||
|
92170
|
92170
92170-2056 CLAMP |
92170-2056 |
from US $2.17 |
||
|
92191
|
92191
92191-2124 TUBE |
92191-2124 |
from US $2.33 |
||
