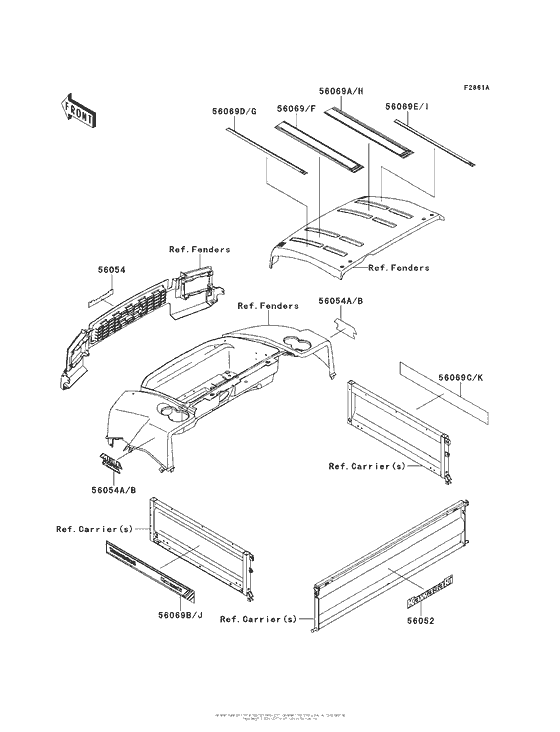

Decals (Rcfa/rdfa) Diagram Kawasaki KAF620 Mule 4010 Trans 4X4
- Model code
- KAF620RCFA
- Engine Capacity
- 620
- Year
- 2012
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 Trans 4X4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56052
|
56052
56052-1809 MARK,SIDE PLATE,KAWAS |
56052-1809 |
from US $54.59 |
||
|
56054
|
56054
56054-0216 MARK,FRONT GRILL,KAWA |
56054-0216 |
from US $20.84 |
||
|
56054A
|
56054A
56054-0783 MARK,FR FENDER,MULE40 |
56054-0783 |
from US $15.80 |
||
|
56069
|
56069
56069-1180 PATTERN,FR FENDER,LH |
56069-1180 |
from US $77.96 |
||
|
56069A
|
56069A
56069-1181 PATTERN,FR FENDER,RH |
56069-1181 |
from US $77.96 |
||
|
56069B
|
56069B
56069-1182 PATTERN,SIDE PLATE,RR |
56069-1182 |
from US $66.49 |
||
|
56069C
|
56069C
56069-1183 PATTERN,SIDE PLATE,RR |
56069-1183 |
from US $66.49 |
||
|
56069D
|
56069D
56069-1310 PATTERN,FR FENDER COV |
56069-1310 |
from US $40.82 |
||
|
56069E
|
56069E
56069-1311 PATTERN,FR FENDER COV |
56069-1311 |
from US $40.82 |
