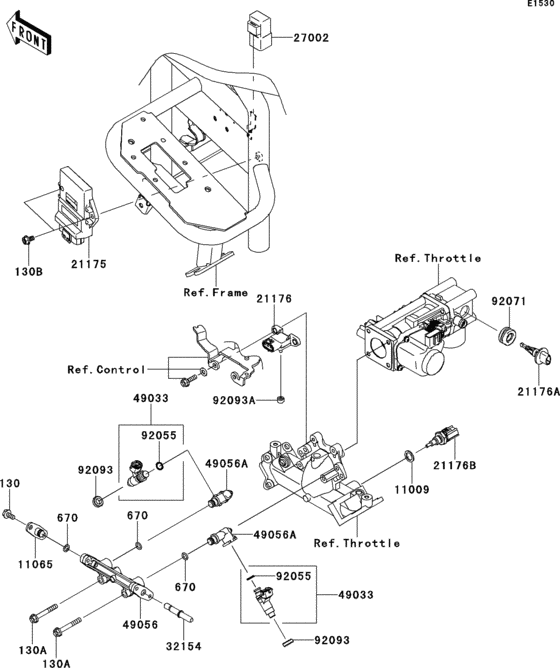

Fuel injection Diagram Kawasaki KAF620 Mule 4010 Trans 4X4
- Model code
- KAF620RDF
- Engine Capacity
- 620
- Year
- 2013
- Sales region
- USA
- Frame
- JK1AFCR1 DB516501 - 999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 Trans 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0612 BOLT-FLANGED,6X12 |
130BA0612 |
from US $0.79 |
||
|
130A
|
130A
130BA0645 BOLT-FLANGED |
130BA0645 |
from US $1.27 |
||
|
130B
|
130B
130BB0616 BOLT-FLANGED,6X16 |
130BB0616 |
from US $0.95 |
||
|
670
|
670
670E1508 O RING |
670E1508 |
from US $2.38 |
||
|
11009
|
11009
11009-1376 GASKET,12.4X17X1.5 |
11009-1376 |
from US $2.41 |
||
|
21176
|
21176
21176-1095 SENSOR,PRESSURE |
21176-1095 |
from US $178.99 |
||
|
21176A
|
21176A
21176-2106 SENSOR |
21176-2106 |
from US $24.96 |
||
|
21176B
|
21176B
21176-2111 SENSOR |
21176-2111 |
from US $32.34 |
||
|
27002
|
27002
27002-1088 RELAY-ASSY |
27002-1088 |
from US $39.34 |
||
|
49033
|
49033
49033-2060 NOZZLE-INJECTION |
49033-2060 |
from US $179.25 |
||
|
49056
|
49056
49056-2061 PIPE-INJECTION |
49056-2061 |
from US $44.16 |
||
|
49056A
|
49056A
49056-2062 PIPE-INJECTION |
49056-2062 |
from US $16.65 |
||
|
92055
|
92055
92055-1622 RING-O,INJECTION NOZZLE |
92055-1622 |
from US $1.27 |
||
|
92071
|
92071
92071-2140 GROMMET |
92071-2140 |
from US $3.48 |
||
| replacement | |||||
|
92071
|
92071
92071-0781 Grommet |
92071-0781 |
US $5.61 |
||
|
92093
|
92093
92093-2119 SEAL |
92093-2119 |
US $1.09 |
||
| replacement | |||||
|
92093
|
92093
92093-0718 Seal |
92093-0718 |
US $3.21 |
||
|
92093A
|
92093A
92093-2127 SEAL |
92093-2127 |
from US $0.78 |
||
