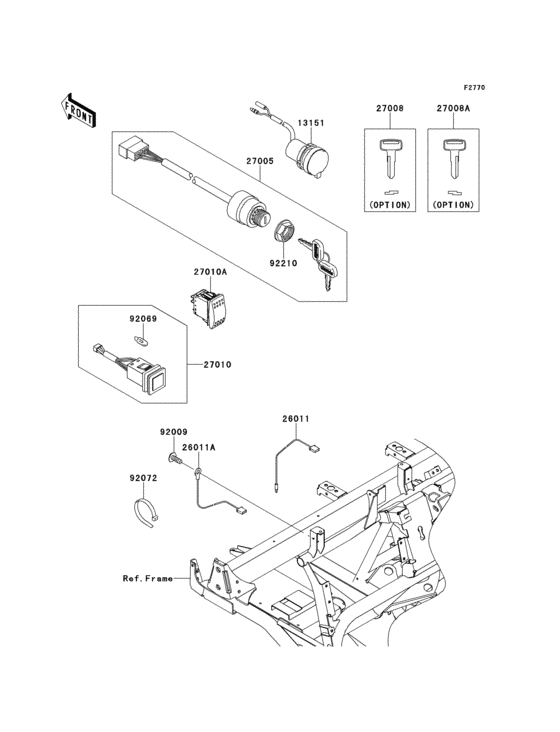

Ignition switch Diagram Kawasaki KAF620 Mule 4010 Trans 4X4
- Model code
- KAF620REF
- Engine Capacity
- 620
- Year
- 2014
- Sales region
- Canada
- Colour
- Kmm.dark Royal Red (16M)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 Trans 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13151
|
13151
13151-0003 SWITCH-COMP,D.C.TERMI |
13151-0003 |
from US $95.80 |
||
|
27005
|
27005
27005-0011 SWITCH-ASSY-IGNITION |
27005-0011 |
from US $76.36 |
||
|
27008
|
27008
27008-1153 KEY-LOCK,BLANK |
27008-1153 |
US $15.71 |
||
| replacement | |||||
|
27008
|
27008
27008-1041 KEY-LOCK,BLANK |
27008-1041 |
from US $12.83 |
||
|
27008A
|
27008A
27008-1157 KEY-LOCK,BLANK |
27008-1157 |
US $15.71 |
||
| replacement | |||||
|
27008A
|
27008A
27008-1042 KEY-LOCK,BLANK |
27008-1042 |
from US $12.83 |
||
|
27010
|
27010
27010-0105 SWITCH,HEAD LAMP |
27010-0105 |
US $61.40 |
||
| replacement | |||||
|
27010
|
27010
27010-0814 SWITCH,HEAD LAMP |
27010-0814 |
from US $37.94 |
||
|
27010A
|
27010A
27010-0734 SWITCH,HORN |
27010-0734 |
from US $31.01 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.88 |
||
|
92069
|
92069
92069-0036 BULB,12V 1.7W |
92069-0036 |
US $2.75 |
||
| replacement | |||||
|
92069
|
92069
92069-0083 BULB,12V 1.7W |
92069-0083 |
from US $2.79 |
||
|
92072
|
92072
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
|
92210
|
92210
92210-1264 NUT,IGNITION SWITCH |
92210-1264 |
from US $3.11 |
||
