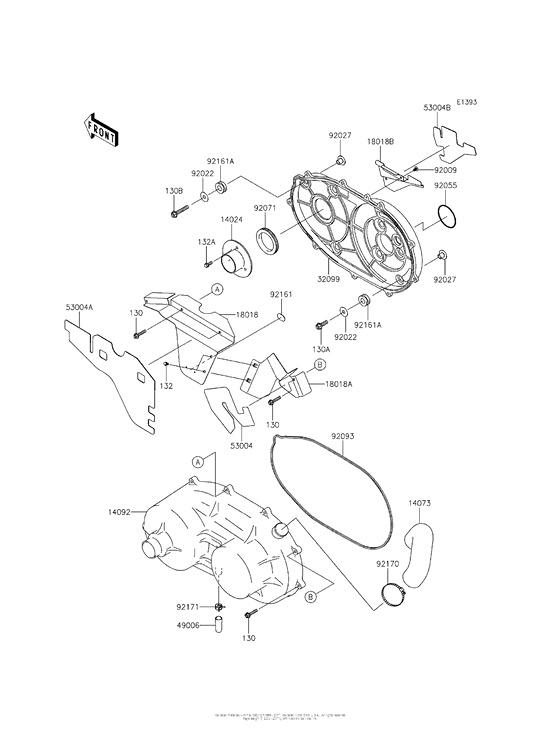

Converter Cover Diagram Kawasaki KAF620 Mule 4010 Trans 4X4
- Model code
- KAF620REF
- Engine Capacity
- 620
- Year
- 2014
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 Trans 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0630 BOLT-FLANGED,6X30,BLA |
130BB0630 |
from US $1.27 |
||
|
130A
|
130A
130BB0825 BOLT-FLANGED,8X25,BLA |
130BB0825 |
from US $1.27 |
||
|
130B
|
130B
130BB0845 BOLT-FLANGED,8X45 |
130BB0845 |
from US $1.43 |
||
|
132
|
132
132BA0610 BOLT-FLANGED-SMALL,6X |
132BA0610 |
from US $0.79 |
||
|
132A
|
132A
132BA0616 BOLT-FLANGED-SMALL,6X |
132BA0616 |
from US $0.79 |
||
|
14024
|
14024
14024-1554 COVER,FAN |
14024-1554 |
from US $26.90 |
||
|
14073
|
14073
14073-0234 DUCT,EXHAUST |
14073-0234 |
US $13.58 |
||
|
14092
|
14092
14092-1035 COVER,BELT CONVERTER |
14092-1035 |
from US $113.07 |
||
|
18018
|
18018
18018-0019 PLATE-HEAT GUARD |
18018-0019 |
from US $31.56 |
||
|
18018A
|
18018A
18018-0020 PLATE-HEAT GUARD |
18018-0020 |
from US $26.28 |
||
|
18018B
|
18018B
18018-0021 PLATE-HEAT GUARD |
18018-0021 |
from US $8.87 |
||
|
32099
|
32099
32099-0730 CASE,BELT CONVERTER |
32099-0730 |
from US $117.88 |
||
|
49006
|
49006
49006-1351 BOOT |
49006-1351 |
US $9.27 |
||
|
53004
|
53004
53004-0052 MAT |
53004-0052 |
from US $4.67 |
||
|
53004A
|
53004A
53004-0053 MAT |
53004-0053 |
from US $17.57 |
||
|
53004B
|
53004B
53004-0054 MAT |
53004-0054 |
from US $3.11 |
||
|
92009
|
92009
92009-1332 SCREW,TAPPING,5X10 |
92009-1332 |
from US $2.53 |
||
|
92022
|
92022
92022-101 WASHER SEAL PLATE |
92022-101 |
from US $2.49 |
||
|
92027
|
92027
92027-4015 COLLAR,FR COWLING |
92027-4015 |
from US $6.97 |
||
|
92055
|
92055
92055-1395 RING-O,CRANKCASE SIDE |
92055-1395 |
from US $2.79 |
||
|
92071
|
92071
92071-1212 GROMMET,CONVERTER CAS |
92071-1212 |
from US $6.22 |
||
|
92093
|
92093
92093-0582 SEAL,BELT CONVERTER C |
92093-0582 |
from US $8.87 |
||
|
92161
|
92161
92161-0406 DAMPER |
92161-0406 |
from US $1.43 |
||
|
92161A
|
92161A
92161-1484 DAMPER |
92161-1484 |
from US $1.56 |
||
|
92170
|
92170
92170-1764 CLAMP |
92170-1764 |
from US $12.05 |
||
|
92171
|
92171
92171-1277 CLAMP |
92171-1277 |
from US $1.58 |
