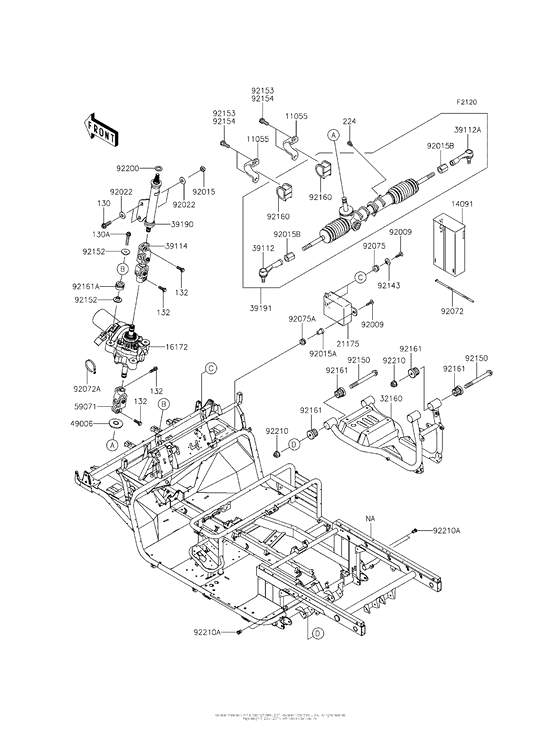

Frame Diagram Kawasaki KAF620 Mule 4010 Trans 4X4
- Model code
- KAF620REF
- Engine Capacity
- 620
- Year
- 2014
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 Trans 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA1030 BOLT-FLANGED,10X30 |
130BA1030 |
from US $1.40 |
||
|
130A
|
130A
130CA0845 BOLT-FLANGED,8X45 |
130CA0845 |
from US $1.40 |
||
|
132
|
132
132BA0825 BOLT-FLANGED-SMALL |
132BA0825 |
from US $1.27 |
||
|
224
|
224
224AA0508 SCREW-PAN-WP-CROS |
224AA0508 |
from US $0.94 |
||
|
11055
|
11055
11055-1240 BRACKET,STEERING GEAR |
11055-1240 |
US $10.86 |
||
|
14091
|
14091
14091-7560 COVER,ECU |
14091-7560 |
from US $27.22 |
||
|
16172
|
16172
16172-0028 ACTUATOR |
16172-0028 |
from US $1,531.87 |
||
|
21175
|
21175
21175-7501 CONTROL UNIT-ELECTRON |
21175-7501 |
from US $632.97 |
||
|
32160
|
32160
32160-0004 FRAME-COMP,RR |
32160-0004 |
from US $261.72 |
||
|
39112
|
39112
39112-1068 RODEND-TIE,STEERING GEAR,LH |
39112-1068 |
from US $72.90 |
||
|
39112A
|
39112A
39112-1069 RODEND-TIE,STEERING GEAR,RH |
39112-1069 |
from US $72.90 |
||
|
39114
|
39114
39114-0019 SHAFT-COMP-STRG |
39114-0019 |
from US $106.73 |
||
|
39190
|
39190
39190-7501 SHAFT-ASSY-STEERING |
39190-7501 |
from US $163.30 |
||
|
39191
|
39191
39191-0021 GEAR-ASSY-STEERING |
39191-0021 |
from US $833.59 |
||
|
49006
|
49006
49006-1255 BOOT,STEERING SHAFT,L |
49006-1255 |
from US $22.71 |
||
|
59071
|
59071
59071-7501 JOINT |
59071-7501 |
from US $96.83 |
||
|
92009
|
92009
92009-1465 SCREW |
92009-1465 |
from US $2.53 |
||
|
92015
|
92015
92015-1189 NUT,LOCK,10MM,BLACK |
92015-1189 |
from US $3.96 |
||
|
92015A
|
92015A
92015-1692 NUT,RUBBER,6MM |
92015-1692 |
from US $4.80 |
||
|
92015B
|
92015B
92015-1864 NUT |
92015-1864 |
from US $8.55 |
||
|
92022
|
92022
92022-044 WASHER-PL-10.5X26X2.3 |
92022-044 |
from US $3.20 |
||
|
92072
|
92072
92072-030 BAND,SHORT |
92072-030 |
from US $3.01 |
||
|
92072A
|
92072A
92072-056 BAND,WIRING HARNESS |
92072-056 |
from US $3.01 |
||
|
92075
|
92075
92075-1123 DAMPER, HEAD LMP FITT |
92075-1123 |
from US $3.17 |
||
|
92075A
|
92075A
92075-294 DAMPER RUBBER,HORN MO |
92075-294 |
from US $2.85 |
||
|
92143
|
92143
92143-1025 COLLAR,L=6.5 |
92143-1025 |
from US $3.27 |
||
|
92150
|
92150
92150-1731 BOLT,FLANGED,10X100 |
92150-1731 |
from US $11.25 |
||
|
92152
|
92152
92152-2149 COLLAR,8.5X30X10.6 |
92152-2149 |
from US $4.67 |
||
|
92153
|
92153
92153-1269 BOLT,SOCKET,10X23 |
92153-1269 |
from US $1.24 |
||
|
92160
|
92160
92160-1084 DAMPER,STEERING GEAR |
92160-1084 |
from US $18.82 |
||
|
92161
|
92161
92161-0800 DAMPER |
92161-0800 |
US $9.95 |
||
|
92161A
|
92161A
92161-7517 DAMPER,ACTUATOR |
92161-7517 |
US $4.13 |
||
|
92200
|
92200
92200-0460 WASHER,15X25X1.6 |
92200-0460 |
from US $1.71 |
||
|
92210
|
92210
92210-1139 NUT |
92210-1139 |
from US $2.53 |
||
|
92210A
|
92210A
92210-1397 NUT,POP,6MM,L=15 |
92210-1397 |
from US $2.85 |
