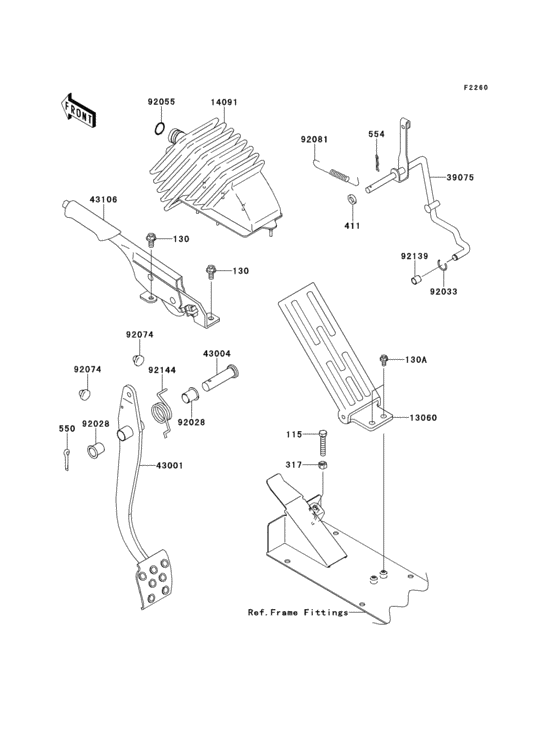

Brake pedal/throttle lever Diagram Kawasaki KAF620 Mule 4010 Trans 4X4 Camo
- Model code
- KAF620SEF
- Engine Capacity
- 620
- Year
- 2014
- Sales region
- USA
- Colour
- Camouflage Realtree Apg (16N)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 Trans 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
115
|
115
115AA0840 BOLT-SMALL-UPSET,8X40 |
115AA0840 |
from US $1.09 |
||
|
130
|
130
130AA0816 BOLT-FLANGED |
130AA0816 |
from US $1.24 |
||
|
130A
|
130A
130AB0612 BOLT-FLANGED,6X12 |
130AB0612 |
from US $1.02 |
||
|
317
|
317
317BA0800 NUT-HEX-SMALL,8MM |
317BA0800 |
from US $0.95 |
||
|
411
|
411
411AA1000 WASHER-PLAIN,10MM |
411AA1000 |
from US $0.72 |
||
|
550
|
550
550AA2525 PIN-COTTER,2.5X25 |
550AA2525 |
from US $0.63 |
||
|
554
|
554
554DA1000 PIN-SNAP,10MM |
554DA1000 |
from US $0.91 |
||
|
13060
|
13060
13060-0023 PEDAL,THROTTLE |
13060-0023 |
from US $27.84 |
||
|
14091
|
14091
14091-0067 COVER,PARKING LEVER |
14091-0067 |
US $88.01 |
||
|
39075
|
39075
39075-0016 LEVER-THROTTLE |
39075-0016 |
from US $43.86 |
||
|
43001
|
43001
43001-1320 LEVER-BRAKE,PEDAL |
43001-1320 |
from US $50.23 |
||
|
43004
|
43004
43004-1128 SHAFT-BRAKE |
43004-1128 |
from US $12.12 |
||
|
43106
|
43106
43106-0056 LEVER-ASSY-PARKING BR |
43106-0056 |
US $176.02 |
||
| replacement | |||||
|
43106
|
43106
43106-0004 LEVER-ASSY-PARKING BR |
43106-0004 |
from US $157.76 |
||
|
92028
|
92028
92028-1571 BUSHING |
92028-1571 |
from US $6.54 |
||
|
92033
|
92033
92033-1247 RING-SNAP |
92033-1247 |
from US $2.38 |
||
|
92055
|
92055
92055-1633 RING-O,BEVEL |
92055-1633 |
from US $7.82 |
||
|
92074
|
92074
92074-028 PLUG,RUBBER |
92074-028 |
from US $2.85 |
||
|
92081
|
92081
92081-1922 SPRING |
92081-1922 |
from US $3.27 |
||
|
92139
|
92139
92139-0308 BUSHING |
92139-0308 |
from US $1.71 |
||
|
92144
|
92144
92144-1536 SPRING,BRAKE PEDAL RE |
92144-1536 |
from US $5.13 |
||
