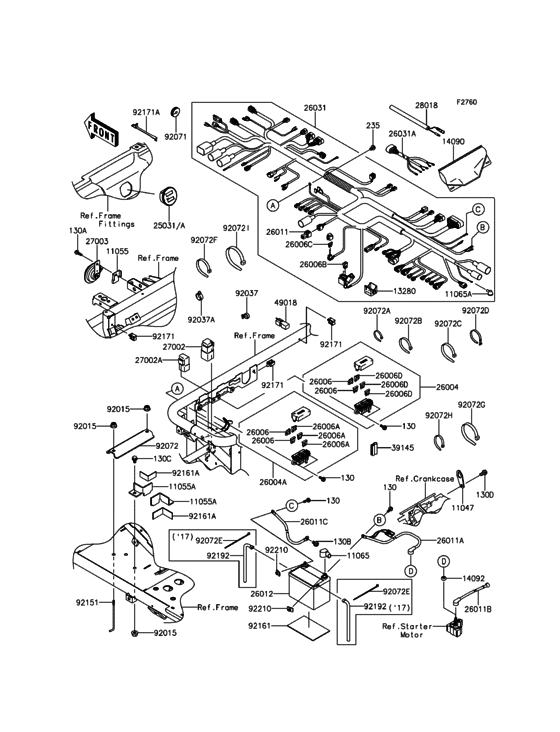

Chassis Electrical Equipment Diagram Kawasaki KAF620 Mule 4010 Trans 4X4 Camo
- Model code
- KAF620SFF
- Engine Capacity
- 620
- Year
- 2015
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 Trans 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130A
|
130A
130BA0620 BOLT-FLANGED,6X20 |
130BA0620 |
from US $1.11 |
||
|
130B
|
130B
130BA0812 BOLT-FLANGED |
130BA0812 |
from US $1.27 |
||
|
130C
|
130C
130BA0814 BOLT-FLANGED,8X14 |
130BA0814 |
from US $0.95 |
||
|
130D
|
130D
130BA0816 BOLT-FLANGED |
130BA0816 |
from US $1.11 |
||
|
235
|
235
235AA0610 SCREW-PAN-WP-CROS |
235AA0610 |
from US $1.11 |
||
|
11047
|
11047
11047-2056-9H BRACKET |
11047-2056-9H |
from US $1.71 |
||
|
11055
|
11055
11055-0167 BRACKET,HORN |
11055-0167 |
US $4.57 |
||
|
11055A
|
11055A
130BA0616 BOLT-FLANGED,6X16 |
130BA0616 |
from US $0.79 |
||
|
13280
|
13280
13280-7508 HOLDER |
13280-7508 |
US $3.96 |
||
|
14090
|
14090
14090-1611 COVER,COUPLER |
14090-1611 |
from US $6.18 |
||
|
14092
|
14092
14092-0851 COVER,MAGNETIC SW. |
14092-0851 |
from US $1.56 |
||
|
25031
|
25031
25031-0724 METER-ASSY |
25031-0724 |
US $148.84 |
||
| replacements | |||||
|
25031
|
25031
25031-0829 Meter-Assy |
25031-0829 |
US $197.28 |
||
|
25031
|
25031
25031-1397 Meter-Assy |
25031-1397 |
US $133.50 |
||
|
26004
|
26004
26004-0018 FUSE-ASSY |
26004-0018 |
from US $25.66 |
||
|
26006
|
26006
26006-0004 FUSE,BLADE,30A,GREENA |
26006-0004 |
from US $3.27 |
||
|
26006A
|
26006A
26006-0005 FUSE,BLADE,10A,RED |
26006-0005 |
from US $3.27 |
||
|
26006B
|
26006B
26006-0014 FUSE,40A |
26006-0014 |
from US $4.90 |
||
|
26006C
|
26006C
26006-0015 FUSE,7.5A |
26006-0015 |
US $6.72 |
||
|
26006D
|
26006D
26006-1051 FUSE,BLADE,20A,YELLOW |
26006-1051 |
from US $3.33 |
||
|
26011
|
26011
26011-0037 WIRE-LEAD |
26011-0037 |
from US $10.18 |
||
|
26012
|
26012
26012-0107
BATTERY,12V 14AH
|
26012-0107 |
— | ||
|
27002
|
27002
27002-1068 RELAY-ASSY |
27002-1068 |
from US $51.55 |
||
|
27002A
|
27002A
27002-1088 RELAY-ASSY |
27002-1088 |
from US $39.34 |
||
|
27003
|
27003
27003-1330 HORN |
27003-1330 |
from US $39.94 |
||
|
49018
|
49018
49018-0005 DIODE |
49018-0005 |
from US $29.17 |
||
|
92015
|
92015
92015-1406 NUT,8MM |
92015-1406 |
from US $2.85 |
||
|
92037
|
92037
92037-1163 CLAMPL=58 |
92037-1163 |
from US $3.96 |
||
|
92037A
|
92037A
92037-1827 CLAMP,HOSE |
92037-1827 |
from US $6.21 |
||
|
92071
|
92071
92071-1136 GROMMET |
92071-1136 |
from US $4.51 |
||
|
92072A
|
92072A
92072-030 BAND,SHORT |
92072-030 |
from US $3.01 |
||
|
92072B
|
92072B
92072-031 BAND,MIDDLE |
92072-031 |
from US $3.01 |
||
|
92072C
|
92072C
92072-032 BAND,LONG |
92072-032 |
from US $3.01 |
||
|
92072D
|
92072D
92072-056 BAND,WIRING HARNESS |
92072-056 |
from US $3.01 |
||
|
92072F
|
92072F
92072-1195 BAND,L=185 |
92072-1195 |
from US $2.07 |
||
|
92072G
|
92072G
92072-1237 BAND,L=250 |
92072-1237 |
from US $2.74 |
||
|
92072H
|
92072H
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
|
92072I
|
92072I
92072-3872 BAND,L=368.3 |
92072-3872 |
from US $1.90 |
||
|
92151
|
92151
92151-1897 BOLT,BATTERY |
92151-1897 |
from US $3.73 |
||
|
92161
|
92161
92161-0578 DAMPER |
92161-0578 |
US $5.54 |
||
|
92171
|
92171
92171-0290 CLAMP |
92171-0290 |
from US $1.90 |
||
|
92171A
|
92171A
92171-1365 CLAMP |
92171-1365 |
from US $2.49 |
||
|
92210
|
92210
92210-1352 NUT,PLATE,6MM |
92210-1352 |
from US $1.43 |
||
