Component List KAF620 Mule 4010 Trans 4X4 Camo
Gear Box

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
130	130 130AA0610 BOLT-FLANGED,6X10	130AA0610	from US $0.82
130A	130A 130AA0614 BOLT-FLANGED	130AA0614	from US $0.82
130B	130B 130BA0612 BOLT-FLANGED,6X12	130BA0612	from US $0.79
130C	130C 130BA0614 BOLT-FLANGED,6X14	130BA0614	from US $0.79
130D	130D 130BA0635 BOLT,FLANGED,6X35	130BA0635	from US $1.11
130E	130E 130BA0820 BOLT-FLANGED,8X20	130BA0820	from US $1.43
130F	130F 130CA0620 BOLT-FLANGED,6X20	130CA0620	from US $1.11
132	132 132BA0860 BOLT-FLANGED-SMALL	132BA0860	from US $1.43
132A	132A 132BB0614 BOLT-FLANGED-SMALL,6X	132BB0614	from US $1.43
411	411 411AA1000 WASHER-PLAIN,10MM	411AA1000	from US $0.72
601	601 601B6007 BEARING-BALL	601B6007	from US $22.61
601A	601A 601B6303 BEARING BALL #6303	601B6303	from US $9.67
601B	601B 601B6303U BEARING-BALL	601B6303U	from US $12.60
670	670 670D1510 0 RING,10MM	670D1510	from US $2.85
11056	11056 11060-1310 GASKET,GEAR CASE COVE	11060-1310	from US $10.89
11060A	11060A 11060-1966 GASKET	11060-1966	from US $1.56
13151	13151 13151-1093 SWITCH-COMP	13151-1093	from US $34.68
13236	13236 13236-1363 LEVER-COMP	13236-1363	from US $39.82
13236A	13236A 13236-1372 LEVER-COMP	13236-1372	from US $44.64
13271	13271 13271-1604 PLATE	13271-1604	from US $29.09
14044	14044 14044-0003 HOLDER-CABLE	14044-0003	from US $8.24
14044A	14044A 14044-0004 HOLDER-CABLE	14044-0004	from US $9.01
14044B	14044B 14044-1075 HOLDER-CABLE,HI/LOW	14044-1075	from US $22.55
14044C	14044C 14044-1098 HOLDER-CABLE	14044-1098	from US $38.10
14055A	14055A 14055-1110 CASE-GEAR,RH	14055-1110	from US $216.17
	replacement
14055A	14055A 14057-0011 CASE-GEAR,RH	14057-0011	US $303.69
14069	14069 14069-1051 BREATHER	14069-1051	from US $7.44
14090	14090 14090-1238 COVER,GEAR CASE,HI/LO	14090-1238	from US $178.85
16115	16115 16115-1060 CAP-OIL FILLER	16115-1060	from US $8.24
92005	92005 92005-1127 FITTING,BREATHER	92005-1127	from US $11.88
92009	92009 92009-1290 SCREW	92009-1290	from US $15.09
92015	92015 92015-1432 NUT,8MM	92015-1432	from US $3.80
92027	92027 92027-1568 COLLAR	92027-1568	from US $1.40
92028	92028 92028-132 BUSHING	92028-132	from US $23.64
92037	92037 92037-1505 CLAMP,TUBE	92037-1505	from US $3.17
92037A	92037A 92171-0652 CLAMP	92171-0652	from US $1.27
92043	92043 92043-1263 PIN,6.2X8X14	92043-1263	from US $0.75
92045	92045 92045-1142 BEARING-BALL,TMB304CC	92045-1142	from US $32.04
92045A	92045A 92045-1162 BEARING-BALL	92045-1162	from US $40.28
92045B	92045B 92045-1207 BEARING-BALL,62/28	92045-1207	from US $19.30
92045C	92045C 92045-1213 BEARING-BALL	92045-1213	from US $44.78
92045D	92045D 92045-1285 BEARING-BALL	92045-1285	from US $20.75
92049	92049 92049-1297 SEAL-OIL,TC28X47X7	92049-1297	from US $8.24
92051	92051 92051-005 OIL SEAL,TB13225.5	92051-005	from US $6.57
92055	92055 92055-2185 RING-O,20MM	92055-2185	from US $1.25
92065	92065 92065-058 GASKET	92065-058	from US $3.37
92067	92067 92067-001 PLUG, OIL DRAIN	92067-001	from US $3.73
92087	92087 92087-1058 BUSHING-METER GEAR	92087-1058	from US $4.82
92143	92143 92143-1120 COLLAR,66X70X11	92143-1120	from US $11.04
92143A	92143A 92143-1642 COLLAR,8.5X15X9	92143-1642	from US $3.33
92172	92172 92172-0717 SCREW,4X6	92172-0717	from US $0.78
92192	92192 92192-1643 TUBE	92192-1643	from US $7.32

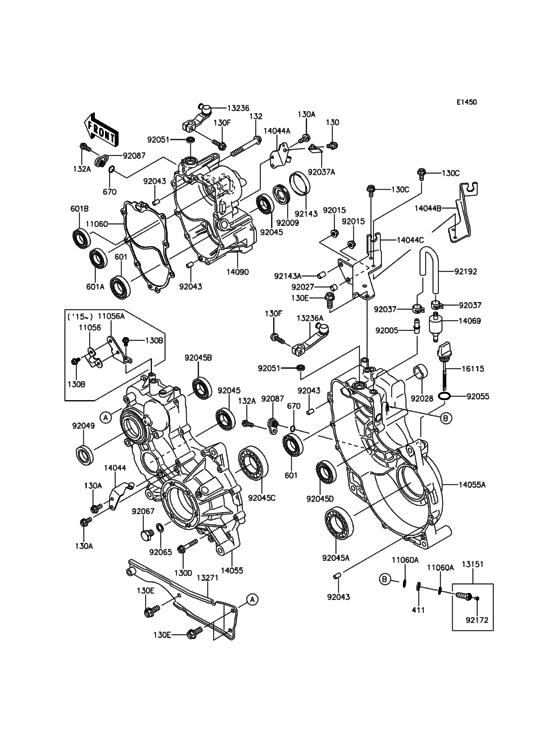

Gear Box Diagram Kawasaki KAF620 Mule 4010 Trans 4X4 Camo U.S.A. 16088413-847405

Gear Box Diagram Kawasaki KAF620 Mule 4010 Trans 4X4 Camo U.S.A. 16088413-847405
