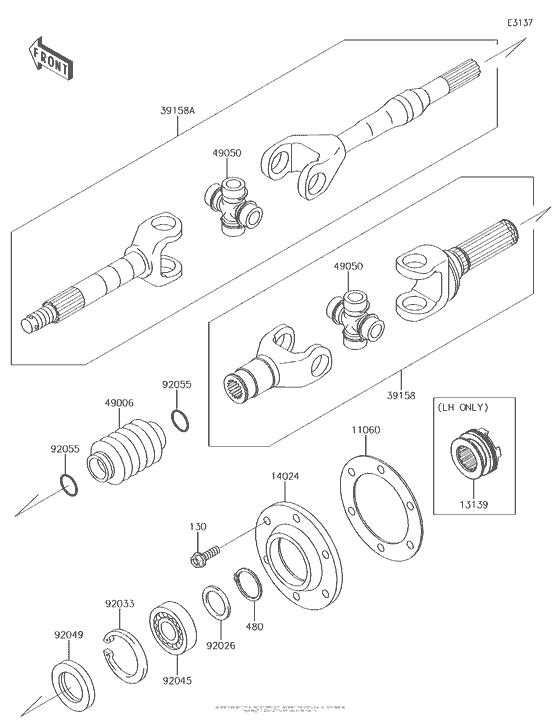

Drive Shaft-Rear Diagram Kawasaki KAF620 Mule 4010 Trans 4X4 Camo
- Model code
- KAF620SFF
- Engine Capacity
- 620
- Year
- 2015
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 Trans 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0825 BOLT-FLANGED,8X25 |
130BA0825 |
from US $1.27 |
||
|
480
|
480
480J2800 CIRCLIP 28MM |
480J2800 |
from US $1.43 |
||
|
11060
|
11060
11060-1251 GASKET,DRIVESHAFT COV |
11060-1251 |
from US $8.09 |
||
|
13139
|
13139
13139-0009 SHIFTER |
13139-0009 |
from US $62.52 |
||
|
14024
|
14024
14024-1560 COVER,DRIVESHAFT |
14024-1560 |
from US $319.57 |
||
|
39158
|
39158
39158-1119 SHAFT-ASSY-DRIVE,INSIDE |
39158-1119 |
US $495.19 |
||
|
39158A
|
39158A
39158-1120 SHAFT-ASSY-DRIVE |
39158-1120 |
from US $465.05 |
||
|
49006
|
49006
49006-1257 BOOT,DRIVE SHAFT |
49006-1257 |
from US $30.48 |
||
|
49050
|
49050
49050-0034 SPIDER |
49050-0034 |
from US $132.31 |
||
|
92026
|
92026
92026-1489 SPACER,28.1X38X2.6 |
92026-1489 |
from US $2.65 |
||
|
92033
|
92033
92033-1274 RING-SNAP |
92033-1274 |
from US $5.60 |
||
|
92045
|
92045
92045-1208 BEARING-BALL,6006 |
92045-1208 |
from US $17.27 |
||
|
92049
|
92049
92049-1298 SEAL-OIL,TC35X55X8 |
92049-1298 |
from US $6.54 |
||
|
92055
|
92055
92055-1451 RING-O,19.5X3.0 |
92055-1451 |
from US $2.65 |
