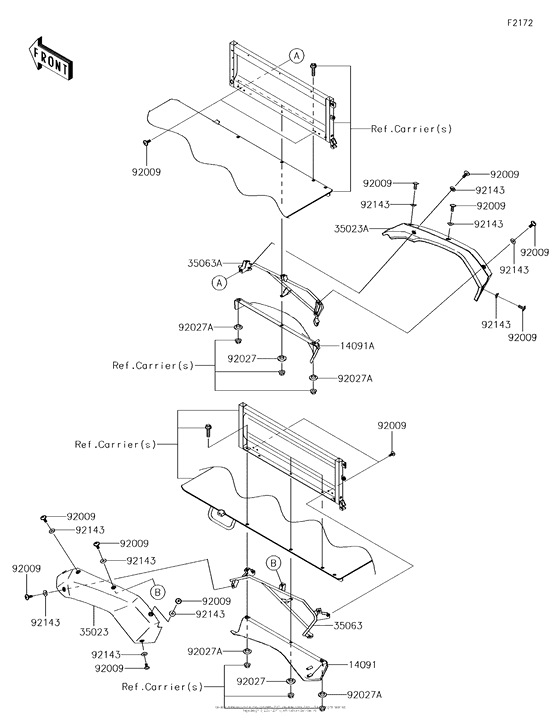

Rear Fender(S) Diagram Kawasaki KAF620 Mule 4010 Trans 4X4 Camo
- Model code
- KAF620SFF
- Engine Capacity
- 620
- Year
- 2015
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 Trans 4X4 Camo
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14091
|
14091
14091-1634 COVER,FENDER,INSIDE,R |
14091-1634 |
US $47.15 |
||
|
14091A
|
14091A
14091-1635 COVER,FENDER,INSIDE,R |
14091-1635 |
US $47.15 |
||
|
35023
|
35023
35023-0121-6Z FENDER-REAR,LH,F.BLAC |
35023-0121-6Z |
US $49.95 |
||
|
35023A
|
35023A
35023-0122-6Z FENDER-REAR,RH,F.BLAC |
35023-0122-6Z |
US $49.95 |
||
|
35063
|
35063
35063-0449 STAY,RR,LH |
35063-0449 |
US $90.09 |
||
|
35063A
|
35063A
35063-0450 STAY,RR,RH |
35063-0450 |
US $90.09 |
||
|
92009
|
92009
92009-1694 SCREW |
92009-1694 |
from US $4.60 |
||
|
92027
|
92027
92027-1354 COLLAR |
92027-1354 |
from US $2.72 |
||
|
92027A
|
92027A
92027-1908 COLLAR |
92027-1908 |
from US $4.84 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.24 |
