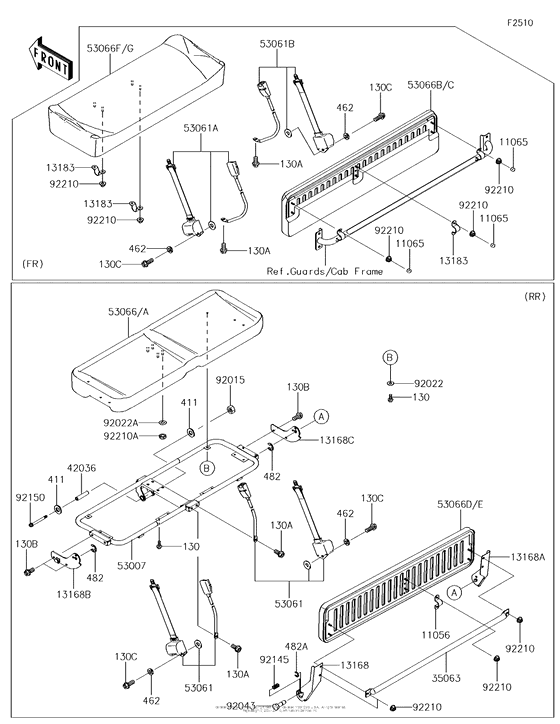

Seat Diagram Kawasaki KAF620 Mule 4010 Trans 4X4 Camo
- Model code
- KAF620SFF
- Engine Capacity
- 620
- Year
- 2015
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 Trans 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0616 BOLT-FLANGED,6X16 |
130BA0616 |
from US $0.76 |
||
|
130A
|
130A
130BA1220 BOLT-FLANGED,12X20 |
130BA1220 |
from US $1.51 |
||
|
130B
|
130B
130BB1020 BOLT-FLANGED |
130BB1020 |
from US $1.36 |
||
|
130C
|
130C
130BB1225 BOLT-FLANGED,12X25 |
130BB1225 |
from US $2.27 |
||
|
411
|
411
411AB1200 WASHER-PLAIN |
411AB1200 |
from US $2.11 |
||
|
462
|
462
462DB1200 WASHER-SPRING,12MM |
462DB1200 |
from US $0.45 |
||
|
482
|
482
482EA0200 CIRCLIP-TYPE-E |
482EA0200 |
from US $1.59 |
||
|
482A
|
482A
482EA8000 CIRCLIP-TYPE-E |
482EA8000 |
from US $0.39 |
||
|
11056
|
11056
11056-0034 BRACKET,SEAT BACK |
11056-0034 |
US $5.78 |
||
|
11065
|
11065
11065-7504 CAP |
11065-7504 |
US $0.96 |
||
|
13168
|
13168
13168-7502 LEVER,SEAT,TOP,LH |
13168-7502 |
US $53.94 |
||
|
13168A
|
13168A
13168-7503 LEVER,SEAT,TOP,RH |
13168-7503 |
US $53.94 |
||
|
13168B
|
13168B
13168-7504 LEVER,SEAT,LWR,LH |
13168-7504 |
US $43.73 |
||
|
13168C
|
13168C
13168-7505 LEVER,SEAT,LWR,RH |
13168-7505 |
US $43.73 |
||
|
13183
|
13183
13183-1400 PLATE,SEAT |
13183-1400 |
from US $5.78 |
||
|
35063
|
35063
35063-7510 STAY,REAR BACK |
35063-7510 |
US $151.27 |
||
|
42036
|
42036
42036-7501 SLEEVE,12.1X20X85 |
42036-7501 |
US $8.42 |
||
|
53007
|
53007
53007-0327 FRAME-SEAT |
53007-0327 |
from US $156.85 |
||
|
53061
|
53061
53061-0314 BELT-SEAT,RR |
53061-0314 |
from US $108.90 |
||
|
53061A
|
53061A
53061-0315 BELT-SEAT,FR,LH |
53061-0315 |
from US $108.90 |
||
|
53061B
|
53061B
53061-0316 BELT-SEAT,FR,RH |
53061-0316 |
from US $108.90 |
||
|
53066A
|
53066A
53066-0237-MB SEAT-ASSY,RR,LWR,S.M. |
53066-0237-MB |
US $536.95 |
||
|
53066C
|
53066C
53066-0258-MB SEAT-ASSY,FR,BACK,S.M |
53066-0258-MB |
US $230.42 |
||
|
53066E
|
53066E
53066-0259-MB SEAT-ASSY,RR,BACK,S.M |
53066-0259-MB |
US $230.42 |
||
|
53066G
|
53066G
53066-0274-MB SEAT-ASSY,FR,LWR,S.M. |
53066-0274-MB |
US $474.01 |
||
|
92015
|
92015
92015-1190 NUT,LOCK,12MM,BLACK |
92015-1190 |
from US $3.63 |
||
|
92022
|
92022
92022-1545 WASHER,7X18X1.2 |
92022-1545 |
from US $1.31 |
||
|
92022A
|
92022A
92022-239 WASHER,PLAIN |
92022-239 |
from US $2.27 |
||
|
92043
|
92043
92043-7503 PIN |
92043-7503 |
US $3.08 |
||
|
92145
|
92145
92145-7507 SPRING |
92145-7507 |
US $0.96 |
||
|
92150
|
92150
92150-1895 BOLT,FLANGED,12X117 |
92150-1895 |
from US $7.11 |
||
|
92210
|
92210
92210-0005 NUT,FLANGED,LOCK,8MM |
92210-0005 |
from US $2.24 |
||
|
92210A
|
92210A
92210-0278 NUT,LOCK,10MM |
92210-0278 |
from US $0.91 |
