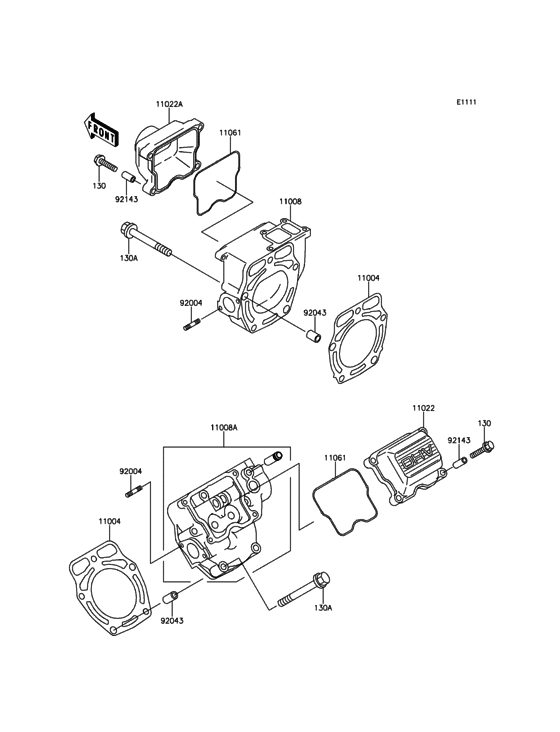

Cylinder Head Diagram Kawasaki KAF620 Mule 4010 Trans 4X4 Camo
- Model code
- KAF620SHF
- Engine Capacity
- 620
- Year
- 2017
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 Trans 4X4 Camo
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0625 BOLT-FLANGED,6X25 |
130BA0625 |
from US $0.79 |
||
|
130A
|
130A
92004-2142 STUD |
92004-2142 |
from US $1.40 |
||
|
11004
|
11004
11004-2107 GASKET-HEAD |
11004-2107 |
from US $18.26 |
||
|
11008
|
11008
11008-0820 HEAD-COMP-CYLINDER,#1 |
11008-0820 |
from US $178.85 |
||
|
11008A
|
11008A
11008-6046 HEAD-COMP-CYLINDER,#2 |
11008-6046 |
from US $178.85 |
||
|
11022
|
11022
11022-2056 CASE-ROCKER |
11022-2056 |
from US $9.33 |
||
|
11022A
|
11022A
11022-2068 CASE-ROCKER |
11022-2068 |
from US $14.46 |
||
|
11061
|
11061
11061-2182 GASKET-CASE-ROCKER |
11061-2182 |
from US $9.11 |
||
|
92043
|
92043
92043-1037 PIN,DOWEL,10X8.2X14 |
92043-1037 |
from US $0.97 |
||
|
92143
|
92143
92143-2010 COLLAR |
92143-2010 |
from US $0.75 |
