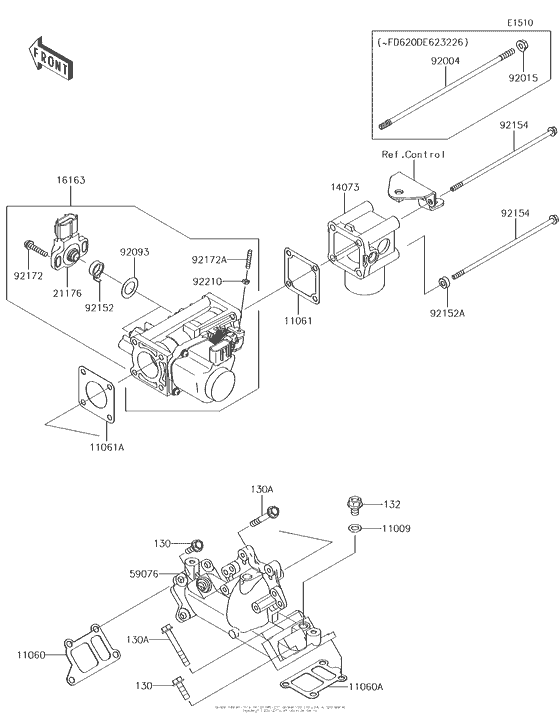

Throttle Diagram Kawasaki KAF620 Mule 4010 4X4 SE
- Model code
- KAF620TJF
- Engine Capacity
- 620
- Year
- 2018
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0620 BOLT-FLANGED,6X20 |
130BA0620 |
from US $1.11 |
||
|
130A
|
130A
130CA0645 BOLT-FLANGED,6X45 |
130CA0645 |
from US $1.27 |
||
|
132
|
132
132BB0812 BOLT-FLANGED-SMALL |
132BB0812 |
from US $1.27 |
||
|
11009
|
11009
11009-1344 GASKET,OIL PIPE,8.2X1 |
11009-1344 |
from US $3.33 |
||
|
11060
|
11060
11060-2087 GASKET-INTAKE MANIF |
11060-2087 |
from US $2.74 |
||
|
11060A
|
11060A
11060-2088 GASKET-INTAKE MANIF |
11060-2088 |
from US $2.59 |
||
|
11061
|
11061
11061-0861 GASKET |
11061-0861 |
from US $1.87 |
||
|
11061A
|
11061A
11061-2179 GASKET |
11061-2179 |
from US $1.87 |
||
|
14073
|
14073
14073-0780 DUCT |
14073-0780 |
from US $65.78 |
||
|
16163
|
16163
16163-0793 THROTTLE-ASSY |
16163-0793 |
from US $1,012.44 |
||
|
21176
|
21176
21176-2112 SENSOR |
21176-2112 |
from US $150.08 |
||
|
59076
|
59076
59076-0718 MANIFOLD-INTAKE |
59076-0718 |
from US $188.18 |
||
|
92093
|
92093
92093-2133 SEAL |
92093-2133 |
from US $4.67 |
||
|
92152
|
92152
92152-2093 COLLAR |
92152-2093 |
from US $3.27 |
||
|
92152A
|
92152A
92152-2333 COLLAR,LWR SIDE |
92152-2333 |
from US $1.24 |
||
|
92154
|
92154
92154-2653 BOLT,FLANGED,6X195 |
92154-2653 |
from US $8.55 |
||
|
92172
|
92172
92172-0254 SCREW |
92172-0254 |
from US $1.90 |
||
|
92172A
|
92172A
92172-2106 SCREW |
92172-2106 |
from US $2.17 |
||
|
92210
|
92210
92210-2120 NUT |
92210-2120 |
from US $0.78 |
