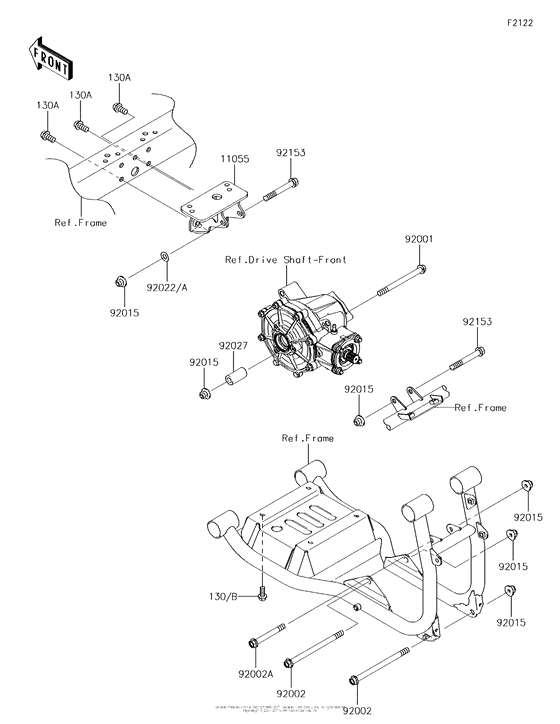

Engine Mount Diagram Kawasaki KAF620 Mule 4010 Trans 4X4 SE
- Model code
- KAF620VJF
- Engine Capacity
- 620
- Year
- 2018
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 Trans 4X4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130A
|
130A
130BA1020 BOLT-FLANGED,10X20 |
130BA1020 |
from US $1.09 |
||
|
130B
|
130B
130CA0820 BOLT-FLANGED,8X20 |
130CA0820 |
from US $0.69 |
||
|
11055
|
11055
11054-7506 BRACKET,FRONT GEAR CA |
11054-7506 |
US $48.45 |
||
|
92001
|
92001
92001-1603 BOLT,FLANGED,10X115 |
92001-1603 |
from US $6.22 |
||
|
92002
|
92002
92002-1348 BOLT,10X145 |
92002-1348 |
from US $11.40 |
||
|
92002A
|
92002A
92002-1764 BOLT,FLANGED,10X80 |
92002-1764 |
from US $4.51 |
||
|
92015
|
92015
92015-1597 NUT,LOCK,10MM |
92015-1597 |
from US $7.04 |
||
|
92022
|
92022
92022-1649 WASHER,10.2X20X0.5 |
92022-1649 |
from US $2.69 |
||
|
92022A
|
92022A
92022-239 WASHER,PLAIN |
92022-239 |
from US $2.53 |
||
|
92027
|
92027
92027-1518 COLLAR,11X20X39 |
92027-1518 |
from US $11.20 |
||
|
92153
|
92153
92153-1384 BOLT,FLANGED,10X75 |
92153-1384 |
from US $3.27 |
