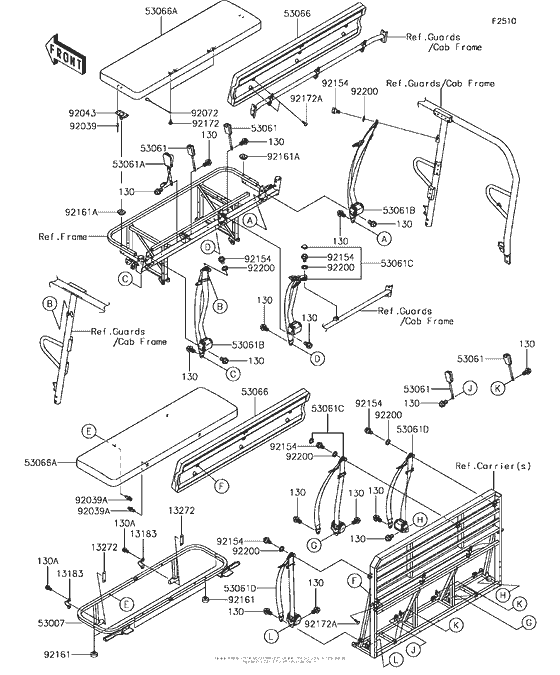

Seat Diagram Kawasaki KAF820 Mule PRO-FXT EPS
- Model code
- KAF820BJF
- Engine Capacity
- 820
- Year
- 2018
- Sales region
- USA
- Model
- Mule PRO-FXT EPS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA1220 BOLT-FLANGED,12X20 |
130BA1220 |
from US $1.51 |
||
|
130A
|
130A
130CA0816 BOLT-FLANGED |
130CA0816 |
from US $1.06 |
||
|
13183
|
13183
13183-1400 PLATE,SEAT |
13183-1400 |
from US $5.78 |
||
|
13272
|
13272
13272-1699 PLATE |
13272-1699 |
from US $1.17 |
||
|
53007
|
53007
53007-0364 FRAME-SEAT |
53007-0364 |
from US $156.85 |
||
|
53061
|
53061
53061-0039 BELT-SEAT,BUCKLE |
53061-0039 |
from US $29.54 |
||
|
53061A
|
53061A
53061-0338 BELT-SEAT,BUCKLE,SW. |
53061-0338 |
from US $51.94 |
||
|
53061B
|
53061B
53061-0340 BELT-SEAT,FR,LH&RH |
53061-0340 |
from US $167.20 |
||
|
53061C
|
53061C
53061-0341 BELT-SEAT,MIDDLE |
53061-0341 |
from US $167.20 |
||
|
53061D
|
53061D
53061-0348 BELT-SEAT,RR,LH&RH |
53061-0348 |
from US $167.20 |
||
|
53066
|
53066
53066-0426-MA SEAT-ASSY,BACK,BLACK |
53066-0426-MA |
from US $230.42 |
||
|
53066A
|
53066A
53066-0495-MA
SEAT-ASSY,BOTTOM,BLAC
|
53066-0495-MA |
— | ||
|
92039
|
92039
92039-0747 RIVET |
92039-0747 |
from US $1.36 |
||
|
92039A
|
92039A
92039-0776 RIVET |
92039-0776 |
from US $1.12 |
||
|
92043
|
92043
92043-0859 PIN |
92043-0859 |
from US $1.24 |
||
|
92072
|
92072
92072-0769 BAND |
92072-0769 |
from US $2.96 |
||
|
92154
|
92154
92154-1959 BOLT,FLANGED,10X19.5 |
92154-1959 |
from US $3.63 |
||
|
92161
|
92161
92161-1065 DAMPER, SEAT |
92161-1065 |
from US $1.67 |
||
|
92161A
|
92161A
92161-1784 DAMPER,10.5X30X8.2 |
92161-1784 |
from US $0.51 |
||
|
92172
|
92172
92172-0284 SCREW,6X16 |
92172-0284 |
from US $0.60 |
||
|
92172A
|
92172A
92172-0488 SCREW,TAPPING,6X20 |
92172-0488 |
from US $1.20 |
||
|
92200
|
92200
92200-1798 WASHER,16X22X2 |
92200-1798 |
from US $0.82 |
