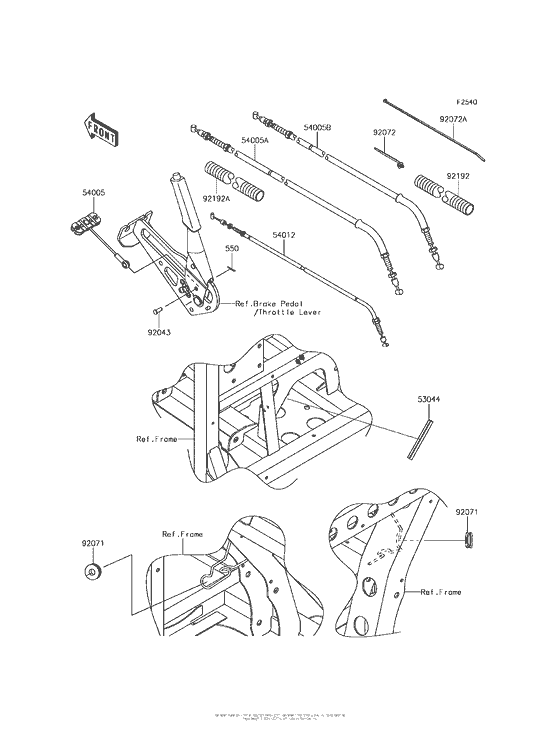

Cables Diagram Kawasaki KAF820 Mule PRO-FXT EPS Camo
- Model code
- KAF820DHF
- Engine Capacity
- 820
- Year
- 2017
- Sales region
- USA
- Model
- Mule PRO-FXT EPS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
550
|
550
550AA2518 PIN,COTTER,2.5X18 |
550AA2518 |
from US $0.79 |
||
|
53044
|
53044
53044-7502 TRIM,L=111 |
53044-7502 |
from US $4.82 |
||
|
54005
|
54005
54005-0035 CABLE-BRAKE,PARKING,F |
54005-0035 |
from US $15.87 |
||
|
54005A
|
54005A
54005-0039 CABLE-BRAKE,PARKING,L |
54005-0039 |
from US $83.20 |
||
|
54005B
|
54005B
54005-0040 CABLE-BRAKE,PARKING,R |
54005-0040 |
from US $81.33 |
||
|
54012
|
54012
54012-0639 CABLE-THROTTLE |
54012-0639 |
from US $46.66 |
||
|
92043
|
92043
92043-1039 PIN |
92043-1039 |
from US $6.65 |
||
|
92071
|
92071
92071-0029 GROMMET |
92071-0029 |
US $2.21 |
||
|
92072
|
92072
92072-1414 BAND |
92072-1414 |
from US $1.74 |
||
|
92072A
|
92072A
92072-3509 BAND |
92072-3509 |
from US $1.74 |
||
|
92192
|
92192
92192-1363 TUBE,CONVOLUTED,25.1X |
92192-1363 |
from US $3.43 |
||
|
92192A
|
92192A
92192-1391 TUBE,CONVOLUTED,25.1X |
92192-1391 |
from US $2.95 |
