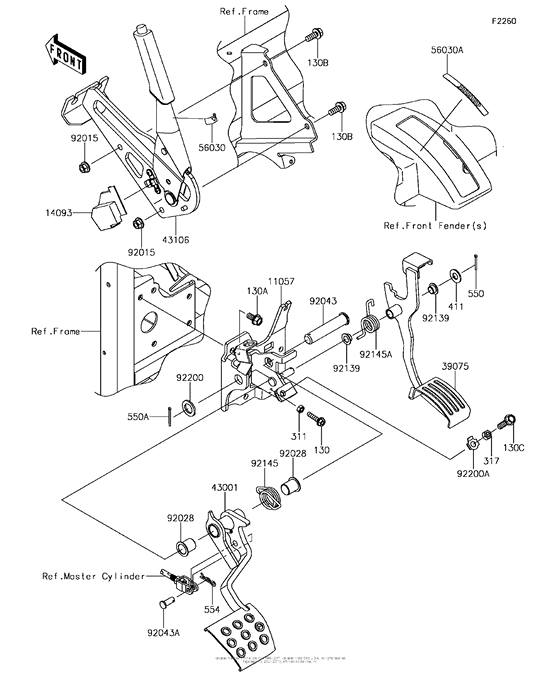

Brake Pedal/throttle Lever Diagram Kawasaki KAF820 Mule PRO-FXT Ranch Edition
- Model code
- KAF820JJF
- Engine Capacity
- 820
- Year
- 2018
- Sales region
- USA
- Model
- Mule PRO-FXT Ranch Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0625 BOLT-FLANGED,6X25 |
130BA0625 |
from US $0.79 |
||
|
130A
|
130A
130BA0818 BOLT-FLANGED,8X18 |
130BA0818 |
from US $1.09 |
||
|
130B
|
130B
130BA0820 BOLT-FLANGED,8X20 |
130BA0820 |
from US $1.43 |
||
|
130C
|
130C
130BA0830 BOLT-FLANGED,8X30 |
130BA0830 |
from US $1.43 |
||
|
311
|
311
311BA0600 NUT-HEX |
311BA0600 |
from US $0.95 |
||
|
317
|
317
317BA0800 NUT-HEX-SMALL,8MM |
317BA0800 |
from US $0.95 |
||
|
411
|
411
411AA1000 WASHER-PLAIN,10MM |
411AA1000 |
from US $0.72 |
||
|
550
|
550
550AA2518 PIN,COTTER,2.5X18 |
550AA2518 |
from US $0.79 |
||
|
550A
|
550A
550AA2525 PIN-COTTER,2.5X25 |
550AA2525 |
from US $0.63 |
||
|
554
|
554
554DA1000 PIN-SNAP,10MM |
554DA1000 |
from US $0.91 |
||
|
11057
|
11057
11057-0727 BRACKET,PARKING BRAKE |
11057-0727 |
from US $87.91 |
||
|
14093
|
14093
14093-0241 COVER,PARKING BRAKE S |
14093-0241 |
from US $2.49 |
||
|
39075
|
39075
39075-0023 LEVER-THROTTLE |
39075-0023 |
from US $35.97 |
||
|
43001
|
43001
43001-0752 LEVER-BRAKE,FOOT |
43001-0752 |
from US $67.66 |
||
|
43106
|
43106
43106-0006 LEVER-ASSY-PARKING BR |
43106-0006 |
from US $130.18 |
||
|
56030
|
56030
56030-0905 LABEL,ARROW |
56030-0905 |
from US $2.33 |
||
|
56030A
|
56030A
56030-0930 LABEL,STROKE RANGE |
56030-0930 |
from US $2.33 |
||
|
92015
|
92015
92015-1406 NUT,8MM |
92015-1406 |
from US $2.85 |
||
|
92028
|
92028
92028-1571 BUSHING |
92028-1571 |
from US $6.54 |
||
|
92043
|
92043
92043-0917 PIN,16X78 |
92043-0917 |
from US $8.55 |
||
|
92043A
|
92043A
92043-1039 PIN |
92043-1039 |
from US $6.65 |
||
|
92139
|
92139
92139-0230 BUSHING |
92139-0230 |
from US $2.02 |
||
|
92145
|
92145
92145-1615 SPRING,BRAKE PEDAL RE |
92145-1615 |
from US $3.27 |
||
|
92145A
|
92145A
92145-1767 SPRING,22X3.5 |
92145-1767 |
from US $4.05 |
||
|
92200
|
92200
92200-0043 WASHER,16X26X2.3 |
92200-0043 |
from US $3.80 |
||
|
92200A
|
92200A
92200-0993 WASHER,8.5X17X0.8 |
92200-0993 |
from US $2.79 |
