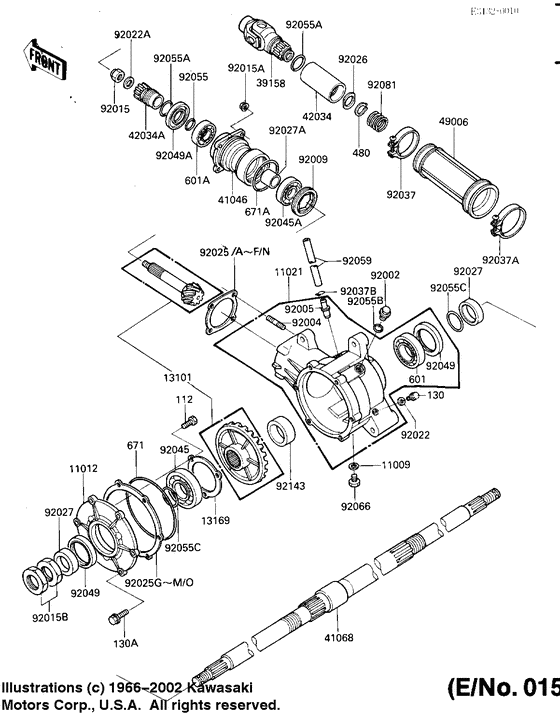

Drive shaft/final gears/rear axle (E/no. 015128-) Diagram Kawasaki KLF185 Bayou 185
- Model code
- KLF185-A1A
- Engine Capacity
- 185
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
112
|
112
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $0.84 |
||
|
130
|
130
130H0608 BOLT-FLANGED |
130H0608 |
US $2.26 |
||
| replacement | |||||
|
130
|
130
130BA0608 BOLT-FLANGED |
130BA0608 |
from US $0.37 |
||
|
130A
|
130A
130H0620 BOLT-FLANGED,6X20 |
130H0620 |
US $2.49 |
||
| replacement | |||||
|
130A
|
130A
130BA0620 BOLT-FLANGED,6X20 |
130BA0620 |
from US $0.98 |
||
|
480
|
480
480J2000 CIRCLIP, 20MMCirclip, 20mm; |
480J2000 |
from US $1.06 |
||
|
601
|
601
601B6007 BEARING-BALL |
601B6007 |
from US $21.98 |
||
|
601A
|
601A
601B6204 BEARING BALL #6204Bearing ball #6204; |
601B6204 |
from US $13.30 |
||
|
671
|
671
671B25125 O RING |
671B25125 |
US $11.43 |
||
|
671A
|
671A
671B2560 0 RING,60MM"0" ring,60mm; |
671B2560 |
from US $4.76 |
||
|
11009
|
11009
92065-058 GASKETGasket check valve; |
92065-058 |
from US $2.38 |
||
|
11012
|
11012
11012-1375 CAP |
11012-1375 |
US $90.49 |
||
|
11021
|
11021
11021-1051 CASE-ASSY,FINAL GEARCase-assy,final gear; |
11021-1051 |
US $407.07 |
||
|
13101
|
13101
13101-5055 GEAR-ASSY |
13101-5055 |
US $465.55 |
||
|
13169
|
13169
13169-1751 PLATE |
13169-1751 |
US $11.50 |
||
|
39158
|
39158
39158-1055
SHAFT-ASSY-DRIVE
|
39158-1055 |
— | ||
|
41046
|
41046
41046-1052
HOUSING-BEARING
|
41046-1052 |
— | ||
|
41068
|
41068
41068-1242 AXLE,FINALAxle,final; |
41068-1242 |
US $834.35 |
||
|
42034
|
42034
42034-1058
COUPLING,DRIVE SHAFT
Coupling,drive shaft; |
42034-1058 |
— | ||
|
42034A
|
42034A
42034-1059 COUPLING |
42034-1059 |
US $85.28 |
||
|
49006
|
49006
49006-1160
BOOT
|
49006-1160 |
— | ||
|
92002
|
92002
92002-1238 BOLT,16X10Bolt,16x10; |
92002-1238 |
from US $4.69 |
||
|
92004
|
92004
92004-1127 STUD,6X18Stud,6x18; |
92004-1127 |
from US $2.80 |
||
|
92005
|
92005
92005-1127 FITTING,BREATHERFitting,breather; |
92005-1127 |
from US $10.28 |
||
|
92009
|
92009
92009-1290 SCREW |
92009-1290 |
from US $14.67 |
||
|
92015
|
92015
92015-1182 NUT,12MMNut,12mm; |
92015-1182 |
from US $3.93 |
||
|
92015A
|
92015A
92015-1365 NUT,6MMNut,6mm; |
92015-1365 |
from US $2.80 |
||
|
92015B
|
92015B
92015-1493 NUT,LOCK,32MMNut,lock,32mm; |
92015-1493 |
US $11.95 |
||
|
92022
|
92022
92022-077 WASHER,6.1X12X1Washer oil pump banjo; |
92022-077 |
from US $2.24 |
||
|
92022A
|
92022A
92022-1293 WASHER,12X3X25X3.2Washer,12x3x25x3.2; |
92022-1293 |
from US $3.47 |
||
|
92025
|
92025
92025-1545 SHIM,T=0.1Shim,t=0.1; |
92025-1545 |
US $8.26 |
||
|
920250
|
920250
92025-1578 SHIM,T=0.15Shim,t=0.15; |
92025-1578 |
US $7.74 |
||
|
92025A
|
92025A
92025-1546 SHIM,T=0.5Shim,t=0.5; |
92025-1546 |
US $4.13 |
||
|
92025B
|
92025B
92025-1547 SHIM,T=0.7Shim,t=0.7; |
92025-1547 |
US $6.12 |
||
|
92025C
|
92025C
92025-1548 SHIM,T=0.8Shim,t=0.8; |
92025-1548 |
US $6.12 |
||
|
92025D
|
92025D
92025-1549 SHIM,T=0.9Shim,t=0.9; |
92025-1549 |
US $6.12 |
||
|
92025E
|
92025E
92025-1550 SHIM,T=1.0Shim,t=1.0; |
92025-1550 |
US $6.12 |
||
|
92025F
|
92025F
92025-1551 SHIM,T=1.2Shim,t=1.2; |
92025-1551 |
US $7 |
||
|
92025G
|
92025G
92025-1552 SHIM,T=0.1Shim,t=0.1; |
92025-1552 |
US $9.28 |
||
|
92025H
|
92025H
92025-1553 SHIM,T=0.5Shim,t=0.5; |
92025-1553 |
US $10.36 |
||
|
92025I
|
92025I
92025-1554 SHIM,T=0.7Shim,t=0.7; |
92025-1554 |
US $10.22 |
||
|
92025J
|
92025J
92025-1555 SHIM,T=0.8Shim,t=0.8; |
92025-1555 |
US $8.92 |
||
|
92025K
|
92025K
92025-1556 SHIM,T=0.9Shim,t=0.9; |
92025-1556 |
US $9.38 |
||
|
92025L
|
92025L
92025-1557 SHIM,T=1.0Shim,t=1.0; |
92025-1557 |
US $9.84 |
||
|
92025M
|
92025M
92025-1558 SHIM,T=1.2Shim,t=1.2; |
92025-1558 |
US $9.84 |
||
|
92025N
|
92025N
92025-1577 SHIM,T=0.15Shim,t=0.15; |
92025-1577 |
US $7 |
||
|
92026
|
92026
92026-1106
SPACER,DRIVE SHAFT
Spacer,drive shaft; |
92026-1106 |
— | ||
|
92027
|
92027
92027-1718 COLLAR,L=13.5Collar,l=13.5; |
92027-1718 |
US $31.13 |
||
|
92027A
|
92027A
92027-1724 COLLAR |
92027-1724 |
US $11.50 |
||
|
92037
|
92037
92037-1523 CLAMP |
92037-1523 |
from US $11.80 |
||
|
92037A
|
92037A
92037-1554 CLAMP |
92037-1554 |
from US $5.89 |
||
|
92037B
|
92037B
92037-1610 CLAMP |
92037-1610 |
from US $1.35 |
||
|
92045
|
92045
92045-1110 BEARING-BALL |
92045-1110 |
from US $23.59 |
||
|
92045A
|
92045A
92045-1142 BEARING-BALL,TMB304CCBearing-ball,tmb304cc; |
92045-1142 |
from US $31.15 |
||
|
92049
|
92049
92049-1167 SEAL-OIL |
92049-1167 |
US $14.46 |
||
|
92049A
|
92049A
92049-1170 SEAL-OIL |
92049-1170 |
US $11.43 |
||
|
92055
|
92055
92055-022 0 RING"0" ring; |
92055-022 |
from US $3.18 |
||
|
92055A
|
92055A
92055-1119 RING-0,27MMRing-0,27mm; |
92055-1119 |
from US $2.87 |
||
|
92055B
|
92055B
92055-1141 RING-O,ID=13.8Ring-o,id=13.8; |
92055-1141 |
from US $4.60 |
||
|
92055C
|
92055C
92055-4002 RING-0,33X1.6Ring-0,33x1.6; |
92055-4002 |
from US $3.18 |
||
|
92059
|
92059
92059-1372 TUBETube,6x9x750; |
92059-1372 |
US $14.39 |
||
| replacement | |||||
|
92059
|
92059
92059-1939 TUBETube,6x9x750; |
92059-1939 |
from US $10.14 |
||
|
92066
|
92066
92067-001 PLUG OIL DRAINPlug oil drain; |
92067-001 |
from US $3.46 |
||
|
92081
|
92081
92081-1650
SPRING
|
92081-1650 |
— | ||
|
92143
|
92143
92143-1003 COLLAR |
92143-1003 |
US $50.70 |
||
