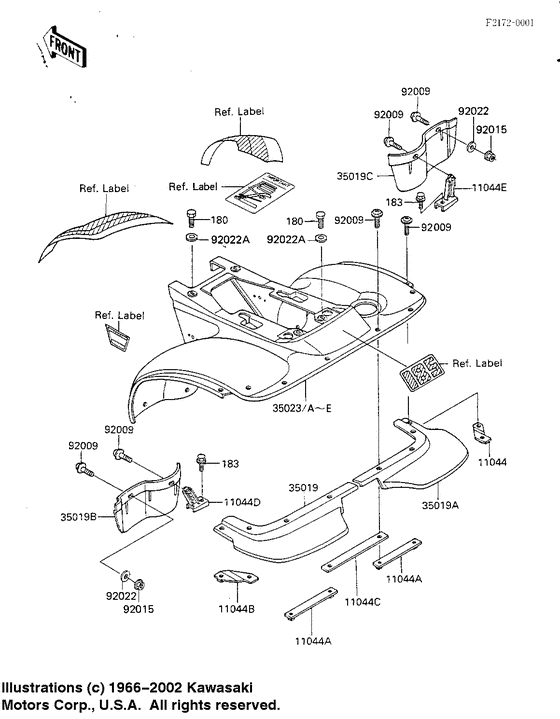

Rear fender Diagram Kawasaki KLF185 Bayou 185
- Model code
- KLF185-A1A
- Engine Capacity
- 185
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
180
|
180
180B0618 BOLT-UPSET-WS |
180B0618 |
from US $0.61 |
||
| replacement | |||||
|
180
|
180
180AA0618 BOLT-UPSET-WS |
180AA0618 |
from US $1.09 |
||
|
183
|
183
183B0816 BOLT-UPSET-WS-SMALL |
183B0816 |
US $1.11 |
||
| replacement | |||||
|
183
|
183
183AA0816 BOLT-UPSET-WS-SMALL |
183AA0816 |
US $1.01 |
||
|
11044
|
11044
11043-1834 BRACKET,RR FLAP,RHBracket,rr flap,rh; |
11043-1834 |
US $8.32 |
||
|
11044A
|
11044A
11043-1835 BRACKET,RR FLAPBracket,rr flap; |
11043-1835 |
US $6.46 |
||
|
11044B
|
11044B
11043-1945 BRACKET,RR FLAP,LHBracket,rr flap,lh; |
11043-1945 |
US $11.16 |
||
|
11044C
|
11044C
11043-1946 BRACKET,RR FLAPBracket,rr flap; |
11043-1946 |
US $9.50 |
||
|
11044D
|
11044D
11044-1153 BRACKET,FLAP,LHBracket,flap,lh; |
11044-1153 |
US $15.16 |
||
|
11044E
|
11044E
11044-1154 BRACKET,FLAP,RHBracket,flap,rh; |
11044-1154 |
US $15.16 |
||
|
35019
|
35019
35019-1123 FLAP,RR,LHFlap,rr,lh; |
35019-1123 |
US $55.87 |
||
|
35019A
|
35019A
35019-1134 FLAP,RR,RHFlap,rr,rh; |
35019-1134 |
US $47.30 |
||
|
35019B
|
35019B
35019-1143 FLAP,LHFlap,lh; |
35019-1143 |
US $27.99 |
||
|
35019C
|
35019C
35019-1144
FLAP,RH
Flap,rh; |
35019-1144 |
— | ||
|
35023D
|
35023D
35023-1159-6C
Fender-rear
Fender-rear,ebony (canada); |
35023-1159-6C |
— | ||
|
35023E
|
35023E
35023-1159-6L
Fender-rear
Fender-rear,f.red (canada); |
35023-1159-6L |
— | ||
|
92009
|
92009
92009-1288
SCREW
Screw,6x14; |
92009-1288 |
— | ||
| replacements | |||||
|
92009
|
92009
92009-1662 SCREWScrew,6x14; |
92009-1662 |
from US $2.53 |
||
|
92009
|
92009
92172-0004 SCREW,6X14Screw,6x14; |
92172-0004 |
from US $1.27 |
||
|
92015
|
92015
92015-1191
NUT,LOCK,6MM
Nut,lock,6mm,black; |
92015-1191 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0006 NUT,LOCK,6MMNut,lock,6mm,black; |
92210-0006 |
from US $1.27 |
||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
92022A
|
92022A
92022-228 WASHER,PLAIN,7MMWasher,plain,7mm; |
92022-228 |
from US $2.53 |
||
