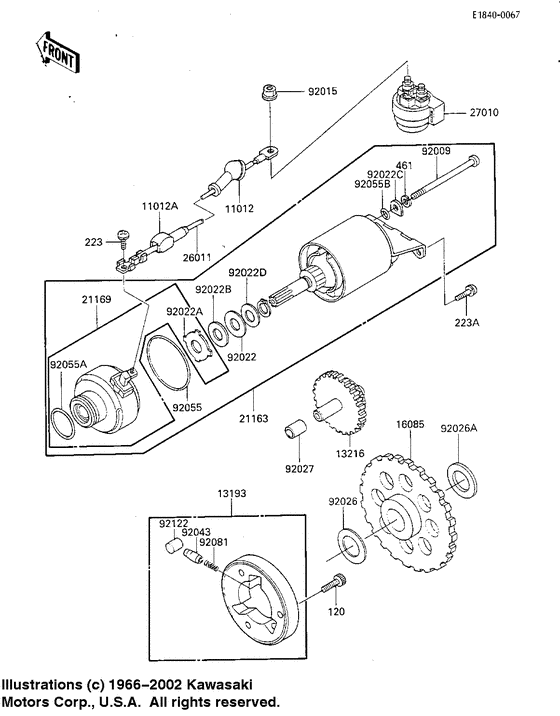

Starter motor Diagram Kawasaki KLF185 Bayou 185
- Model code
- KLF185-A2
- Engine Capacity
- 185
- Year
- 1986
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1354 CAP,TERMINALCap,terminal; |
11012-1354 |
from US $7.44 |
||
|
11012A
|
11012A
11012-1465 CAP,STARTER TERMINALCap,starter terminal; |
11012-1465 |
US $5.65 |
||
|
13193
|
13193
13193-1002 CLUTCH ASSY,ONEWAY |
13193-1002 |
from US $79.14 |
||
|
13216
|
13216
13216-1054 GEAR-COMP,IDLEGear-comp,idle; |
13216-1054 |
US $66.76 |
||
|
16085
|
16085
16085-1032 GEAR-COMP,ONEWAYGear,oneway clutch; |
16085-1032 |
from US $118.58 |
||
|
21163
|
21163
21163-1076 Starter-electric |
21163-1076 |
US $510.26 |
||
|
21169
|
21169
21169-1052 TERMINAL,STARTER MOTOTerminal,starter motor; |
21169-1052 |
US $139.57 |
||
|
26011
|
26011
26011-1312
WIRE-LEAD,STARTER MOT
Wire-lead,starter motor; |
26011-1312 |
— | ||
|
27010
|
27010
27010-1075 SWITCH,STARTERSwitch,starter; |
27010-1075 |
US $44.93 |
||
| replacement | |||||
|
27010
|
27010
27010-1314 SWITCH,STARTERSwitch,starter; |
27010-1314 |
from US $50.81 |
||
|
92009
|
92009
92009-1389 SCREW |
92009-1389 |
US $5.26 |
||
|
92015
|
92015
92015-1193
NUT,FLANGED,6MM
Nut,flanged,6mm; |
92015-1193 |
— | ||
| replacement | |||||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1367 |
from US $3.01 |
||
|
92022
|
92022
92022-1129 WASHER,THRUSTWasher,thrust,b; |
92022-1129 |
US $3.15 |
||
|
92022A
|
92022A
92022-1130 WASHER,THRUST SUPPORTWasher,thrust support; |
92022-1130 |
from US $4.12 |
||
|
92022B
|
92022B
92022-1131 WASHER,BAKELITEWasher,bakelite; |
92022-1131 |
US $4.25 |
||
|
92022C
|
92022C
92022-1697 WASHER |
92022-1697 |
US $2.88 |
||
|
92022D
|
92022D
92022-1714 WASHER,22X12.2X0.5Washer,22x12.2x0.5; |
92022-1714 |
from US $2.86 |
||
|
92026
|
92026
92026-092 WASHER 22X35.5X1.OTSpacer,22x35.5x1.0; |
92026-092 |
from US $8.40 |
||
|
92026A
|
92026A
92026-1272 SPACERSpacer,22.1x30.7x2.0; |
92026-1272 |
US $25.92 |
||
|
92027
|
92027
92027-1723 COLLAR,12X17X17.3Collar,12x17x17.3; |
92027-1723 |
US $6.64 |
||
|
92043
|
92043
92043-132 PIN |
92043-132 |
from US $3.60 |
||
|
92055
|
92055
92055-1042 0 RING,56MMRing-o,56mm; |
92055-1042 |
US $6.71 |
||
|
92055A
|
92055A
92055-1303 RING-O |
92055-1303 |
from US $7.44 |
||
|
92055B
|
92055B
92055-1304 RING-O |
92055-1304 |
US $1.39 |
||
|
92081
|
92081
92081-159 SPRING,COILSpring,coil; |
92081-159 |
from US $2.74 |
||
|
92122
|
92122
92122006 ROLLER |
92122006 |
from US $3.48 |
||
|
120
|
120
120P0814 BOLT-SOCKET,8X14Bolt-socket,8x14; |
120P0814 |
from US $1.74 |
||
| replacement | |||||
|
120
|
120
120CA0814 BOLT-SOCKET,8X14Bolt-socket,8x14; |
120CA0814 |
from US $1.58 |
||
|
223
|
223
223B0508 SCREW-PAN-WS-CROS |
223B0508 |
US $0.29 |
||
|
223A
|
223A
223X0616 SCREW-PAN-WS-CROS |
223X0616 |
US $2.59 |
||
|
461
|
461
461L0500 WASHER-SPRING |
461L0500 |
US $4.30 |
||
| replacement | |||||
|
461
|
461
461DA0500 WASHER-SPRING |
461DA0500 |
from US $0.48 |
||
