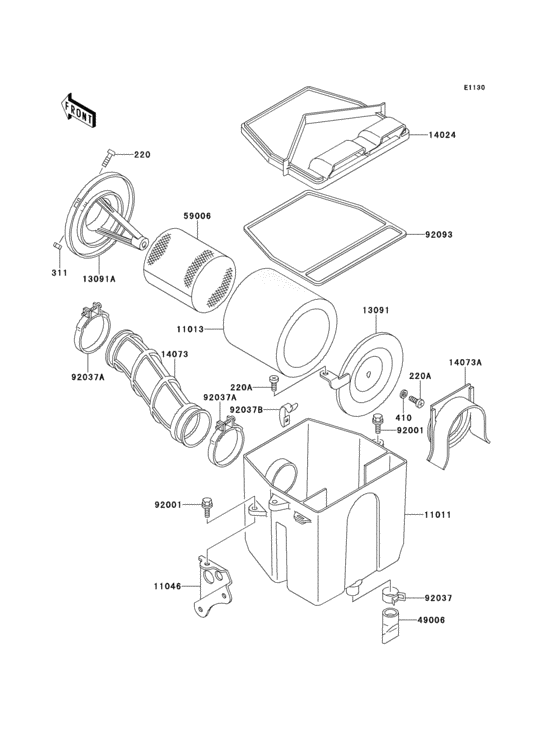

Air filter(klf300-b1) Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220AA0516 SCREW-PAN-CROS |
220AA0516 |
from US $0.79 |
||
|
220A
|
220A
220AA0614 SCREW-PAN-CROS,6X14 |
220AA0614 |
from US $0.95 |
||
|
311
|
311
311AA0500 NUT-HEX,5MM |
311AA0500 |
from US $0.78 |
||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
11011
|
11011
11011-1260 CASE-AIR FILTER |
11011-1260 |
from US $62.52 |
||
|
11013
|
11013
11013-1158 Element-air filter |
11013-1158 |
from US $11.17 |
||
|
11046
|
11046
11046-1042 BRACKET,REGULATOR |
11046-1042 |
US $10.01 |
||
|
13091
|
13091
13091-1488 HOLDER,ELEMENT |
13091-1488 |
from US $13.06 |
||
|
13091A
|
13091A
13091-1510 HOLDER,ELEMENT |
13091-1510 |
from US $24.42 |
||
|
14024
|
14024
14024-1549 COVER,AIR FILTER |
14024-1549 |
US $21.65 |
||
|
14073
|
14073
14073-1318 DUCT |
14073-1318 |
US $34.51 |
||
|
14073A
|
14073A
14073-1350 DUCT,AIR FILTER |
14073-1350 |
US $10.58 |
||
|
49006
|
49006
49006-1199 BOOT |
49006-1199 |
from US $5.76 |
||
|
59006
|
59006
59006-1052 ARRESTER-FLAME |
59006-1052 |
from US $24.42 |
||
|
92001
|
92001
92001-1460 BOLT,6X20 |
92001-1460 |
from US $2.53 |
||
|
92037
|
92037
92171-1571 CLAMP |
92171-1571 |
from US $5.28 |
||
|
92037A
|
92037A
92037-1523 CLAMP |
92037-1523 |
from US $8.08 |
||
|
92037B
|
92037B
92037-1783 CLAMP,AIR FILTER |
92037-1783 |
from US $4.82 |
||
|
92093
|
92093
92093-1241 SEAL,AIR FILTER |
92093-1241 |
from US $7.46 |
