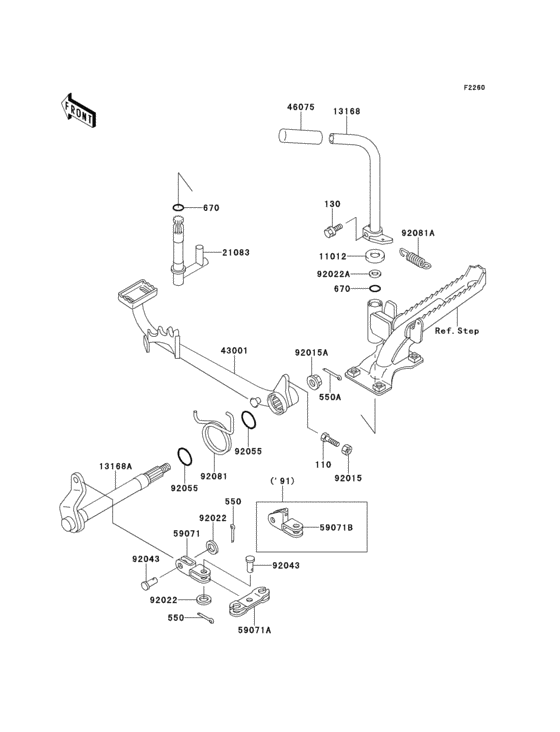

Brake pedal Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
110
|
110
112D0622 BOLT-UPSET |
112D0622 |
US $4 |
||
| replacement | |||||
|
110
|
110
112AA0622 BOLT-UPSET |
112AA0622 |
from US $0.94 |
||
|
130
|
130
130CB0620 BOLT-FLANGED,6X20,BLC |
130CB0620 |
from US $1.11 |
||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15 |
550AA2015 |
from US $0.63 |
||
|
550A
|
550A
550AA2518 PIN,COTTER,2.5X18 |
550AA2518 |
from US $0.79 |
||
|
670
|
670
670B2012 O RING,12MM |
670B2012 |
from US $2.84 |
||
|
11012
|
11012
11012-1482 CAP |
11012-1482 |
from US $5.60 |
||
|
13168
|
13168
13168-1282 LEVER |
13168-1282 |
from US $50.86 |
||
|
13168A
|
13168A
13168-1366 LEVER,REAR BRAKE |
13168-1366 |
from US $72.48 |
||
|
21083
|
21083
21083-1072 ARM,PARKING BRAKE |
21083-1072 |
from US $40.44 |
||
|
43001
|
43001
43001-1236 LEVER-BRAKE,PEDAL,RR |
43001-1236 |
from US $66.41 |
||
|
46075
|
46075
46075-1062 GRIP |
46075-1062 |
US $6.32 |
||
|
59071
|
59071
59071-1105 JOINT |
59071-1105 |
US $11.81 |
||
|
59071A
|
59071A
59071-1106 JOINT |
59071-1106 |
from US $11.35 |
||
|
92015
|
92015
92015-1410 NUT,6MM |
92015-1410 |
from US $2.33 |
||
|
92015A
|
92015A
92015-1415 NUT,10MM |
92015-1415 |
from US $3.54 |
||
|
92022
|
92022
410AA0800 WASHER-PLAIN-SMALL,8M |
410AA0800 |
from US $0.63 |
||
|
92022A
|
92022A
92022-1936 WASHER,12X20X3.2 |
92022-1936 |
from US $2.95 |
||
|
92043
|
92043
92043-1013 PIN |
92043-1013 |
from US $6.65 |
||
|
92055
|
92055
92055-1257 RING-O,23.8MM |
92055-1257 |
from US $10.22 |
||
|
92081
|
92081
92081-1887 SPRING,BRAKE PEDAL RE |
92081-1887 |
from US $8.09 |
||
|
92081A
|
92081A
92081-1922 SPRING |
92081-1922 |
from US $3.27 |
||
