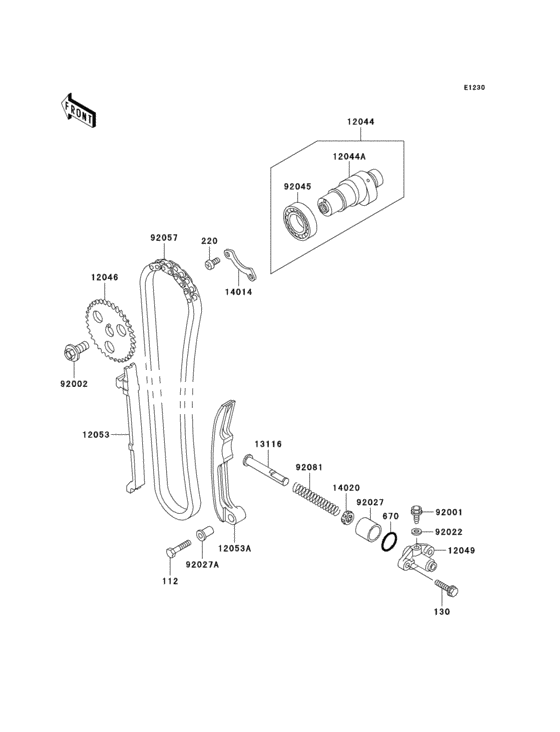

Camshaft/tensioner Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112BA0630 BOLT-UPSET |
112BA0630 |
from US $0.86 |
||
|
130
|
130
130Y0625 BOLT-FLANGED |
130Y0625 |
from US $1.74 |
||
| replacement | |||||
|
130
|
130
130BD0625 BOLT-FLANGED |
130BD0625 |
from US $1.40 |
||
|
220
|
220
220AA0610 SCREW-PAN HEAD,6X10 |
220AA0610 |
from US $0.95 |
||
|
670
|
670
670B2021 O-RING,21MM |
670B2021 |
from US $3.54 |
||
|
12044
|
12044
12044-1149
CAMSHAFT-VALVE
|
12044-1149 |
— | ||
|
12046
|
12046
12046-1037 SPROCKET,CAM CHAIN,32 |
12046-1037 |
from US $46.20 |
||
|
12049
|
12049
12049-1055 TENSIONER,CAM CHAIN |
12049-1055 |
from US $31.82 |
||
|
12053
|
12053
12053-023 SLIPER,CAM CHAIN |
12053-023 |
from US $20.53 |
||
|
12053A
|
12053A
12053024 SLIPER,CAM CHAIN |
12053024 |
from US $36.72 |
||
|
13116
|
13116
13116-1019 ROD,PUSH,CAM CHAIN |
13116-1019 |
from US $10.51 |
||
|
14014
|
14014
14014-1030 PLATE-POSITION |
14014-1030 |
from US $2.97 |
||
|
14020
|
14020
14020-1054 RETAINER,TENSIONER |
14020-1054 |
from US $15.36 |
||
|
92001
|
92001
92001-1155 BOLT,TENSIONER ADJUST |
92001-1155 |
from US $3.48 |
||
|
92002
|
92002
92001-1859 BOLT,10X23 |
92001-1859 |
from US $6.34 |
||
|
92022
|
92022
92022-077 WASHER,6.1X12X1 |
92022-077 |
from US $2.53 |
||
|
92027
|
92027
92027-1273 COLLAR,TENSIONER |
92027-1273 |
from US $18.86 |
||
|
92027A
|
92027A
92027-155 COLLAR |
92027-155 |
from US $4.32 |
||
|
92045
|
92045
92045-1056 BEARING-BALL |
92045-1056 |
from US $24.82 |
||
|
92057
|
92057
21070013 CHAIN,CAM |
21070013 |
from US $107.15 |
||
|
92081
|
92081
92081-1105 SPRING,TENSIONER |
92081-1105 |
from US $3.02 |
||
