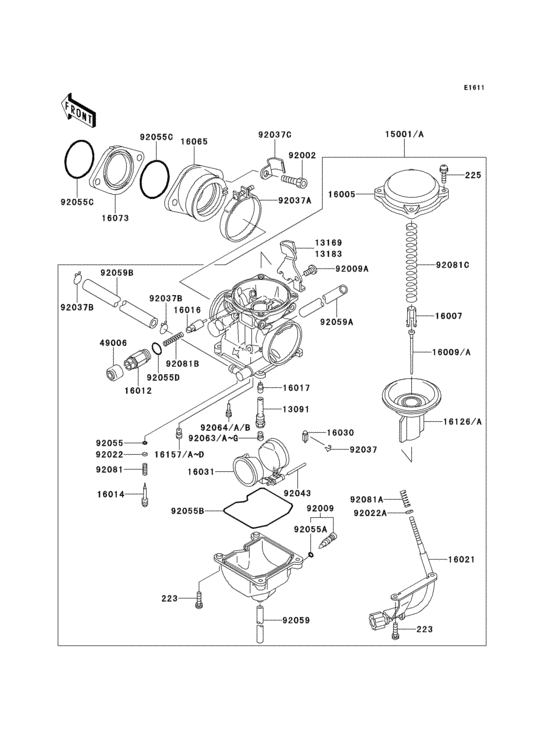

Carburetor(1/2) Diagram Kawasaki KLF300 Bayou 300
- Model code
- KLF300-B1
- Engine Capacity
- 290
- Year
- 1988
- Frame
- LF300B 600001 - 600746
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Bayou 300 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
223
|
223
223AB0416 SCREW-PAN-WS-CROS |
223AB0416 |
from US $0.95 |
||
|
225
|
225
225AB0418 SCREW-PAN-WSP-CROS |
225AB0418 |
from US $0.95 |
||
|
13091
|
13091
13091-1259 HOLDER,NEEDLE JET |
13091-1259 |
from US $22.14 |
||
|
13169
|
13169
13169-1977 PLATE,THROTTLE CABLE |
13169-1977 |
US $36.38 |
||
|
15001
|
15001
15001-1390 CARBURETOR-ASSY |
15001-1390 |
US $595.24 |
||
|
16005
|
16005
16005-1056 TOP-CHAMBER |
16005-1056 |
from US $47.87 |
||
|
16007
|
16007
16007-1120 SEAT-SPRING |
16007-1120 |
from US $19.48 |
||
|
16009
|
16009
16009-1277 NEEDLE-JET,27Q |
16009-1277 |
US $27.23 |
||
|
16012
|
16012
16012-1055 CAP-STARTER PLUNGER |
16012-1055 |
from US $18.69 |
||
|
16014
|
16014
16014-1054 SCREW-PILOT AIR |
16014-1054 |
from US $18.53 |
||
|
16016
|
16016
16016-1065 PLUNGER,STARTER |
16016-1065 |
from US $38.90 |
||
|
16017
|
16017
16017-1270 JET-NEEDLE |
16017-1270 |
from US $35.46 |
||
|
16021
|
16021
16021-1115 SCREW-THROTTLE STOP |
16021-1115 |
from US $74.19 |
||
|
16030
|
16030
16030-1007 FLOAT VALVE |
16030-1007 |
from US $41.28 |
||
|
16031
|
16031
16031-1056 FLOAT |
16031-1056 |
from US $36.20 |
||
|
16065
|
16065
16065-1177
HOLDER-CARBURETOR
|
16065-1177 |
— | ||
|
16073
|
16073
16073-1074 INSULATOR |
16073-1074 |
US $10.33 |
||
|
16126
|
16126
16126-1160 VALVE,VACUUM |
16126-1160 |
from US $163.06 |
||
|
16157
|
16157
16157-1056 JET-STARTER,#55 |
16157-1056 |
from US $10.43 |
||
|
16157B
|
16157B
16157-1057 JET-STARTER,#58 |
16157-1057 |
from US $17.86 |
||
|
16157C
|
16157C
16157-1058 JET-STARTER,#60 |
16157-1058 |
US $10.43 |
||
|
49006
|
49006
49006-1165 BOOT,STARTER PLUNGER |
49006-1165 |
from US $7.29 |
||
|
92002
|
92002
92002-1093 BOLT,6X25 |
92002-1093 |
from US $3.17 |
||
|
92009
|
92009
92009-1095 SCREW,DRAIN,M6X1.0 |
92009-1095 |
from US $9.35 |
||
|
92009A
|
92009A
92009-1365 SCREW |
92009-1365 |
from US $3.96 |
||
|
92022
|
92022
92022-1003 WASHER,PLAIN |
92022-1003 |
from US $2.69 |
||
|
92022A
|
92022A
92022-1480 WASHER,PLAIN,STOP SPR |
92022-1480 |
from US $3.01 |
||
|
92037
|
92037
16044-007 CLIP,FLOAT VALVE |
16044-007 |
from US $6.18 |
||
|
92037A
|
92037A
92170-1438 CLAMP |
92170-1438 |
from US $6.18 |
||
|
92037B
|
92037B
92037-1531 CLAMP,TUBE |
92037-1531 |
from US $3.33 |
||
|
92037C
|
92037C
92170-1552 CLAMP |
92170-1552 |
from US $3.11 |
||
|
92043
|
92043
92043-1148 PIN,FLOAT |
92043-1148 |
from US $4.20 |
||
|
92055
|
92055
92055-1002 O RING,PILOT ADJ |
92055-1002 |
from US $2.69 |
||
|
92055A
|
92055A
92055-1053 O RING,DRAIN SCREW |
92055-1053 |
from US $3.54 |
||
|
92055B
|
92055B
92055-1222 RING-O,FLOAT CHAMBER |
92055-1222 |
from US $11.40 |
||
|
92055C
|
92055C
92055-1295 RING-O,38MM |
92055-1295 |
from US $10.14 |
||
|
92055D
|
92055D
92055-1416 RING-O,STARTER PLUNGE |
92055-1416 |
from US $3.48 |
||
|
92059
|
92059
92059-147
HOSE,FUEL OVERFLOW
|
92059-147 |
— | ||
|
92059A
|
92059A
92059-1237 TUBE,L=350 |
92059-1237 |
from US $15.05 |
||
|
92059B
|
92059B
92059-1463 TUBE,6.5X11.5X150 |
92059-1463 |
from US $21.39 |
||
|
92063A
|
92063A
92063-1069 MAIN JET,2ND,#125 |
92063-1069 |
from US $9.82 |
||
|
92063B
|
92063B
92063-1073 MAIN JET,2ND,#122 |
92063-1073 |
from US $9.82 |
||
|
92063C
|
92063C
92063-1074 MAIN JET,2ND,#128 |
92063-1074 |
from US $8.71 |
||
|
92063F
|
92063F
92063-1075 MAIN JET,2ND,#130 |
92063-1075 |
from US $8.71 |
||
|
92063G
|
92063G
92063-1076 JET-MAIN,#132 |
92063-1076 |
from US $8.71 |
||
|
92064
|
92064
92064-1101 JET-PILOT,#35 |
92064-1101 |
from US $10.45 |
||
|
92064A
|
92064A
92064-1119 JET-PILOT |
92064-1119 |
from US $12.51 |
||
|
92064B
|
92064B
92064-1125 JET-PILOT |
92064-1125 |
US $10.57 |
||
|
92081
|
92081
92081-1002 SPRING,PIROT ADJ SCRW |
92081-1002 |
from US $3.33 |
||
|
92081A
|
92081A
92081-1617 SPRING,THROTTLE STOP |
92081-1617 |
from US $4.80 |
||
|
92081B
|
92081B
92081-1720 SPRING,PLUNGER |
92081-1720 |
from US $6.81 |
||
|
92081C
|
92081C
92081-1912 SPRING,VACUUM VALVE |
92081-1912 |
from US $17.27 |
